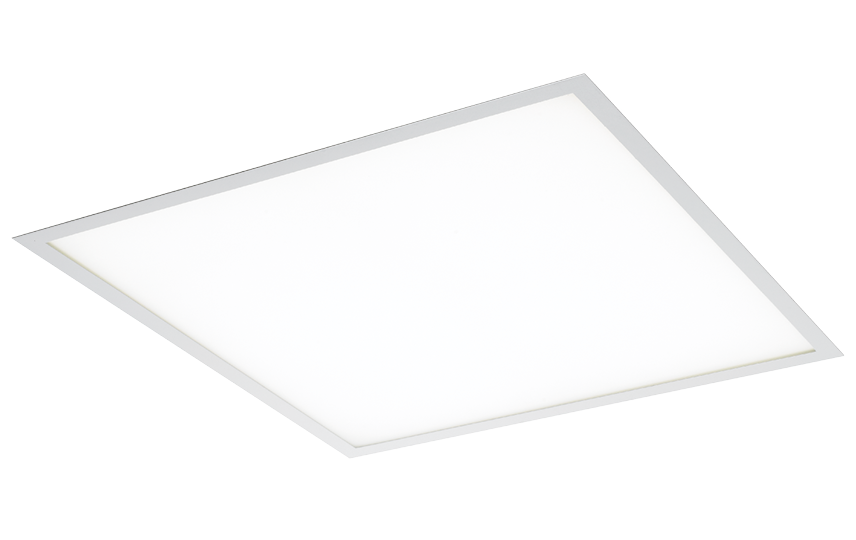

DiLED IV

DiLED IV is a for recessed mounted luminaire for most known ceiling systems in different modules. DiLED IV is suitable for office and general lighting indoor.The opal/prismatic optic front ensures a uniformly lit surface. Complete with driver and quick connection between driver and luminaire for super quick and easy mounting.Supplied with different color temperature with on/off or Dali control. Emergency units for easy connection to the luminaire as extra accessories.

Article list

DiLED IV

SDCM: 3 Class II IP20 Ra>80 L85/B10 100,000

Filters

System wattage

Lumen

Control gear

					Others	Tools
8246094827	4000K	33W	4040lm	DALI-2	122 lm/W, L595 x W595 x H60, Recessed, Indoor, Direct, 595x595, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094830	4000K	33W	4040lm	DALI-2	122 lm/W, L599 x W599 x H60, Recessed, Indoor, Direct, 599x599, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094843	4000K	33W	4040lm	DALI-2	122 lm/W, L584 x W584 x H60, Recessed, Indoor, Direct, 584x584, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094911	4000K		2240lm	DALI-2	L595 x W595 x H60, Indoor, Direct, 595x595	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094940	4000K	18W	2240lm	DALI-2	124 lm/W, L599 x W599 x H60, Recessed, Indoor, Direct, 599x599, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094979	4000K	18W	2240lm	DALI-2	124 lm/W, L584 x W584 x H60, Recessed, Indoor, Direct, 584x584, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246095004	4000K	33W	4430lm	DALI-2	134 lm/W, L595 x W595 x H60, Recessed, Indoor, Direct, 595x595, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246095020	4000K	33W	4430lm	DALI-2	134 lm/W, L599 x W599 x H60, Recessed, Indoor, Direct, 599x599, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246095046	4000K	33W	4430lm	DALI-2	134 lm/W, L584 x W584 x H60, Recessed, Indoor, Direct, 584x584, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094908	4000K		2240lm	On/Off	L595 x W595 x H60, Indoor, Direct, 595x595	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094924	4000K	33W	4040lm	On/Off	122 lm/W, L595 x W595 x H60, Recessed, Indoor, Direct, 595x595, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094937	4000K	18W	2240lm	On/Off	124 lm/W, L599 x W599 x H60, Recessed, Indoor, Direct, 599x599, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094953	4000K	33W	4040lm	On/Off	122 lm/W, L599 x W599 x H60, Recessed, Indoor, Direct, 599x599, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094966	4000K	18W	2240lm	On/Off	124 lm/W, L584 x W584 x H60, Recessed, Indoor, Direct, 584x584, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094995	4000K	33W	4430lm	On/Off	134 lm/W, L595 x W595 x H60, Recessed, Indoor, Direct, 595x595, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246095017	4000K	33W	4430lm	On/Off	134 lm/W, L599 x W599 x H60, Recessed, Indoor, Direct, 599x599, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246095033	4000K	33W	4430lm	On/Off	134 lm/W, L584 x W584 x H60, Recessed, Indoor, Direct, 584x584, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094982	4000K	33W	4040lm	On/Off	122 lm/W, L584 x W584 x H60, Recessed, Indoor, Direct, 584x584, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

					Others	Tools
8246094827	4000K	33W	4040lm	DALI-2	122 lm/W, L595 x W595 x H60, Recessed, Indoor, Direct, 595x595, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094830	4000K	33W	4040lm	DALI-2	122 lm/W, L599 x W599 x H60, Recessed, Indoor, Direct, 599x599, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094843	4000K	33W	4040lm	DALI-2	122 lm/W, L584 x W584 x H60, Recessed, Indoor, Direct, 584x584, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094911	4000K		2240lm	DALI-2	L595 x W595 x H60, Indoor, Direct, 595x595	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094940	4000K	18W	2240lm	DALI-2	124 lm/W, L599 x W599 x H60, Recessed, Indoor, Direct, 599x599, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094979	4000K	18W	2240lm	DALI-2	124 lm/W, L584 x W584 x H60, Recessed, Indoor, Direct, 584x584, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246095004	4000K	33W	4430lm	DALI-2	134 lm/W, L595 x W595 x H60, Recessed, Indoor, Direct, 595x595, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246095020	4000K	33W	4430lm	DALI-2	134 lm/W, L599 x W599 x H60, Recessed, Indoor, Direct, 599x599, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246095046	4000K	33W	4430lm	DALI-2	134 lm/W, L584 x W584 x H60, Recessed, Indoor, Direct, 584x584, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094908	4000K		2240lm	On/Off	L595 x W595 x H60, Indoor, Direct, 595x595	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094924	4000K	33W	4040lm	On/Off	122 lm/W, L595 x W595 x H60, Recessed, Indoor, Direct, 595x595, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094937	4000K	18W	2240lm	On/Off	124 lm/W, L599 x W599 x H60, Recessed, Indoor, Direct, 599x599, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094953	4000K	33W	4040lm	On/Off	122 lm/W, L599 x W599 x H60, Recessed, Indoor, Direct, 599x599, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094966	4000K	18W	2240lm	On/Off	124 lm/W, L584 x W584 x H60, Recessed, Indoor, Direct, 584x584, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094995	4000K	33W	4430lm	On/Off	134 lm/W, L595 x W595 x H60, Recessed, Indoor, Direct, 595x595, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246095017	4000K	33W	4430lm	On/Off	134 lm/W, L599 x W599 x H60, Recessed, Indoor, Direct, 599x599, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246095033	4000K	33W	4430lm	On/Off	134 lm/W, L584 x W584 x H60, Recessed, Indoor, Direct, 584x584, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094982	4000K	33W	4040lm	On/Off	122 lm/W, L584 x W584 x H60, Recessed, Indoor, Direct, 584x584, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
8249044557	625x625 White Plaster board/Troldtekt Recessed frame Sheet steel	L625 x W625 x H55	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094429	Emergencybox Driver DALI / EM Self test, DALI Emergency 3H	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094364	Emergencybox On-Off/Trailing edge / EM Self test, Emergency 3 hours	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094500	Emergencybox Driver DALI / EM DALI/Self test, Emergency 3 hours	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
