DiLED IV Linear
DiLED IV 300x1200 White 3830lm 4000K Ra>80 On/Off
- Article code
- 8246095114
- EAN
- 5703821179393
=
This article is produced by order, with an expected delivery time of 3-4 weeks
Overview
- Efficacy
- 116 lm/W
- Lumen
- 3830lm
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L85/B10
- Mounting
- Indoor
Tools
Downloads
Specification sheet
8246095114
pdf
(Opens in new tab)
Mounting instruction
Diled IV user manual
pdf
(Opens in new tab)
CE Declaration
DiLED IV Linear
pdf
(Opens in new tab)
Relux file (rolf)
5703821179393_DiLED_IV_Prism_300x1200_White_3830lm_4000K_Ra_80_On_Off
rolf
Eulumdat file (ldt)
5703821179393_DiLED IV Prism 300x1200 White 3830lm 4000K Ra80 OnOff
ldt
Dialux file (uld)
5703821179393_DiLED IV Prism 300x1200 White 3830lm 4000K Ra80 OnOff
uld
Electrical
- System wattage
- 33W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
Light technic
- Type of light source
- LED
- Luminous flux
- 3830lm
- Efficacy
- 116 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L85/B10100,000

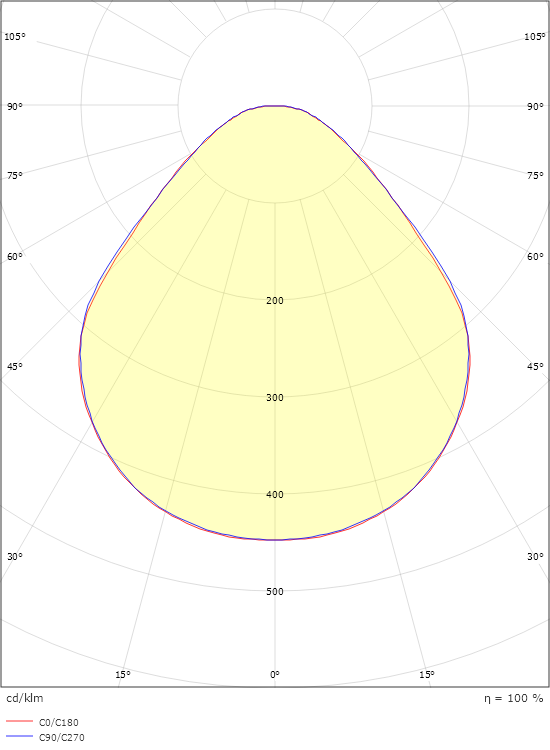

- Light distribution
- Direct
- Optic
- Prism Optic
- UGR
- UGR<19
Control/Dimming
- Type
- On/Off
Protection
- Luminaire class
- Class II
Energy and approvals
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Sheet steel
- Colour
- White
- Optics
- PMMA Polymethylmethacrylat, Aluminium
Mounting/Connection
- Mounting
- Indoor
- Module
- 300x1200 Exposed T-carrier 15/24mm
Dimensions
- Length (mm) L
- 1192
- Width (mm) W
- 292
- Height (mm) H
- 60
- Weight (kg) gross/net
- 5 / 4.8
Packaging
- Packaging dimensions (mm)
- 1235 x 305 x 100
