DiLED IV
DiLED IV 584x584 White 4040lm 4000K Ra>80 DALI-2
- Article code
- 8246094843
- EAN
- 5703821178471
=
This article is produced by order, with an expected delivery time of 3-4 weeks
Overview
- Efficacy
- 122 lm/W
- Lumen
- 4040lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L85/B10
- Mounting
- Recessed, Indoor
Tools
Downloads
Specification sheet
8246094843
pdf
(Opens in new tab)
Mounting instruction
Diled IV user manual
pdf
(Opens in new tab)
CE Declaration
DiLED IV
pdf
(Opens in new tab)
Relux file (rolf)
5703821178471_DiLED_IV_Prism_584x584_4040lm_4000K_Ra_80_DALI
rolf
Eulumdat file (ldt)
5703821178471_DiLED IV Prism 584x584 White 4040lm 4000K Ra80 DALI
ldt
Dialux file (uld)
5703821178471_DiLED IV Prism 584x584 White 4040lm 4000K Ra80 DALI
uld
Revit file - Generic
DiLED IV_584x584 - generic
rfa
Revit file - Ceiling Based
DiLED IV 584 x 584- ceiling based
rfa
Electrical
- System wattage
- 33W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 35, B16: 55, C10: 57, C16: 94
Light technic
- Type of light source
- LED
- Luminous flux
- 4040lm
- Efficacy
- 122 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L85/B10100,000

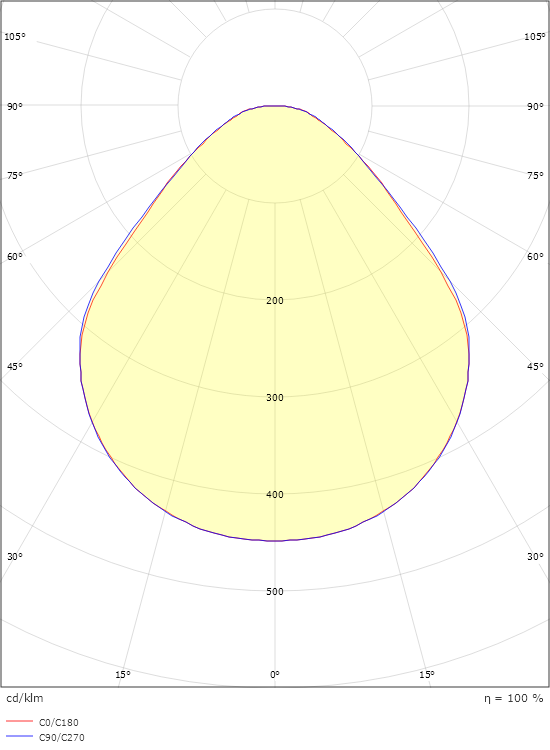

- Light distribution
- Direct
- Optic
- Prism Optic
- UGR
- UGR<19
Control/Dimming
- Type
- DALI-2
Protection
- Luminaire class
- Class II
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Sheet steel
- Colour
- White smooth (Ral 9016 gloss 30)
- Optics
- Acrylic (PMMA)
Mounting/Connection
- Mounting
- Recessed, Indoor
- Module
- 584x584 SAS 130 Alugrid Q(P)15/16
- Connection
- 5 pol Linect / screwless terminal block
Dimensions
- Length (mm) L
- 584
- Width (mm) W
- 584
- Height (mm) H
- 60
- Weight (kg) gross/net
- 5 / 4.8
Packaging
- Packaging dimensions (mm)
- 605 x 605 x 99
