DiLED IV

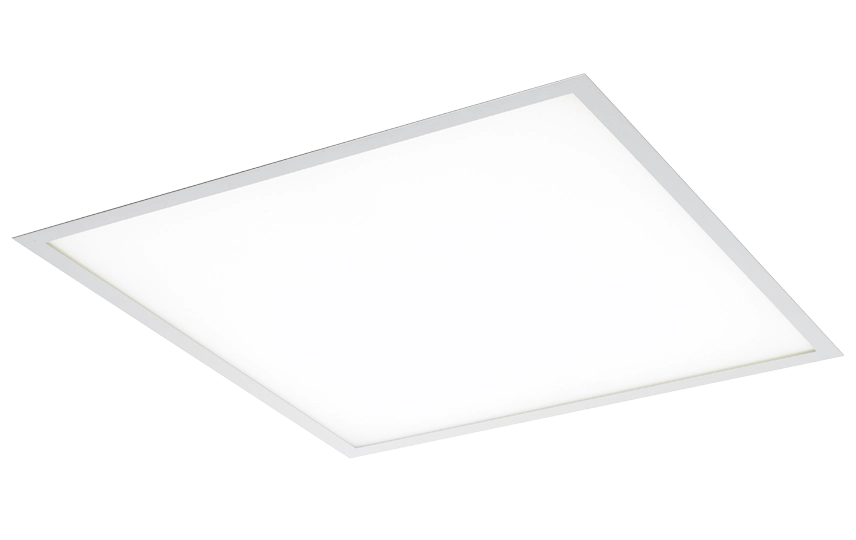

DiLED IV 595x595 White 4430lm 4000K Ra>80 On/Off

Article code
8246094995
EAN
5703821179058
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Efficacy
134 lm/W
Lumen
4430lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L85/B10
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • el
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 8246094995 Mounting instruction Diled IV user manual CE Declaration DiLED IV Relux file (rolf) 5703821179058_DiLED_IV_Opal_595x595_4430lm_4000K_Ra_80_On_Off Eulumdat file (ldt) 5703821179058_DiLED IV Opal 595x595 White 4430lm 4000K Ra80 OnOff Dialux file (uld) 5703821179058_DiLED IV Opal 595x595 White 4430lm 4000K Ra80 OnOff Revit file - Generic DiLED IV_595x595 - generic Revit file - Ceiling Based DiLED lV 595x595 - ceiling based

How to specify

Text copied to clipboard

DiLED IV 595x595 White 4430lm 4000K Ra>80 On/Off, Article code: 8246094995, EAN: 5703821179058, IP20, Electrical: System wattage: 33W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 35, B16: 55, C10: 57, C16: 94, Light technic: Type of light source: LED, Luminous flux: 4430lm, Efficacy: 134 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L85/B10100,000, Light distribution: Direct, Optic: Opal, UGR: UGR<25, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Colour: White smooth (Ral 9016 gloss 30), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Recessed, Indoor, Module: 595x595 Exposed T-carrier 15/24mm, Connection: 5 pol Linect / screwless terminal block, Dimensions: Length (mm) L: 595, Width (mm) W: 595, Height (mm) H: 60, Weight (kg) gross/net: 5 / 4.8, Packaging: Packaging dimensions (mm): 605 x 605 x 99

Electrical

System wattage
33W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 35, B16: 55, C10: 57, C16: 94

Light technic

Type of light source
LED
Luminous flux
4430lm
Efficacy
134 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L85/B10100,000

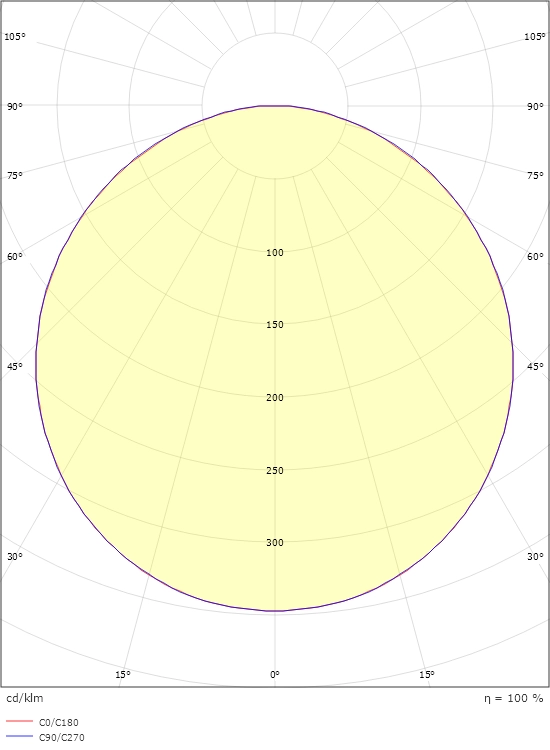

Light distribution
Direct
Optic
Opal
UGR
UGR<25

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel
Colour
White smooth (Ral 9016 gloss 30)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Recessed, Indoor
Module
595x595 Exposed T-carrier 15/24mm
Connection
5 pol Linect / screwless terminal block

Dimensions

Length (mm) L
595
Width (mm) W
595
Height (mm) H
60
Weight (kg) gross/net
5 / 4.8

Packaging

Packaging dimensions (mm)
605 x 605 x 99
