DiLED IV

DiLED Iv 595x595 White 2240lm 4000K Ra>80 DALI-2

Article code
8246094911
EAN
5703821178983
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Wattage
18W
Lumen
2240lm
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L85/B10
Mounting
Indoor
  • indoor
  • el

Tools

Downloads

Specification sheet 8246094911 Revit file - Generic DiLED IV_595x595 - generic Revit file - Ceiling Based DiLED lV 595x595 - ceiling based

See more

Eulumdat file (ldt) 5703821178983_DiLED IV Prism 595x595 White 2240lm 4000K Ra80 DALI Dialux file (uld) 5703821178983_DiLED IV Prism 595x595 White 2240lm 4000K Ra80 DALI Relux file (rolf) 5703821178983_DiLED_IV_Prism_595x595_White_2240lm_4000K_Ra_80_DALI Mounting instruction Diled IV user manual CE Declaration DiLED IV

How to specify

Text copied to clipboard

DiLED Iv 595x595 White 2240lm 4000K Ra>80 DALI-2, Article code: 8246094911, EAN: 5703821178983, Electrical: Wattage: 18W, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 2240lm, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, Lifetime: L85/B10100,000, Light distribution: Direct, Optic: Prism Optic, Control/Dimming: Type: DALI-2, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Colour: White smooth (Ral 9016 gloss 30), Mounting/Connection: Mounting: Indoor, Module: 595x595 Exposed T-carrier 15/24mm, Dimensions: Length (mm) L: 595, Width (mm) W: 595, Height (mm) H: 60

Electrical

Wattage
18W
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
2240lm
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
L85/B10100,000

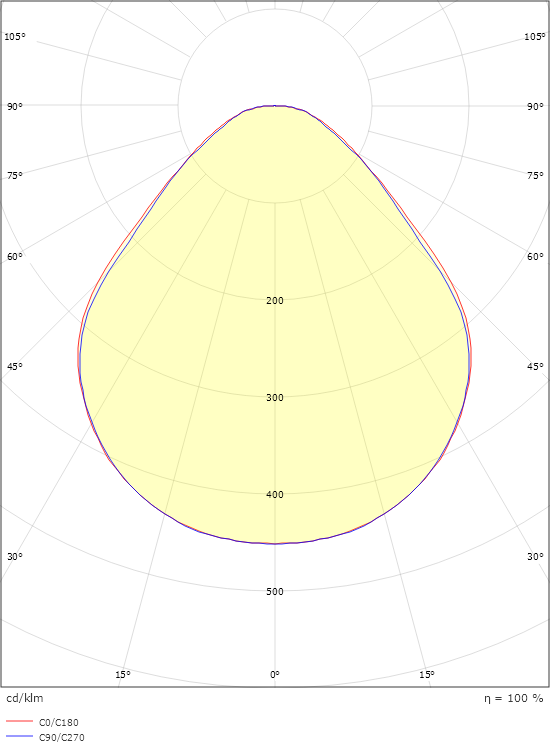

Light distribution
Direct
Optic
Prism Optic

Control/Dimming

Type
DALI-2

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Colour
White smooth (Ral 9016 gloss 30)

Mounting/Connection

Mounting
Indoor
Module
595x595 Exposed T-carrier 15/24mm

Dimensions

Length (mm) L
595
Width (mm) W
595
Height (mm) H
60
