DiLED IV

DiLED Iv 599x599 White 2240lm 4000K Ra>80 On/Off

Article code
8246094937
EAN
5703821179003
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Efficacy
124 lm/W
Lumen
2240lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L85/B10
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • el
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 8246094937 Revit file - Generic DiLED IV_599x599 - generic Revit file - Ceiling Based DiLED IV 599x599 - ceiling based

See more

Eulumdat file (ldt) 5703821179003_DiLED IV Prism 599x599 White 2240lm 4000K Ra80 OnOff Dialux file (uld) 5703821179003_DiLED IV Prism 599x599 White 2240lm 4000K Ra80 OnOff Relux file (rolf) 5703821179003_DiLED_IV_Prism_599x599_White_2240lm_4000K_Ra_80_On_Off Mounting instruction Diled IV user manual CE Declaration DiLED IV

How to specify

Text copied to clipboard

DiLED Iv 599x599 White 2240lm 4000K Ra>80 On/Off, Article code: 8246094937, EAN: 5703821179003, IP20, Electrical: System wattage: 18W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 20, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 2240lm, Efficacy: 124 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L85/B10100,000, Light distribution: Direct, Optic: Prism Optic, UGR: UGR<19, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Colour: White smooth (Ral 9016 gloss 30), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Recessed, Indoor, Module: 599x599 C, Clip-in Ceiling, Connection: 5 pol Linect / screwless terminal block, Dimensions: Length (mm) L: 599, Width (mm) W: 599, Height (mm) H: 60, Weight (kg) gross/net: 5 / 4.8, Packaging: Packaging dimensions (mm): 605 x 605

Electrical

System wattage
18W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 20, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
2240lm
Efficacy
124 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L85/B10100,000

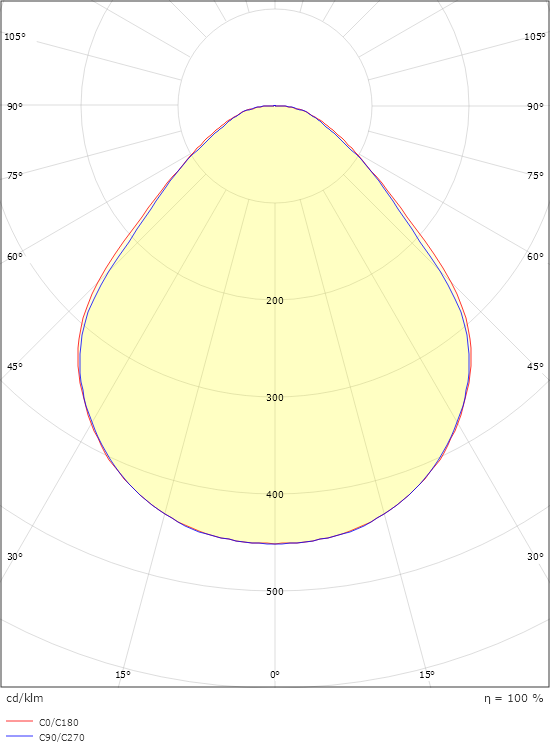

Light distribution
Direct
Optic
Prism Optic
UGR
UGR<19

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel
Colour
White smooth (Ral 9016 gloss 30)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Recessed, Indoor
Module
599x599 C, Clip-in Ceiling
Connection
5 pol Linect / screwless terminal block

Dimensions

Length (mm) L
599
Width (mm) W
599
Height (mm) H
60
Weight (kg) gross/net
5 / 4.8

Packaging

Packaging dimensions (mm)
605 x 605
