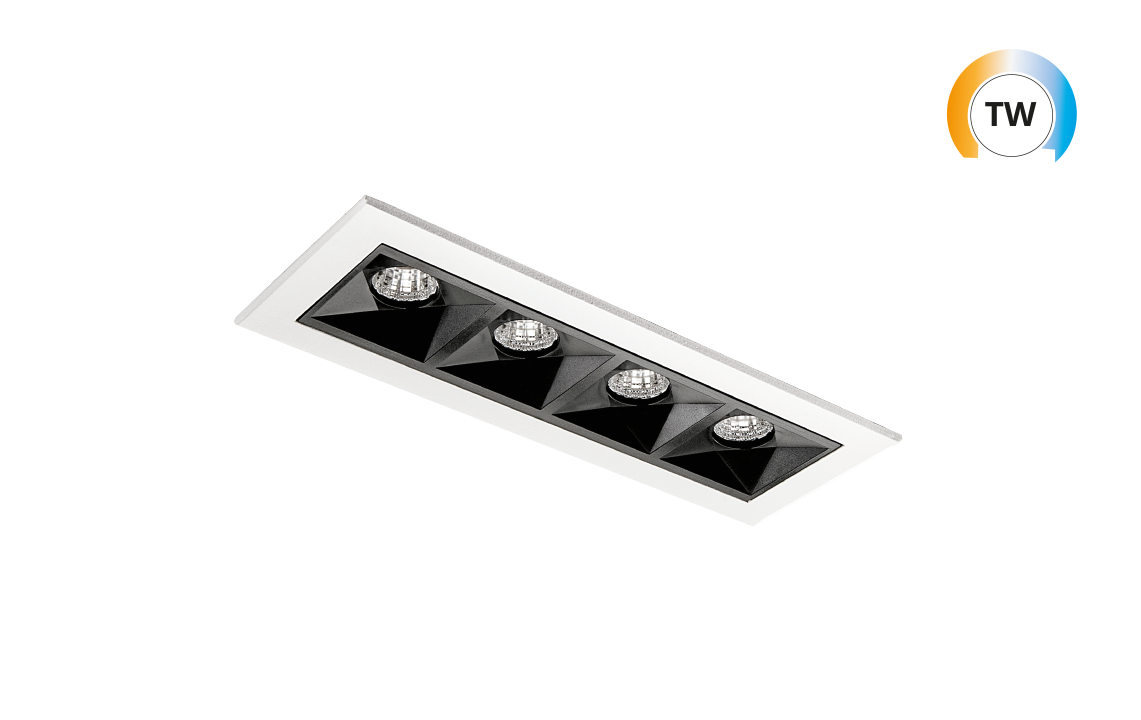

Inspire R TW

Inspire R White 150 500lm (@4000K) 2000-4000K Ra>90 TW LEDDim

Article code
212439
EAN
7021982124396
Back to articlelist

Overview

Efficacy
50 lm/W
Lumen
500lm (@4000K)
IP Class
IP20
Colour temperature
2000-4000K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L90/B10>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • isosafe
  • dipswitch
  • ip20
  • klasse_2
  • selv
  • tw
  • ce

Tools

Downloads

Specification sheet 212439 Mounting instruction Inspire R150 TW_User Manual EPD NEPD-11152-11104_Inspire-R-150-TW CE Declaration Inspire R TW Relux file (rolf) 7021982124396_Inspire_R_White_150_330lm_(@2000K)_2000-4000K_Ra90_Tunable_White_LEDDim Relux file (rolf) 7021982124396_Inspire_R_White_150_500lm_(@4000K)_2000-4000K_Ra90_Tunable_White_LEDDim Eulumdat file (ldt) 7021982124396_Inspire R White 150 330lm (@ 2000K) 2000-4000K Ra90 Tunable White LEDDim Eulumdat file (ldt) 7021982124396_Inspire R White 150 500lm (@ 4000K) 2000-4000K Ra90 Tunable White LEDDim Dialux file (uld) 7021982124396_Inspire R White 150 330lm (@ 2000K) 2000-4000K Ra90 Tunable White LEDDim Dialux file (uld) 7021982124396_Inspire R White 150 500lm (@ 4000K) 2000-4000K Ra90 Tunable White LEDDim Revit file - Generic Inspire R 150 TW - generic Revit file - Ceiling Based Inspire R 150 TW - ceiling based

How to specify

Text copied to clipboard

Inspire R White 150 500lm (@4000K) 2000-4000K Ra>90 TW LEDDim, Article code: 212439, EAN: 7021982124396, IP20, Electrical: System wattage: 10W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 74, B16: 118, C10: 74, C16: 118, Light technic: Type of light source: LED, Luminous flux: 500lm (@4000K), Efficacy: 50 lm/W, Colour temperature: 2000-4000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Lens, Beam angle: 55°, Visible flicker (PstLM): 0.2, Stroboscopic flicker (SVM): 0.07, Photobiological safety: RG 1, Control/Dimming: Type: TW LEDDim, Protection: Luminaire class: Class II SELV, IP Class: IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Mounting/Connection: Mounting: Recessed, Indoor, Module: Recessed, Connection: Screwless terminal block, Dimensions: Length (mm) L: 163, Width (mm) W: 62, Height (mm) H: 40, Weight (kg) gross/net: 0.424 / 0.31, Packaging: Packaging dimensions (mm): 177 x 121 x 73

Electrical

System wattage
10W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 74, B16: 118, C10: 74, C16: 118

Light technic

Type of light source
LED
Luminous flux
500lm (@4000K)
Efficacy
50 lm/W
Colour temperature
2000-4000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000

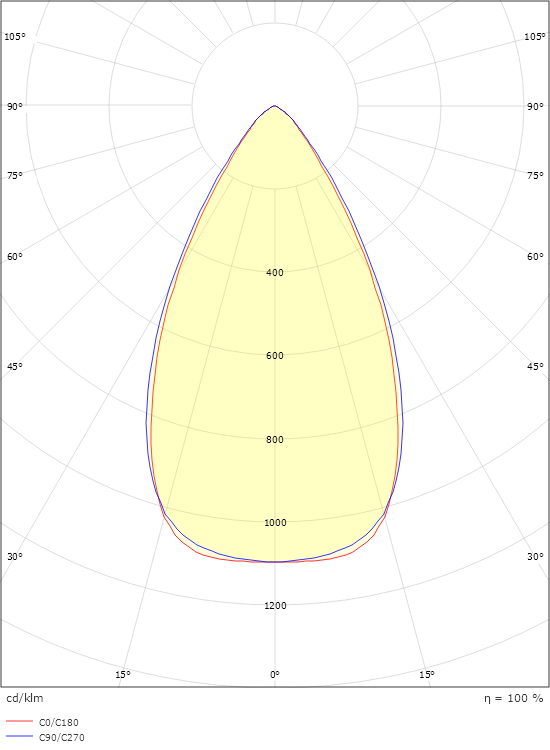

Light distribution
Direct
Optic
Lens
Beam angle
55°
Visible flicker (PstLM)
0.2
Stroboscopic flicker (SVM)
0.07
Photobiological safety
RG 1

Control/Dimming

Type
TW LEDDim

Protection

Luminaire class
Class II SELV
IP Class
IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)

Mounting/Connection

Mounting
Recessed, Indoor
Module
Recessed
Connection
Screwless terminal block

Dimensions

Length (mm) L
163
Width (mm) W
62
Height (mm) H
40
Weight (kg) gross/net
0.424 / 0.31

Packaging

Packaging dimensions (mm)
177 x 121 x 73
