Inspire R TW

Inspire R White 300 1080lm (@6500K) 2700-6500K Ra>90 TW DALI Type 8

Article code
212451
EAN
7021982124518
Back to articlelist

Overview

Efficacy
64 lm/W
Lumen
1080lm (@6500K)
IP Class
IP20
Colour temperature
2700-6500K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L90/B10>
Mounting
Recessed, Indoor
  • indoor
  • el
  • ip20
  • klasse_2
  • selv
  • tw
  • ce

Tools

Downloads

Specification sheet 212451 Mounting instruction Inspire R300 TW Dali_User Manual EPD NEPD-11313-11269_Inspire-R-300-TW-Dali CE Declaration Inspire R TW Relux file (rolf) 7021982124518_Inspire_R_White_300_1080lm_(@6500K)_2700-6500K_Ra90_Tunable_White_DALI_Type_8 Relux file (rolf) 7021982124518_Inspire_R_White_300_900lm_(@2700K)_2700-6500K_Ra90_Tunable_White_DALI_Type_8 Eulumdat file (ldt) 7021982124518_Inspire R White 300 1080lm (@6500K) 2700-6500K Ra90 Tunable White DALI Type 8 Eulumdat file (ldt) 7021982124518_Inspire R White 300 900lm (@2700K) 2700-6500K Ra90 Tunable White DALI Type 8 Dialux file (uld) 7021982124518_Inspire R White 300 1080lm (@6500K) 2700-6500K Ra90 Tunable White DALI Type 8 Dialux file (uld) 7021982124518_Inspire R White 300 900lm (@2700K) 2700-6500K Ra90 Tunable White DALI Type 8 Revit file - Generic Inspire R 300 TW - generic Revit file - Ceiling Based Inspire R 300 TW - ceiling based

How to specify

Text copied to clipboard

Inspire R White 300 1080lm (@6500K) 2700-6500K Ra>90 TW DALI Type 8, Article code: 212451, EAN: 7021982124518, IP20, Electrical: System wattage: 17W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 22, B16: 36, C10: 37, C16: 61, Light technic: Type of light source: LED, Luminous flux: 1080lm (@6500K), Efficacy: 64 lm/W, Colour temperature: 2700-6500K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Lens, Beam angle: 55°, Photobiological safety: RG 1, Control/Dimming: Type: TW DALI Type 8, Protection: Luminaire class: Class II SELV, IP Class: IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Mounting/Connection: Mounting: Recessed, Indoor, Module: Recessed, Connection: 5 pol Linect / screwless terminal block, Dimensions: Length (mm) L: 303, Width (mm) W: 62, Height (mm) H: 40, Weight (kg) gross/net: 0.78 / 0.515, Packaging: Packaging dimensions (mm): 317 x 135 x 50

Electrical

System wattage
17W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 22, B16: 36, C10: 37, C16: 61

Light technic

Type of light source
LED
Luminous flux
1080lm (@6500K)
Efficacy
64 lm/W
Colour temperature
2700-6500K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000

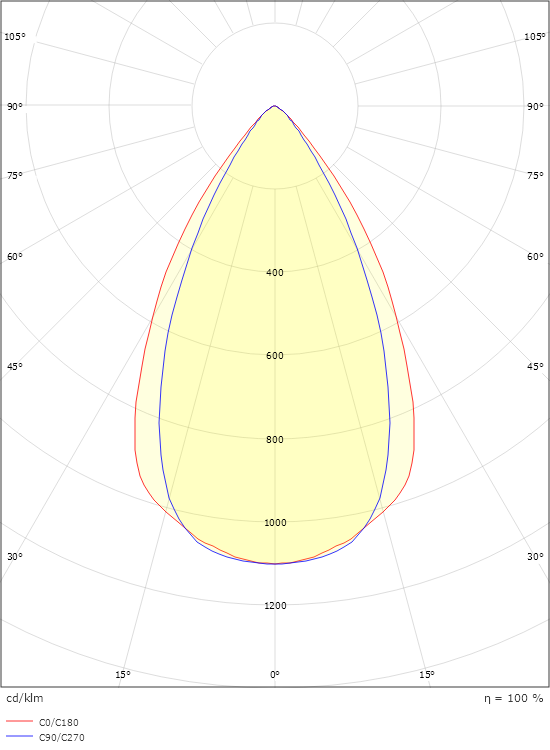

Light distribution
Direct
Optic
Lens
Beam angle
55°
Photobiological safety
RG 1

Control/Dimming

Type
TW DALI Type 8

Protection

Luminaire class
Class II SELV
IP Class
IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)

Mounting/Connection

Mounting
Recessed, Indoor
Module
Recessed
Connection
5 pol Linect / screwless terminal block

Dimensions

Length (mm) L
303
Width (mm) W
62
Height (mm) H
40
Weight (kg) gross/net
0.78 / 0.515

Packaging

Packaging dimensions (mm)
317 x 135 x 50
