Junistar Bio

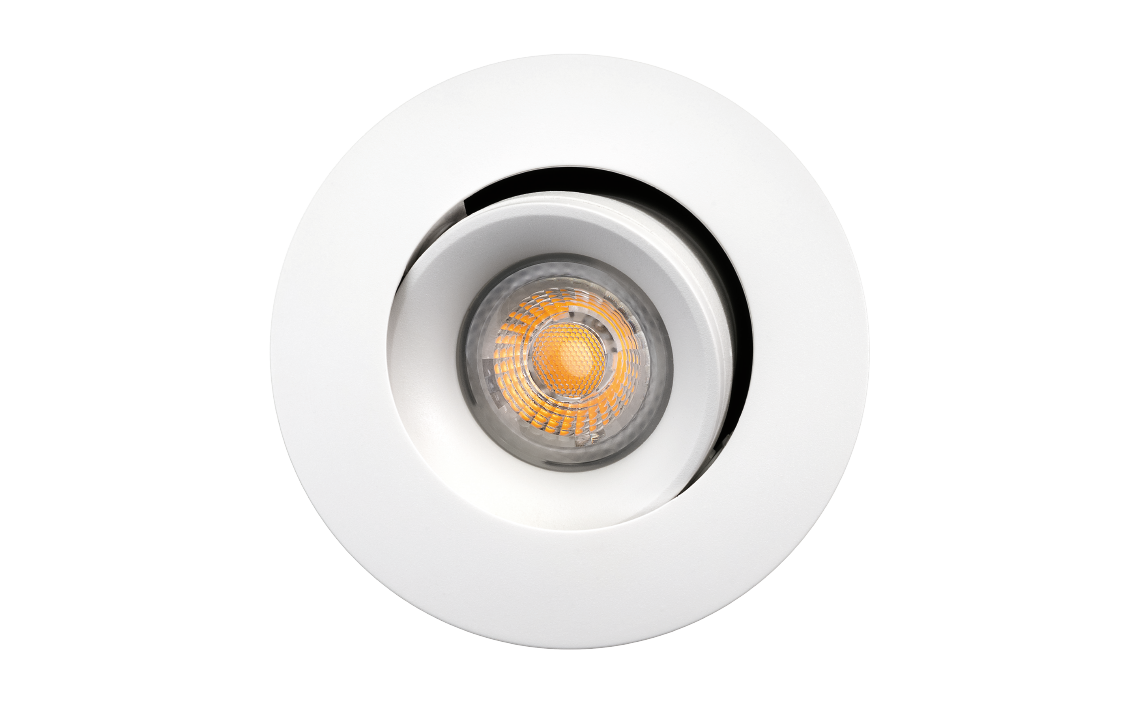

Junistar Bio White 540lm 4000K Ra>90 Trailing edge

Article code
905252
EAN
7021989052524
Back to articlelist

Overview

Wattage
5W
Efficacy
108 lm/W
Lumen
540lm
IP Class
IP44/IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L80/B20>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • isosafe
  • flickerfree
  • ip44ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 905252 Revit file - Generic Junistar Bio - generic Revit file - Face Based Junistar Bio - ceiling based

See more

Eulumdat file (ldt) 7021989052524_Junistar Bio White 540lm 4000K Ra90 Trailing edge dimming Dialux file (uld) 7021989052524_Junistar Bio White 540lm 4000K Ra90 Trailing edge dimming Relux file (rolf) 7021989052524_Junistar_Bio_White_540lm_4000K_Ra_90_Trailing_edge_dimming EPD NEPD-6964-6353_Junistar-Bio Mounting instruction Junistar BIO_User manual CE Declaration Junistar Bio

How to specify

Text copied to clipboard

Junistar Bio White 540lm 4000K Ra>90 Trailing edge, Article code: 905252, EAN: 7021989052524, IP44/IP20, Electrical: Wattage: 5W, System wattage: 5W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 70, B16: 112, C10: 116, C16: 190, Light technic: Type of light source: LED, Light source included: Yes, Luminous flux: 540lm, Efficacy: 108 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L80/B20>50,000, Light distribution: Direct, Optic: Lens, Beam angle: 45°, UGR: UGR<22, Visible flicker (PstLM): 0, Stroboscopic flicker (SVM): 0, Photobiological safety: RG 1, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP44/IP20, Energy and approvals: Contains light source of energy class: F, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Polycarbonat (PC), Mounting/Connection: Mounting: Recessed, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 59, Diameter (mm) D: 94, Cut-out (mm): 83, Weight (kg) gross/net: 0.188 / 0.188, Packaging: Packaging dimensions (mm): 94 x 94 x 59, Number per pack: 8

Electrical

Wattage
5W
System wattage
5W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 70, B16: 112, C10: 116, C16: 190

Light technic

Type of light source
LED
Light source included
Yes
Luminous flux
540lm
Efficacy
108 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L80/B20>50,000
Light distribution
Direct
Optic
Lens
Beam angle
45°
UGR
UGR<22
Visible flicker (PstLM)
0
Stroboscopic flicker (SVM)
0
Photobiological safety
RG 1

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP44/IP20

Energy and approvals

Contains light source of energy class
F
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Polycarbonat (PC)

Mounting/Connection

Mounting
Recessed, Indoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
59
Diameter (mm) D
94
Cut-out (mm)
83
Weight (kg) gross/net
0.188 / 0.188

Packaging

Packaging dimensions (mm)
94 x 94 x 59
Number per pack
8
