Junistar Exclusive

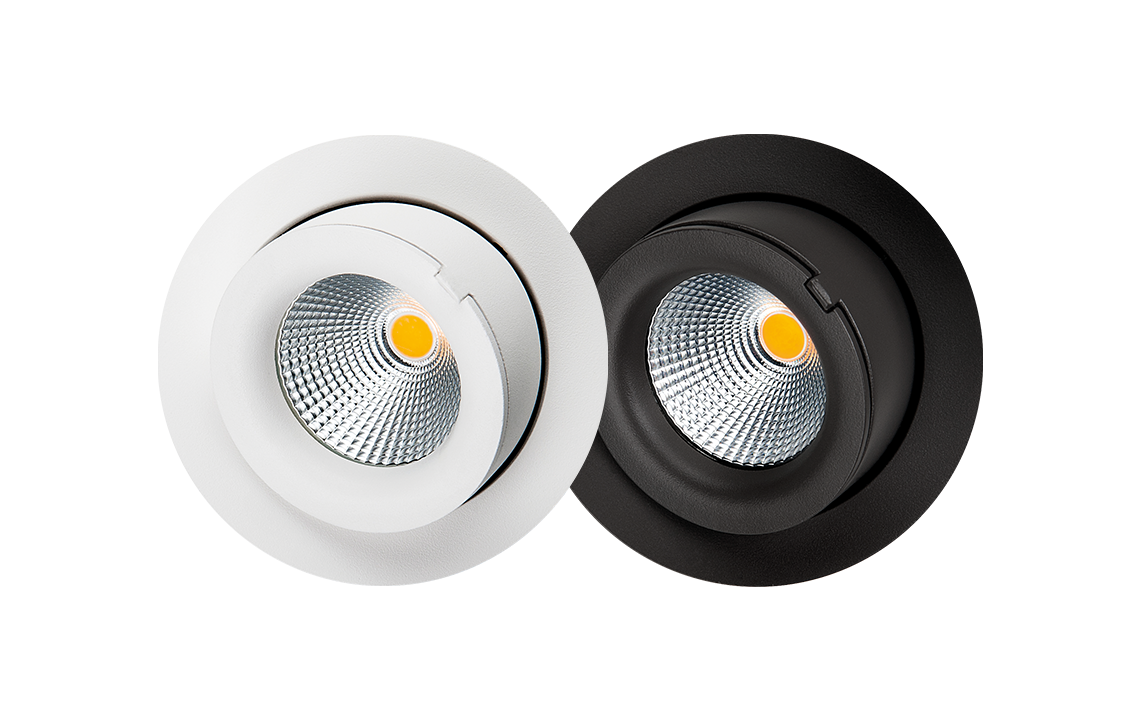

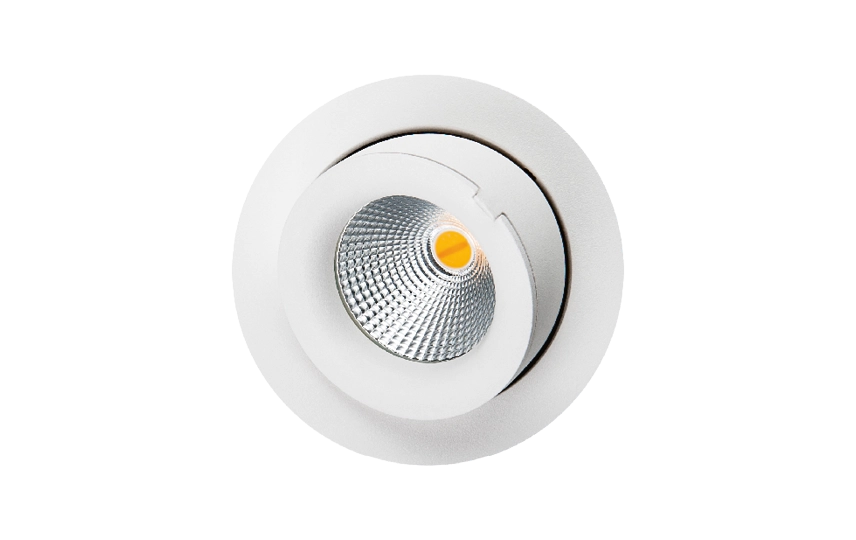

Attractive downlight for indoor use, particularly well suited to sloping walls and effect lighting via the unique 40-degree trunk tip. Well integrated LED chip and associated dimmable driver. Made of die-cast powder-coated aluminium or brushed steel, glass diffuser. 42-degre beam angle angle. Low recessed downlight with hole size Ø83mm

Article list

Junistar Exclusive

Direct Recessed SDCM: 3, 2 Class II SELV IP44/IP20 Ra>95 Beam angle: 42°

Filters

Colour temperature

System wattage

Lumen

					Others	Tools
903208	2000-2800K	8W	540lm	Trailing edge	Indoor, Outdoor, 68 lm/W, Ø94 x H53, DimToWarm, Screwless terminal block, L90/B10> 50,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903203	2700K	11W	640lm	Trailing edge	Indoor, Outdoor, 58 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903202	2700K	10.9W	680lm	Trailing edge	Indoor, 62 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903204	2700K	10.9W	650lm	Trailing edge	Indoor, Outdoor, 60 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903201	2700K	11W	730lm	Trailing edge	Indoor, Outdoor, 66 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903303	3000K	10.9W	660lm	Trailing edge	Indoor, Outdoor, 61 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903302	3000K	10.9W	700lm	Trailing edge	Indoor, 64 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903304	3000K	10.9W	680lm	Trailing edge	Indoor, Outdoor, 62 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903301	3000K	11W	760lm	Trailing edge	Indoor, Outdoor, 69 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903403	4000K	10.9W	730lm	Trailing edge	Indoor, Outdoor, 67 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903402	4000K	10.9W	780lm	Trailing edge	Indoor, 72 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903404	4000K	10.9W	750lm	Trailing edge	Indoor, Outdoor, 69 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903401	4000K	10.9W	840lm	Trailing edge	Indoor, Outdoor, 77 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

					Others	Tools
903208	2000-2800K	8W	540lm	Trailing edge	Indoor, Outdoor, 68 lm/W, Ø94 x H53, DimToWarm, Screwless terminal block, L90/B10> 50,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903203	2700K	11W	640lm	Trailing edge	Indoor, Outdoor, 58 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903202	2700K	10.9W	680lm	Trailing edge	Indoor, 62 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903204	2700K	10.9W	650lm	Trailing edge	Indoor, Outdoor, 60 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903201	2700K	11W	730lm	Trailing edge	Indoor, Outdoor, 66 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903303	3000K	10.9W	660lm	Trailing edge	Indoor, Outdoor, 61 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903302	3000K	10.9W	700lm	Trailing edge	Indoor, 64 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903304	3000K	10.9W	680lm	Trailing edge	Indoor, Outdoor, 62 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903301	3000K	11W	760lm	Trailing edge	Indoor, Outdoor, 69 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903403	4000K	10.9W	730lm	Trailing edge	Indoor, Outdoor, 67 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903402	4000K	10.9W	780lm	Trailing edge	Indoor, 72 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903404	4000K	10.9W	750lm	Trailing edge	Indoor, Outdoor, 69 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903401	4000K	10.9W	840lm	Trailing edge	Indoor, Outdoor, 77 lm/W, L121 x W94 x H55, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
9143	Rehab Ring Black 133mm for Junistar, Uniled, Soft & Jupiter Stainless steel	L133 x W133 x H4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9236	Rehab Ring Black 180mm for Junistar, Uniled, Soft & Jupiter Stainless steel	Ø180 x H45	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9973	Rehab Ring Brushed steel 133mm for Junistar, Uniled, Soft & Jupiter Stainless steel	Ø133 x H4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9233	Rehab Ring Graphite 133mm for Junistar, Uniled, Soft & Jupiter Stainless steel	L133 x W133 x H4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9234	Rehab Ring Graphite 180mm for Junistar, Uniled, Soft & Jupiter Stainless steel	Ø180 x H45	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9327	Rehab Ring Graphite 250mm for Junistar, Uniled, Soft & Jupiter Stainless steel	Ø250 x H45	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9223	Rehab Ring White 133mm for Junistar, Uniled, Soft & Jupiter Stainless steel	L133 x W133 x H4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9224	Rehab Ring White 180mm for Junistar, Uniled, Soft & Jupiter Stainless steel	Ø180 x H45	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9227	Rehab Ring White 250mm for Junistar, Uniled, Soft & Jupiter Stainless steel	Ø250 x H45	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
820489	Sensor Dim Box White 200VA 200VA	L220 x W75 x H34	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094429	Emergencybox Driver DALI / EM Self test, DALI Emergency 3H	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
820090	Emergencybox Adapter kit for downlight	L250 x W13 x H13	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
900118	Concrete Box	L262 x W111 x H111	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094364	Emergencybox On-Off/Trailing edge / EM Self test, Emergency 3 hours	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094500	Emergencybox Driver DALI / EM DALI/Self test, Emergency 3 hours	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
