Junistar Exclusive

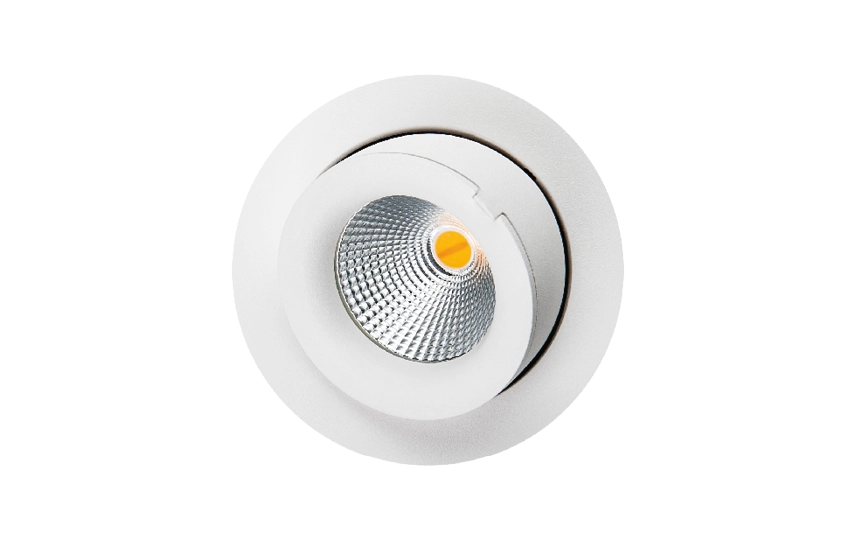

Junistar Exclusive In/Outdoor White DimToWarm 540lm 2000-2800K Ra>95 Trailing edge

Article code: 903208
EAN: 7021989032083

Back to articlelist

Overview

Wattage: 8W
Efficacy: 68 lm/W
Lumen: 540lm
IP Class: IP44/IP20
Colour temperature: 2000-2800K
Colour rendering (Ra): Ra>95

Lifetime: 50,000 L90/B10>
Mounting: Recessed, Indoor / Outdoor

5 years corrosion warranty

5 years Warranty

Tools

Downloads

Specification sheet Revit file - Generic Revit file - Ceiling Based

See more

Mounting instruction Eulumdat file (ldt) Dialux file (uld) Relux file (rolf) CE Declaration

Electrical

Wattage: 8W
System wattage: 8W
Voltage: 220-240V
Max. luminaires per circuit breaker: B10: 19, B16: 30, C10: 31, C16: 51

Light technic

Type of light source: LED
Luminous flux: 540lm
Efficacy: 68 lm/W
Colour temperature: 2000-2800K
Colour rendering (Ra): Ra>95
MacAdams factor: SDCM: 3
Lifetime: L90/B10>50,000

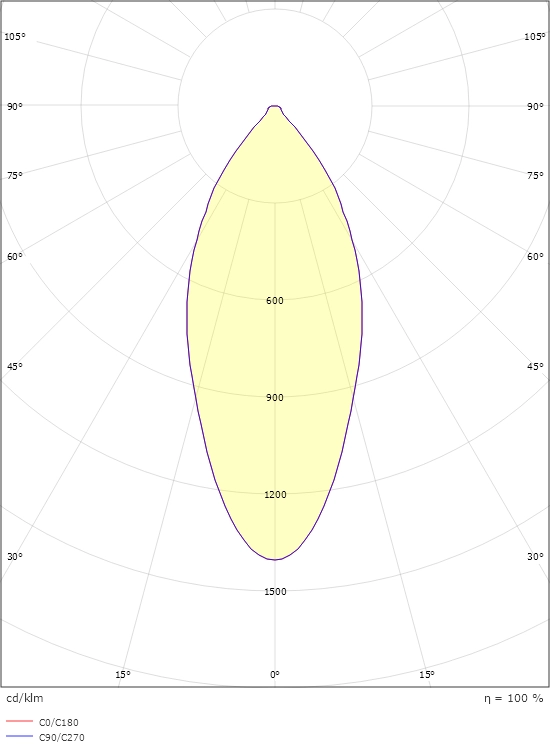

Light distribution: Direct
Optic: Reflector
Beam angle: 42°

Control/Dimming

Type: Trailing edge

Protection

Luminaire class: Class II SELV
IP Class: IP44/IP20

Energy and approvals

Contains light source of energy class: F
Breeam: Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing: Aluminium
Colour: Matte white (RAL 9003)
Optics: Tempered glass

Mounting/Connection

Mounting: Recessed, Indoor / Outdoor
Connection: Screwless terminal block

Dimensions

Height (mm) H: 53
Diameter (mm) D: 94
Cut-out (mm): 83
Weight (kg) gross/net: 0.672 / 0.56

Packaging

Packaging dimensions (mm): 130 x 115 x 95
