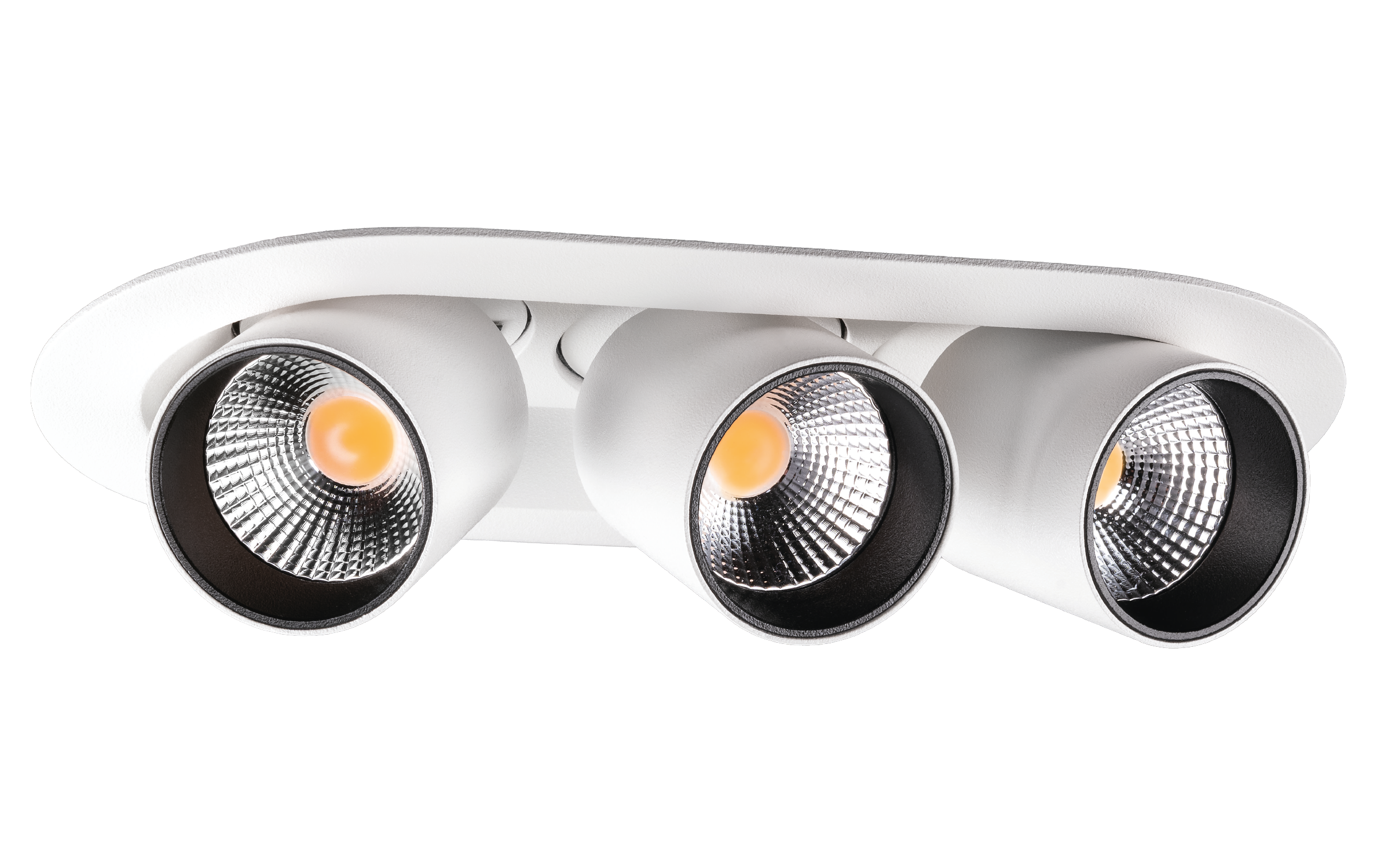

Junistar Tube Round

Junistar Tube Round White 3X 1130lm 4000K Ra>90 Trailing edge

SG code
902714
EAN
7021989027140
Back to articlelist

Overview

Efficacy
75 lm/W
Lumen
1130lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L90/B10>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • flickerfree
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 902714 Mounting instruction 251104_Junistar Tube Square Round X3_User Manual EPD NEPD-14849-15575_Junistar-Tube-Round-3x CE Declaration Junistar Tube Round Relux file (rolf) 7021989027140_Junistar_Tube_Round_White_3X_1130lm_4000K_Ra_90_Trailing_edge Eulumdat file (ldt) 7021989027140_Junistar Tube Round White 3X 1130lm 4000K Ra90 Trailing edge Dialux file (uld) 7021989027140_Junistar Tube Round White 3X 1130lm 4000K Ra90 Trailing edge

How to specify

Text copied to clipboard

Junistar Tube Round White 3X 1130lm 4000K Ra>90 Trailing edge, Article code: 902714, EAN: 7021989027140, IP20, Electrical: System wattage: 15W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 19, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 1130lm, Efficacy: 75 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Maximum ambient temperature: 25°C, Light distribution: Direct, Optic: Reflector, Beam angle: 36°, UGR: UGR<19, Visible flicker (PstLM): 0,07, Stroboscopic flicker (SVM): 0,03, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Mounting/Connection: Mounting: Recessed, Indoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 184, Width (mm) W: 94, Height (mm) H: 56, Cut-out (mm): 83, Weight (kg) gross/net: 0.86 / 0.722, Packaging: Packaging dimensions (mm): 240 x 115 x 65

Electrical

System wattage
15W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 19, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
1130lm
Efficacy
75 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000
Maximum ambient temperature
25°C

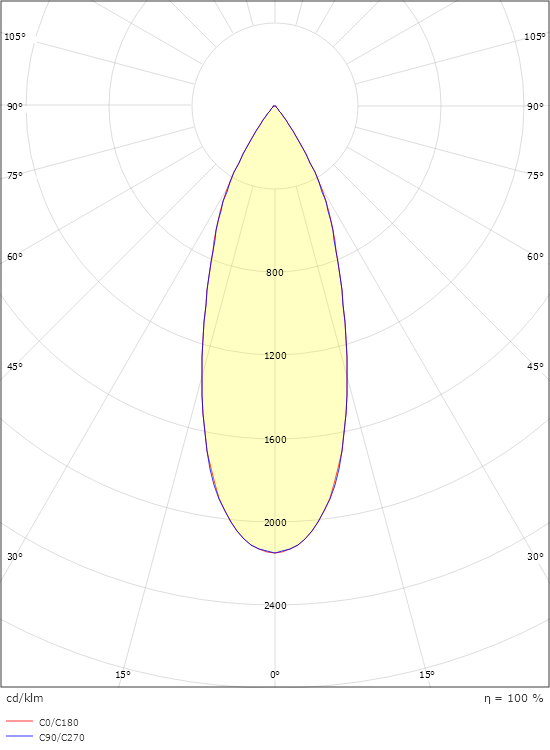

Light distribution
Direct
Optic
Reflector
Beam angle
36°

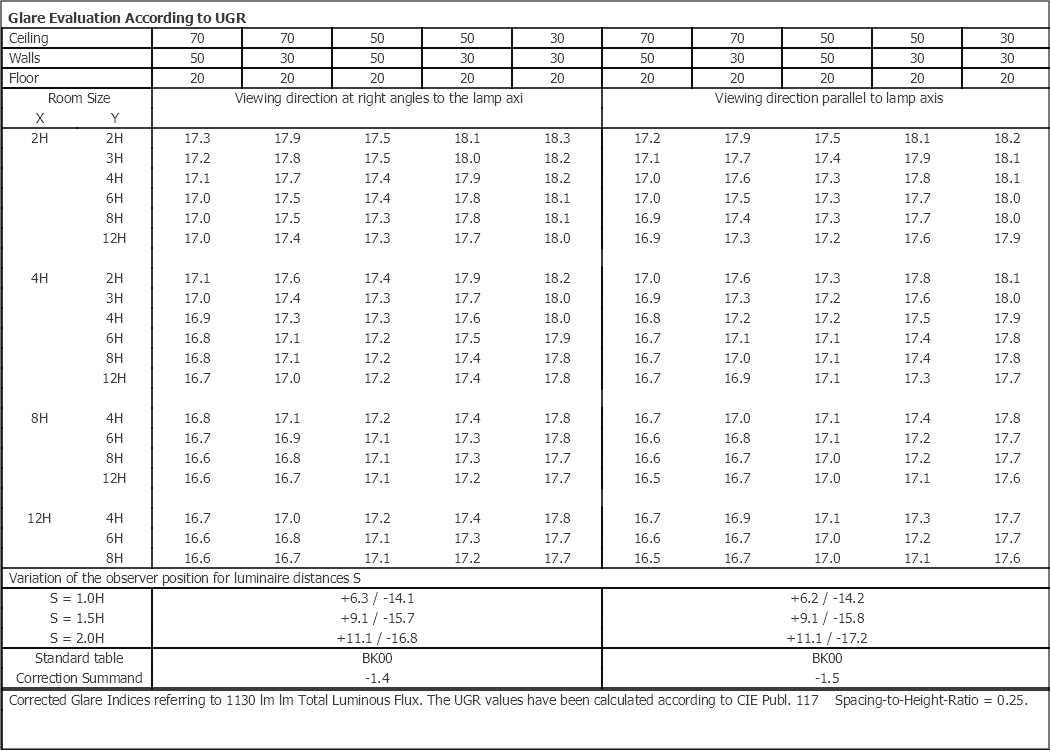

UGR
UGR<19
Visible flicker (PstLM)
0,07
Stroboscopic flicker (SVM)
0,03

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium

Mounting/Connection

Mounting
Recessed, Indoor
Connection
Screwless terminal block

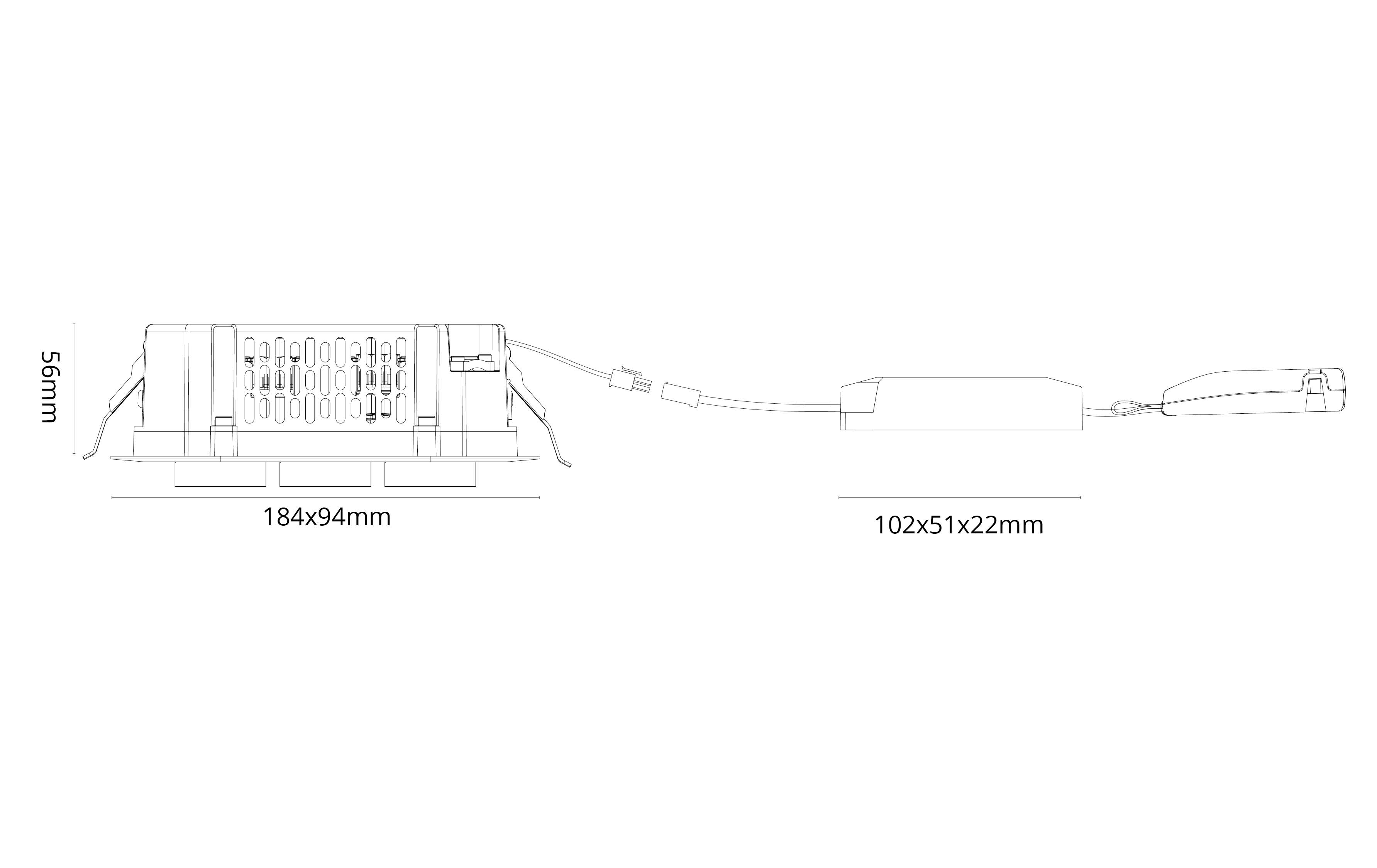

Dimensions

Length (mm) L
184
Width (mm) W
94
Height (mm) H
56
Cut-out (mm)
83
Weight (kg) gross/net
0.86 / 0.722

Packaging

Packaging dimensions (mm)
240 x 115 x 65
