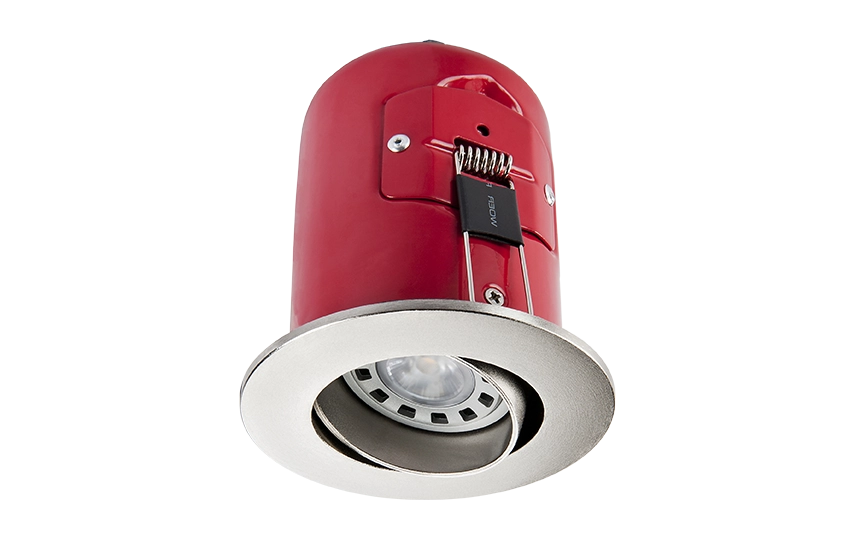

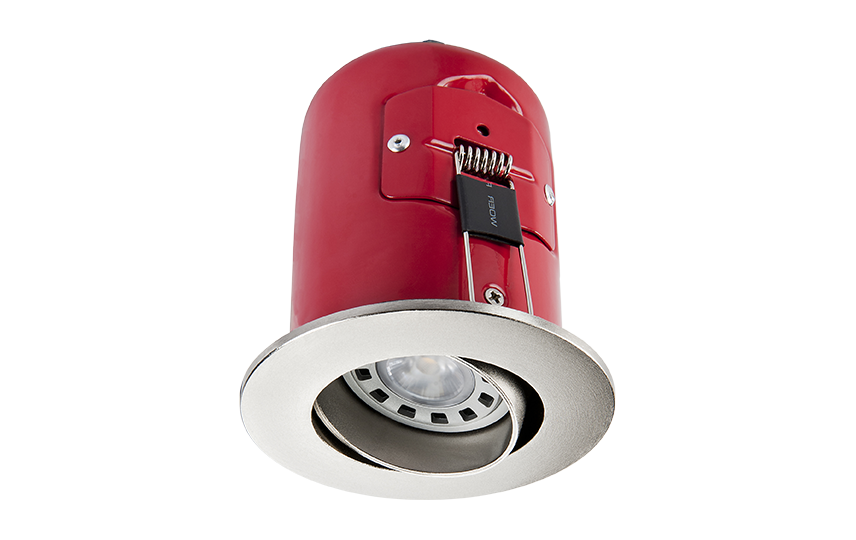

Jupiter Firerated

Jupiter Firerated Brushed steel 350lm 2700K Ra>80 Trailing edge

Article code
997420
EAN
7021989974208
Back to articlelist

Overview

Efficacy
64 lm/W
Lumen
350lm
IP Class
IP23
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L70/B50>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip23
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 997420 Eulumdat file (ldt) 7021989974208_Jupiter FireRated Brushed Steel 5.5W LED Revit file - Generic Jupiter Firerated - Generic

See more

Revit file - Ceiling Based Jupiter Firerated - ceiling based Mounting instruction Jupiter Fire Rated_User manual CE Declaration Jupiter Firerated

How to specify

Text copied to clipboard

Jupiter Firerated Brushed steel 350lm 2700K Ra>80 Trailing edge, Article code: 997420, EAN: 7021989974208, IP23, Electrical: System wattage: 5.5W, Voltage: 220-240V, Light technic: Type of light source: LED, Socket: GU10, Light source included: Yes, Luminous flux: 350lm, Efficacy: 64 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 4, Lifetime: L70/B50>50,000, Light distribution: Direct, Beam angle: 25°, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP23, Energy and approvals: Contains light source of energy class: F, Materials and finish: Housing: Steel, Colour: Brushed steel, Mounting/Connection: Mounting: Recessed, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 116, Diameter (mm) D: 100, Cut-out (mm): 83, Ceiling void depth (mm): 114, Distance to flammable materials: 50mm, Weight (kg) gross/net: 0.552 / 0.46, Packaging: Packaging dimensions (mm): 125 x 110 x 100

Electrical

System wattage
5.5W
Voltage
220-240V

Light technic

Type of light source
LED
Socket
GU10
Light source included
Yes
Luminous flux
350lm
Efficacy
64 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 4
Lifetime
L70/B50>50,000

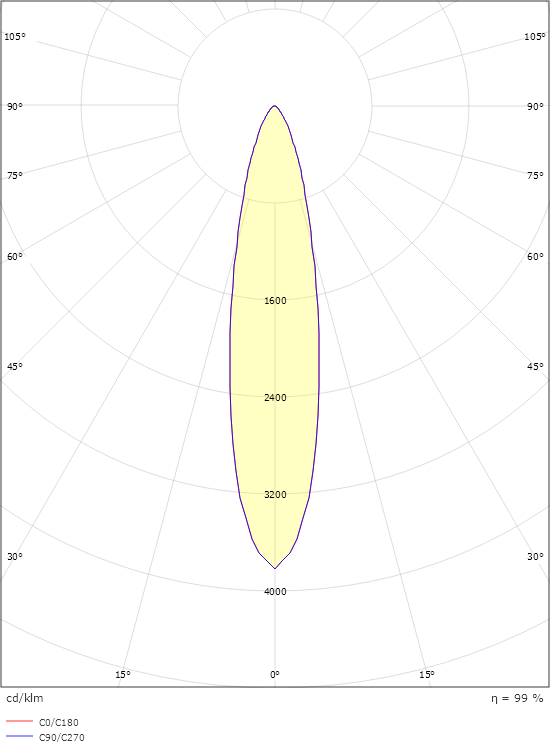

Light distribution
Direct
Beam angle
25°

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP23

Energy and approvals

Contains light source of energy class
F

Materials and finish

Housing
Steel
Colour
Brushed steel

Mounting/Connection

Mounting
Recessed, Indoor
Connection
Screwless terminal block

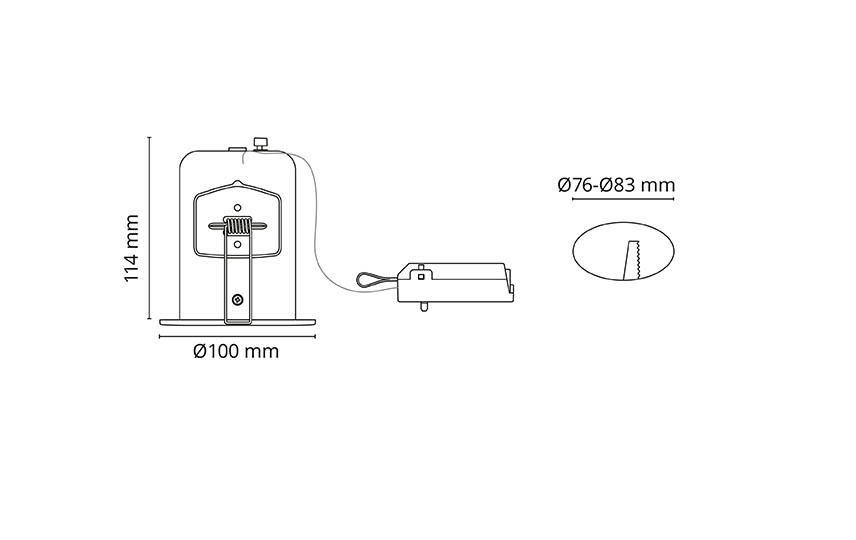

Dimensions

Height (mm) H
116
Diameter (mm) D
100
Cut-out (mm)
83
Ceiling void depth (mm)
114
Distance to flammable materials
50mm
Weight (kg) gross/net
0.552 / 0.46

Packaging

Packaging dimensions (mm)
125 x 110 x 100
