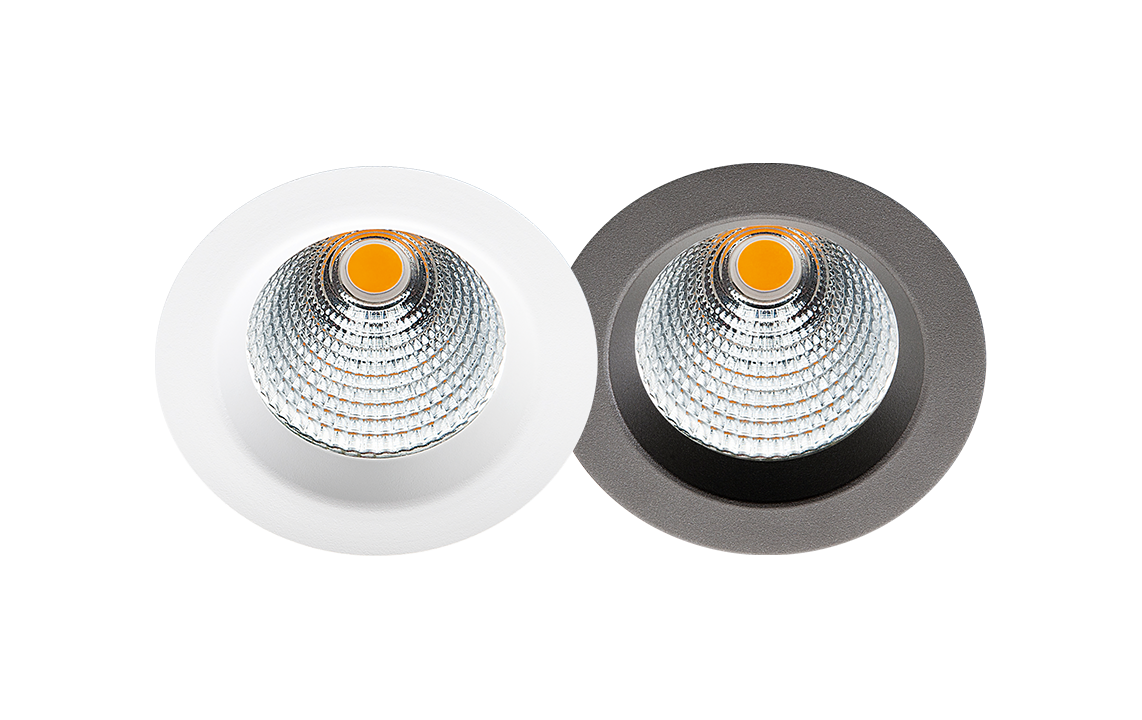

Jupiter Pro

Pro LED downlight for indoor or outdoor mounting. Powerful lumen output via the powerful recessed LED chip. Driver surface-mounted with quick junction box with quick clips for additional looping. Made of die-cast powder-coated aluminium, glass diffuser.

Article list

Jupiter Pro

Indoor, Outdoor Direct Recessed SDCM: 2 Class II SELV IP65/IP20 Ra>90

Filters

Color

Colour temperature

System wattage

Lumen

Control gear

Filters

					Others	Tools
923999	2700K	18W	1260lm	Trailing edge	70 lm/W, Ø114 x H112, Screwless terminal block, Beam angle: 40°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
912999	2700K	15W	1450lm	Trailing edge	97 lm/W, Ø114 x H112, Screwless terminal block, Beam angle: 40°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
923988	3000K	15W	1580lm	Trailing edge	105 lm/W, Ø114 x H112, Screwless terminal block, Beam angle: 40°, L90/B10> 50,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
940341	3000K	22W	2070lm	Trailing edge	94 lm/W, Ø114 x H112, Screwless terminal block, Beam angle: 40°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
940310	3000K	22W	2230lm	DALI-2 / Push Dim	101 lm/W, Ø114 x H112, 5 pol Linect / screwless terminal block, Beam angle: 40°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
960310	3000K	22W	2090lm	DALI-2 / Push Dim	95 lm/W, Ø114 x H112, 5 pol Linect / screwless terminal block, Beam angle: 60°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
912988	3000K	15W	1590lm	Trailing edge	106 lm/W, Ø114 x H112, Screwless terminal block, Beam angle: 40°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
940340	3000K	22W	2230lm	Trailing edge	101 lm/W, Ø114 x H112, Screwless terminal block, Beam angle: 40°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
960300	3000K	22W	2090lm	Trailing edge	95 lm/W, Ø114 x H112, Screwless terminal block, Beam angle: 60°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
940441	4000K	22W	2200lm	Trailing edge	100 lm/W, Ø114 x H112, Screwless terminal block, Beam angle: 40°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
940440	4000K	22W	2370lm	Trailing edge	108 lm/W, Ø114 x H112, Screwless terminal block, Beam angle: 40°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

					Others	Tools
923999	2700K	18W	1260lm	Trailing edge	70 lm/W, Ø114 x H112, Screwless terminal block, Beam angle: 40°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
912999	2700K	15W	1450lm	Trailing edge	97 lm/W, Ø114 x H112, Screwless terminal block, Beam angle: 40°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
923988	3000K	15W	1580lm	Trailing edge	105 lm/W, Ø114 x H112, Screwless terminal block, Beam angle: 40°, L90/B10> 50,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
940341	3000K	22W	2070lm	Trailing edge	94 lm/W, Ø114 x H112, Screwless terminal block, Beam angle: 40°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
940310	3000K	22W	2230lm	DALI-2 / Push Dim	101 lm/W, Ø114 x H112, 5 pol Linect / screwless terminal block, Beam angle: 40°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
960310	3000K	22W	2090lm	DALI-2 / Push Dim	95 lm/W, Ø114 x H112, 5 pol Linect / screwless terminal block, Beam angle: 60°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
912988	3000K	15W	1590lm	Trailing edge	106 lm/W, Ø114 x H112, Screwless terminal block, Beam angle: 40°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
940340	3000K	22W	2230lm	Trailing edge	101 lm/W, Ø114 x H112, Screwless terminal block, Beam angle: 40°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
960300	3000K	22W	2090lm	Trailing edge	95 lm/W, Ø114 x H112, Screwless terminal block, Beam angle: 60°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
940441	4000K	22W	2200lm	Trailing edge	100 lm/W, Ø114 x H112, Screwless terminal block, Beam angle: 40°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
940440	4000K	22W	2370lm	Trailing edge	108 lm/W, Ø114 x H112, Screwless terminal block, Beam angle: 40°, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools

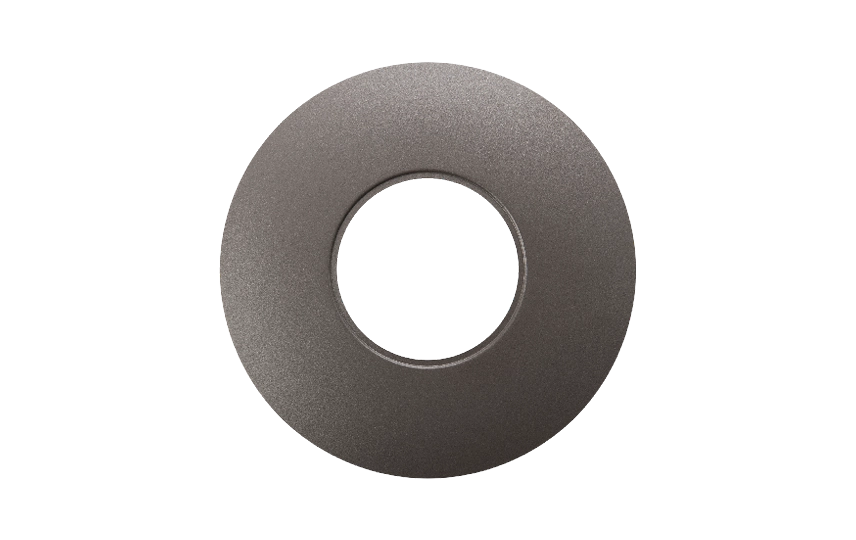

3827	Rehab Ring Black 180mm for Exclusive Midi & Jupiter Pro Stainless steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
3828	Rehab Ring Black 250mm for Exclusive Midi & Jupiter Pro Stainless steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
3819	Rehab Ring Graphite 180mm for Exclusive Midi & Jupiter Pro Stainless steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
3824	Rehab Ring Graphite 250mm for Exclusive Midi & Jupiter Pro Stainless steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
3815	Rehab Ring White 180mm for Exclusive Midi & Jupiter Pro Stainless steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
3823	Rehab Ring White 250mm for Exclusive Midi & Jupiter Pro Stainless steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
3825	Rehab Ring White 300mm for Exclusive Midi & Jupiter Pro Stainless steel	Ø300 x H45	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
820307	Emergency battery 3 Hours 3.0Ah - Model No: B093	L137 x W27 x H27	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
900109	Reliefplate Weight distribution panel Plastic	L400 x W400 x H1	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
