Jupiter Pro

Jupiter Pro 2200 Graphite 40° 2070lm 3000K Ra>90 Trailing edge

Article code
940341
EAN
7021989403418
Back to articlelist

Overview

Efficacy
94 lm/W
Lumen
2070lm
IP Class
IP65/IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L90/B10>
Mounting
Recessed, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • dipswitch
  • ip20ip65
  • klasse_2
  • selv
  • ce

Tools

Downloads

Specification sheet 940341 Eulumdat file (ldt) 7021989403418_Jupiter Pro 2200 Graphite 40D 2070lm 3000K Ra90 Dialux file (uld) 7021989403418_Jupiter Pro 2200 Graphite 40D 2070lm 3000K Ra90

See more

Relux file (rolf) 7021989403418_Jupiter_Pro_2200_Graphite_40D_2070lm_3000K_Ra_90_Trailing_edge_dimming Revit file - Generic Jupiter Pro - Generic Revit file - Ceiling Based Jupiter Pro - ceiling based Mounting instruction Jupiter Pro 2200_User Manual CE Declaration Jupiter Pro

How to specify

Text copied to clipboard

Jupiter Pro 2200 Graphite 40° 2070lm 3000K Ra>90 Trailing edge, Article code: 940341, EAN: 7021989403418, IP65/IP20, Electrical: System wattage: 22W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 19, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 2070lm, Efficacy: 94 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Reflector, Beam angle: 40°, UGR: UGR<22, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II SELV, IP Class: IP65/IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: Aluminium, Colour: Graphite, Optics: Tempered glass, Mounting/Connection: Mounting: Recessed, Indoor / Outdoor, Module: 2200, Connection: Screwless terminal block, Dimensions: Height (mm) H: 112, Diameter (mm) D: 114, Cut-out (mm): 83, Ceiling void depth (mm): 110, Distance to flammable materials: 100mm, Weight (kg) gross/net: 1.08 / 0.9, Packaging: Packaging dimensions (mm): 830 x 120 x 130

Electrical

System wattage
22W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 19, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
2070lm
Efficacy
94 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000

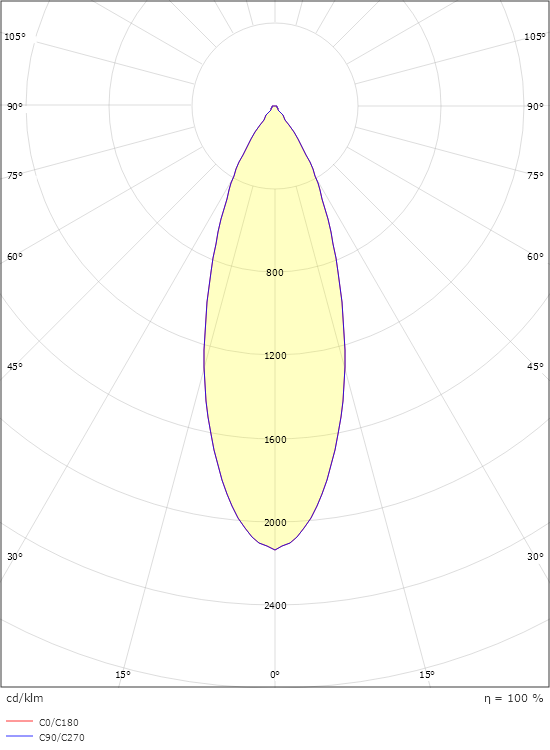

Light distribution
Direct
Optic
Reflector
Beam angle
40°
UGR
UGR<22

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II SELV
IP Class
IP65/IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes

Materials and finish

Housing
Aluminium
Colour
Graphite
Optics
Tempered glass

Mounting/Connection

Mounting
Recessed, Indoor / Outdoor
Module
2200
Connection
Screwless terminal block

Dimensions

Height (mm) H
112
Diameter (mm) D
114
Cut-out (mm)
83
Ceiling void depth (mm)
110
Distance to flammable materials
100mm
Weight (kg) gross/net
1.08 / 0.9

Packaging

Packaging dimensions (mm)
830 x 120 x 130
