Jupiter Pro

Jupiter Pro 2200 White 60° 2090lm 3000K Ra>90 DALI-2 / Push Dim

Article code
960310
EAN
7021989603108
Back to articlelist

Overview

Efficacy
95 lm/W
Lumen
2090lm
IP Class
IP65/IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L90/B10>
Mounting
Recessed, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • el
  • dipswitch
  • ip20ip65
  • klasse_2
  • selv
  • ce

Tools

Downloads

Specification sheet 960310 Mounting instruction Jupiter Pro 2200 DALI_User manual Eulumdat file (ldt) 7021989603108_Jupiter Pro 2200 White 60D 2090lm 3000K Ra90 DALI

See more

Dialux file (uld) 7021989603108_Jupiter Pro 2200 White 60D 2090lm 3000K Ra90 DALI Relux file (rolf) 7021989603108_Jupiter_Pro_2200_White_60D_2090lm_3000K_Ra_90_DALI Revit file - Generic Jupiter Pro - Generic Revit file - Ceiling Based Jupiter Pro - ceiling based CE Declaration Jupiter Pro

How to specify

Text copied to clipboard

Jupiter Pro 2200 White 60° 2090lm 3000K Ra>90 DALI-2 / Push Dim, Article code: 960310, EAN: 7021989603108, IP65/IP20, Electrical: System wattage: 22W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 35, B16: 57, C10: 58, C16: 95, Light technic: Type of light source: LED, Luminous flux: 2090lm, Efficacy: 95 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Reflector, Beam angle: 60°, UGR: UGR<25, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class II SELV, IP Class: IP65/IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Matte white (RAL 9003), Optics: Tempered glass, Mounting/Connection: Mounting: Recessed, Indoor / Outdoor, Module: 2200, Connection: 5 pol Linect / screwless terminal block, Dimensions: Height (mm) H: 112, Diameter (mm) D: 114, Cut-out (mm): 83, Ceiling void depth (mm): 110, Distance to flammable materials: 100mm, Weight (kg) gross/net: 1.08 / 0.9, Packaging: Packaging dimensions (mm): 142 x 142 x 140

Electrical

System wattage
22W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 35, B16: 57, C10: 58, C16: 95

Light technic

Type of light source
LED
Luminous flux
2090lm
Efficacy
95 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000

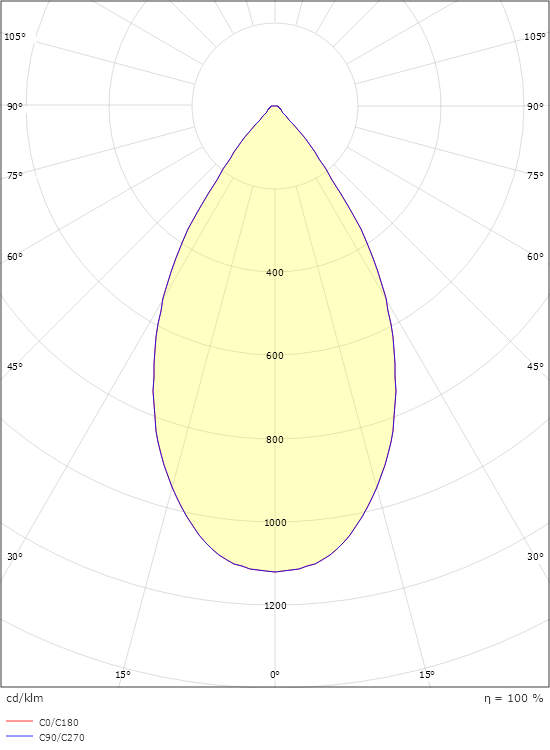

Light distribution
Direct
Optic
Reflector
Beam angle
60°
UGR
UGR<25

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class II SELV
IP Class
IP65/IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Matte white (RAL 9003)
Optics
Tempered glass

Mounting/Connection

Mounting
Recessed, Indoor / Outdoor
Module
2200
Connection
5 pol Linect / screwless terminal block

Dimensions

Height (mm) H
112
Diameter (mm) D
114
Cut-out (mm)
83
Ceiling void depth (mm)
110
Distance to flammable materials
100mm
Weight (kg) gross/net
1.08 / 0.9

Packaging

Packaging dimensions (mm)
142 x 142 x 140
