Jupiter Soft

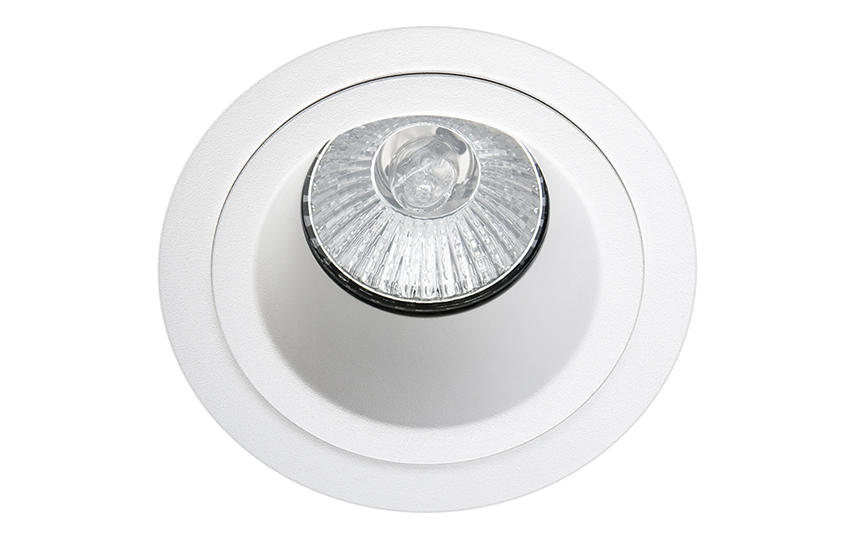

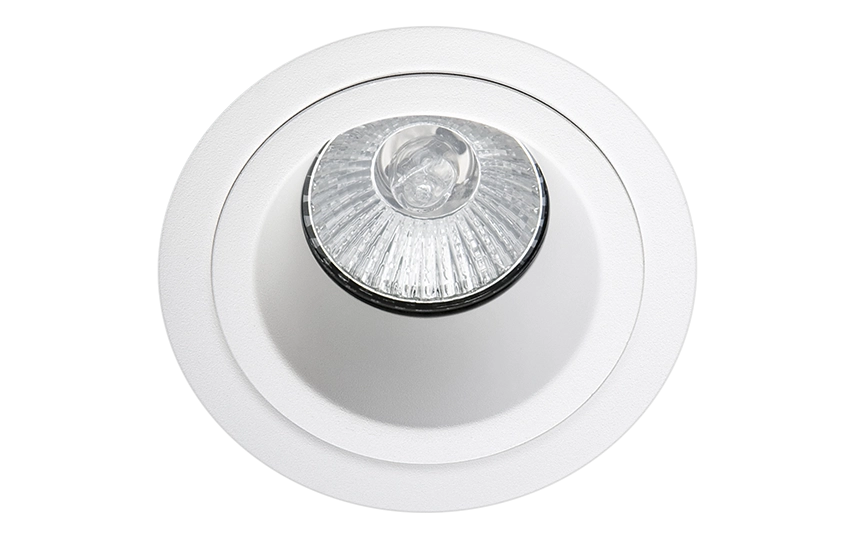

Jupiter Soft White Trailing edge

SG code
911975
EAN
7021989119753
Back to articlelist

Overview

Wattage
Max 50W
IP Class
IP23
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip23
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 911975 Mounting instruction Jupiter Soft Mounting instructions EPD NEPD-15331-18775_Jupiter-Soft-50W-230V CE Declaration Jupiter Soft Revit file - Generic Jupiter Soft - Generic Revit file - Ceiling Based Jupiter Soft - ceiling based

How to specify

Text copied to clipboard

Jupiter Soft White Trailing edge, Article code: 911975, EAN: 7021989119753, IP23, Electrical: Wattage: Max 50W, System wattage: 50W, Voltage: 220-240V, Light technic: Type of light source: LED, Socket: GU10, Light distribution: Direct, Beam angle: 36°, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP23, Energy and approvals: Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Steel, Colour: Matte white (RAL 9003), Mounting/Connection: Mounting: Recessed, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 137, Diameter (mm) D: 94, Cut-out (mm): 83, Ceiling void depth (mm): 135, Distance to flammable materials: 500mm, Weight (kg) gross/net: 0.35 / 0.3, Packaging: Packaging dimensions (mm): 110 x 100 x 155

Electrical

Wattage
Max 50W
System wattage
50W
Voltage
220-240V

Light technic

Type of light source
LED
Socket
GU10
Light distribution
Direct
Beam angle
36°

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP23

Energy and approvals

Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Steel
Colour
Matte white (RAL 9003)

Mounting/Connection

Mounting
Recessed, Indoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
137
Diameter (mm) D
94
Cut-out (mm)
83
Ceiling void depth (mm)
135
Distance to flammable materials
500mm
Weight (kg) gross/net
0.35 / 0.3

Packaging

Packaging dimensions (mm)
110 x 100 x 155
