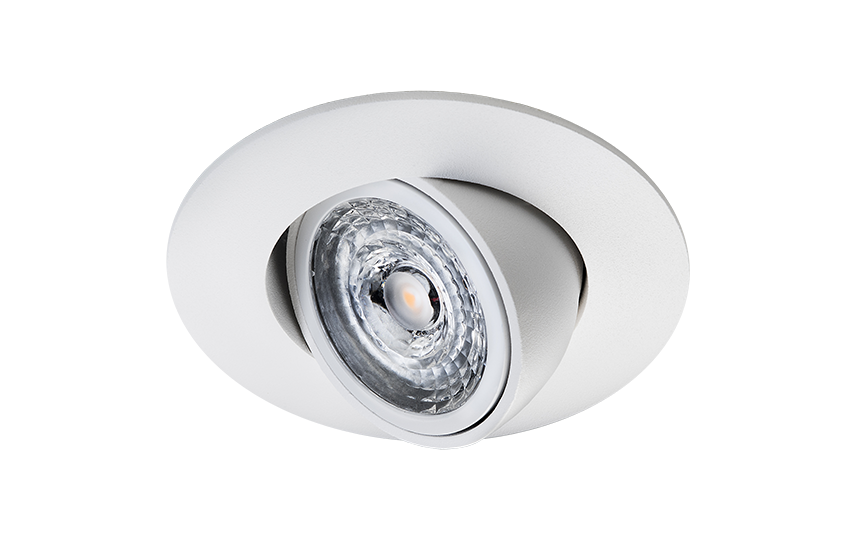

Jupiter Tek

Jupiter TEK White 360lm 3000K Ra>90 Trailing edge

Article code
912171
EAN
7021989121718
Back to articlelist

Overview

Efficacy
60 lm/W
Lumen
360lm
IP Class
IP23
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L70/B50>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip23
  • tilt45
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 912171 Eulumdat file (ldt) 7021989121718_Jupiter Tek Matt white 6W LED 3000K Ra90-39584 Dialux file (uld) 7021989121718_Jupiter Tek Matt white 6W LED 3000K Ra90

See more

Relux file (rolf) 7021989121718_Jupiter_TEK_White_360lm_3000K_Ra_90_Trailing_edge_dimming Revit file - Generic Jupiter TEK - Generic Revit file - Ceiling Based Jupiter TEK - ceiling based Mounting instruction jupiter TEK 6W_user manuals CE Declaration Jupiter TEK

How to specify

Text copied to clipboard

Jupiter TEK White 360lm 3000K Ra>90 Trailing edge, Article code: 912171, EAN: 7021989121718, IP23, Electrical: System wattage: 6W, Voltage: 220-240V, Light technic: Type of light source: LED, Socket: GU10, Light source included: Yes, Luminous flux: 360lm, Efficacy: 60 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L70/B50>50,000, Light distribution: Direct, Beam angle: 36°, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP23, Energy and approvals: Contains light source of energy class: G, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Matte white (RAL 9003), Mounting/Connection: Mounting: Recessed, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 58, Diameter (mm) D: 94, Cut-out (mm): 83, Ceiling void depth (mm): 56, Distance to flammable materials: 10mm, Weight (kg) gross/net: 0.29 / 0.29, Packaging: Packaging dimensions (mm): 110 x 110 x 80

Electrical

System wattage
6W
Voltage
220-240V

Light technic

Type of light source
LED
Socket
GU10
Light source included
Yes
Luminous flux
360lm
Efficacy
60 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L70/B50>50,000

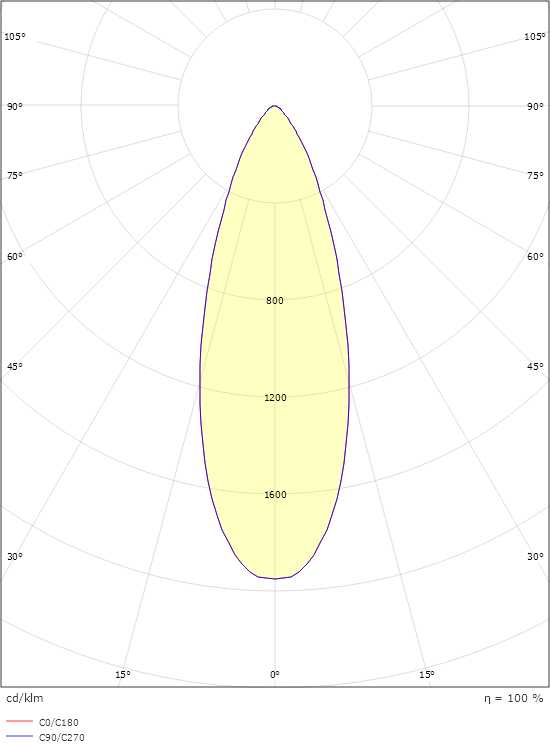

Light distribution
Direct
Beam angle
36°

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP23

Energy and approvals

Contains light source of energy class
G
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Matte white (RAL 9003)

Mounting/Connection

Mounting
Recessed, Indoor
Connection
Screwless terminal block

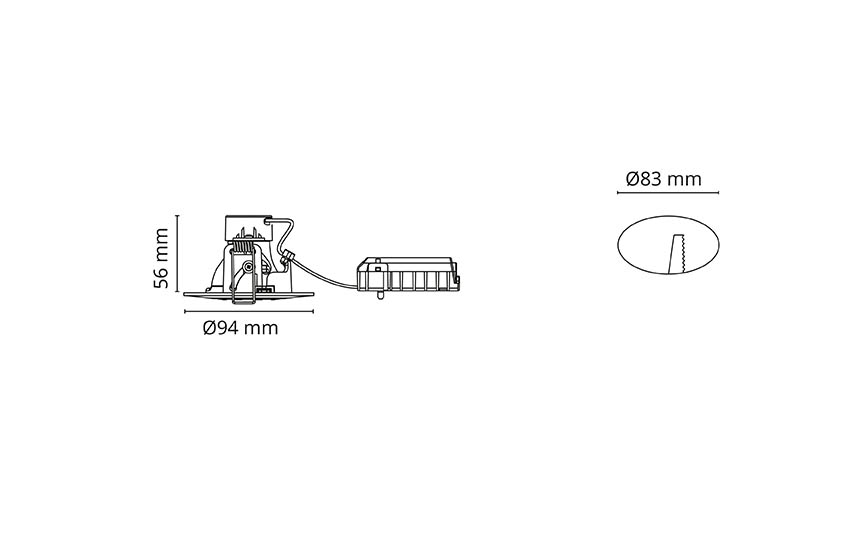

Dimensions

Height (mm) H
58
Diameter (mm) D
94
Cut-out (mm)
83
Ceiling void depth (mm)
56
Distance to flammable materials
10mm
Weight (kg) gross/net
0.29 / 0.29

Packaging

Packaging dimensions (mm)
110 x 110 x 80
