Jupiter

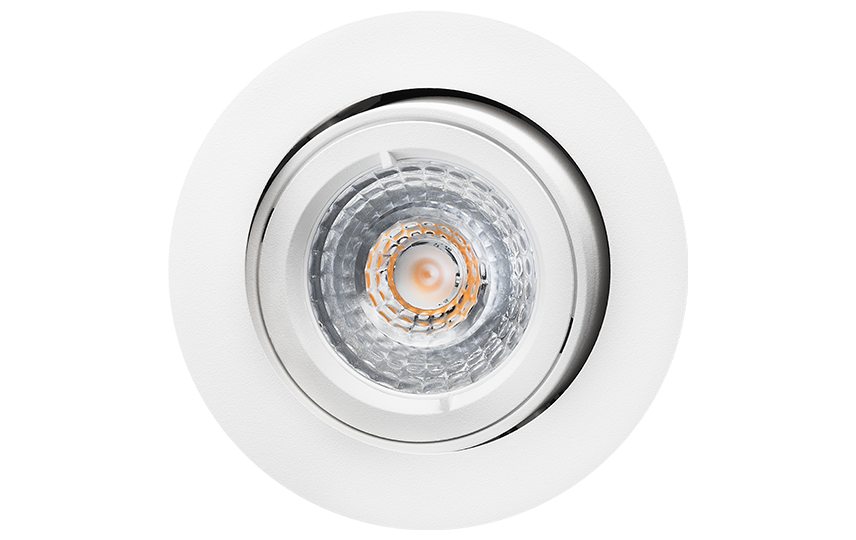

Jupiter White 455lm 3000K Ra>80 Trailing edge

Article code
932911
EAN
7021989329114
Back to articlelist

Overview

Efficacy
73 lm/W
Lumen
455lm
IP Class
IP23
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
25,000 L70/B50>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip23
  • tilt30
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 932911 Eulumdat file (ldt) 7021989329114_Jupiter Matt White 6.2W LED 3000K Revit file - Generic Jupiter - Generic

See more

Revit file - Ceiling Based Jupiter - ceiling based Mounting instruction Jupiter_User Manual CE Declaration Jupiter

How to specify

Text copied to clipboard

Jupiter White 455lm 3000K Ra>80 Trailing edge, Article code: 932911, EAN: 7021989329114, IP23, Electrical: System wattage: 6.2W, Voltage: 220-240V, Light technic: Type of light source: LED, Socket: GU10, Light source included: Yes, Luminous flux: 455lm, Efficacy: 73 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 4, Lifetime: L70/B50>25,000, Light distribution: Direct, Beam angle: 36°, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP23, Energy and approvals: Contains light source of energy class: G, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Matte white (RAL 9003), Mounting/Connection: Mounting: Recessed, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 112, Diameter (mm) D: 94, Cut-out (mm): 83, Ceiling void depth (mm): 110, Distance to flammable materials: 50mm, Weight (kg) gross/net: 0.36 / 0.3, Packaging: Packaging dimensions (mm): 115 x 115 x 165

Electrical

System wattage
6.2W
Voltage
220-240V

Light technic

Type of light source
LED
Socket
GU10
Light source included
Yes
Luminous flux
455lm
Efficacy
73 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 4
Lifetime
L70/B50>25,000

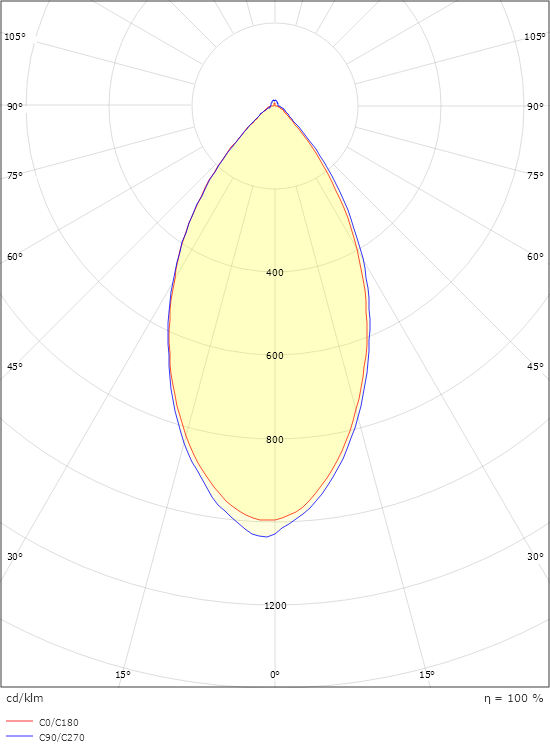

Light distribution
Direct
Beam angle
36°

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP23

Energy and approvals

Contains light source of energy class
G
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Matte white (RAL 9003)

Mounting/Connection

Mounting
Recessed, Indoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
112
Diameter (mm) D
94
Cut-out (mm)
83
Ceiling void depth (mm)
110
Distance to flammable materials
50mm
Weight (kg) gross/net
0.36 / 0.3

Packaging

Packaging dimensions (mm)
115 x 115 x 165
