Rax Eco 150

Rax ECO 150 White 3000/4000K Ra>80 DALI-2

Article code
212586
EAN
7021982125867
Back to articlelist

Overview

Wattage
7,5W/16W
Efficacy
113/121/109/118lm/W
Lumen
850lm/910lm/1750lm/1880lm
IP Class
IP20
Colour temperature
3000/4000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B20>
    5 years Warranty
  • dipswitch
  • cctsw
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 212586 Revit file - Generic Rax ECO 150 Dali - generic Revit file - Ceiling Based Rax ECO 150 Dali- ceiling based

See more

Mounting instruction Rax Eco 150 Dali_User Manual Eulumdat file (ldt) 7021982125867_Rax Eco 150 White 1750lm 3000K Ra80 DALI Eulumdat file (ldt) 7021982125867_Rax Eco 150 White 1880lm 4000K Ra80 DALI Eulumdat file (ldt) 7021982125867_Rax Eco 150 White 850lm 3000K Ra80 DALI Eulumdat file (ldt) 7021982125867_Rax Eco 150 White 910lm 4000K Ra80 DALI Dialux file (uld) 7021982125867_Rax Eco 150 White 1750lm 3000K Ra80 DALI Dialux file (uld) 7021982125867_Rax Eco 150 White 1880lm 4000K Ra80 DALI Dialux file (uld) 7021982125867_Rax Eco 150 White 850lm 3000K Ra80 DALI Dialux file (uld) 7021982125867_Rax Eco 150 White 910lm 4000K Ra80 DALI Relux file (rolf) 7021982125867_Rax_Eco_150_White_1750lm_3000K_Ra80_DALI Relux file (rolf) 7021982125867_Rax_Eco_150_White_1880lm_4000K_Ra80_DALI Relux file (rolf) 7021982125867_Rax_Eco_150_White_850lm_3000K_Ra80_DALI Relux file (rolf) 7021982125867_Rax_Eco_150_White_910lm_4000K_Ra80_DALI EPD NEPD-8251-7932_Rax-Eco-150-Dali CE Declaration Rax Eco 150

How to specify

Text copied to clipboard

Rax ECO 150 White 3000/4000K Ra>80 DALI-2, Article code: 212586, EAN: 7021982125867, IP20, Electrical: Wattage: 7,5W/16W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 90, B16: 150, C10: 90, C16: 150, Light technic: Type of light source: LED, Luminous flux: 850lm/910lm/1750lm/1880lm, Efficacy: 113/121/109/118lm/W, Colour temperature: 3000/4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>50,000, Light distribution: Direct, Optic: Reflector, Beam angle: 90°, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class II, IP Class: IP20, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Optics: Acrylic (PMMA), Mounting/Connection: Connection: 5 pol Linect / screwless terminal block, Dimensions: Height (mm) H: 83, Diameter (mm) D: 166, Cut-out (mm): 150, Ceiling void depth (mm): 83, Weight (kg) gross/net: 0.72 / 0.618, Packaging: Packaging dimensions (mm): 189 x 172 x 94

Electrical

Wattage
7,5W/16W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 90, B16: 150, C10: 90, C16: 150

Light technic

Type of light source
LED
Luminous flux
850lm/910lm/1750lm/1880lm
Efficacy
113/121/109/118lm/W
Colour temperature
3000/4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>50,000

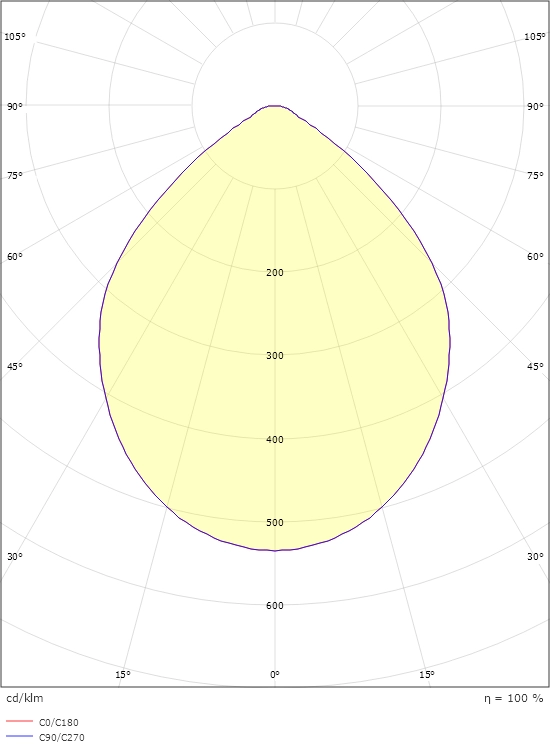

Light distribution
Direct
Optic
Reflector
Beam angle
90°

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class II
IP Class
IP20

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)
Optics
Acrylic (PMMA)

Mounting/Connection

Connection
5 pol Linect / screwless terminal block

Dimensions

Height (mm) H
83
Diameter (mm) D
166
Cut-out (mm)
150
Ceiling void depth (mm)
83
Weight (kg) gross/net
0.72 / 0.618

Packaging

Packaging dimensions (mm)
189 x 172 x 94
