Rax Soft 200 Asymmetric

Rax Soft 200 Satin Asymmetric 3000 4000K Ra>80 DALI-2 / Push Dim

Article code
212555
EAN
7021982125553
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Efficacy
102 lm/W
Lumen
3070lm
IP Class
IP54/IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L90/B10>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • el
  • ik08
  • ip20ip54
  • klasse_2
  • selv
  • ce

Tools

Downloads

Specification sheet 212555 Mounting instruction Rax Soft 200 DALI_User Manual Eulumdat file (ldt) 7021982125553_Rax Soft 200 Satin Asymmetric 3070lm 4000K Ra80 DALI

See more

Dialux file (uld) 7021982125553_Rax Soft 200 Satin Asymmetric 3070lm 4000K Ra80 DALI Relux file (rolf) 7021982125553_Rax Soft 200 Satin Asymmetric 3070lm 4000K Ra80 DALI CE Declaration Rax Soft 200

How to specify

Text copied to clipboard

Rax Soft 200 Satin Asymmetric 3000 4000K Ra>80 DALI-2 / Push Dim, Article code: 212555, EAN: 7021982125553, IP54/IP20, IK08, Electrical: System wattage: 30W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 3070lm, Emergency lumen: EM 340 lm, Efficacy: 102 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Satin Matt Reflector, Photobiological safety: RG 1, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class II SELV, IK Class: IK08, IP Class: IP54/IP20, Energy and approvals: Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Flame retardant polycarbonate, Colour: White/Satin mat, Optics: Polycarbonat (PC), Mounting/Connection: Mounting: Recessed, Indoor, Cable: Cable 5x0,75mm², Connection: 5 pol Linect / screwless terminal block, Dimensions: Height (mm) H: 93, Diameter (mm) D: 216, Cut-out (mm): 200, Ceiling void depth (mm): 90, Weight (kg) gross/net: 1.2 / 1, Packaging: Packaging dimensions (mm): 240 x 240 x 102

Electrical

System wattage
30W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
3070lm
Emergency lumen
EM 340 lm
Efficacy
102 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000

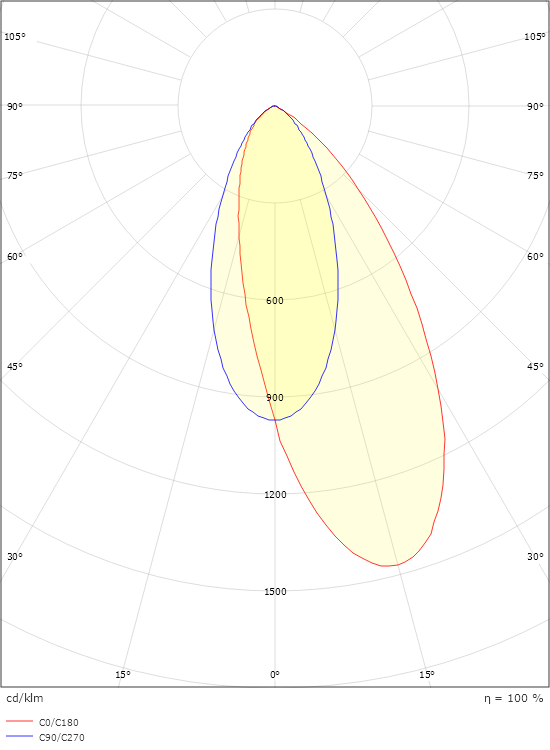

Light distribution
Direct
Optic
Satin Matt Reflector
Photobiological safety
RG 1

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class II SELV
IK Class
IK08
IP Class
IP54/IP20

Energy and approvals

Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Flame retardant polycarbonate
Colour
White/Satin mat
Optics
Polycarbonat (PC)

Mounting/Connection

Mounting
Recessed, Indoor
Cable
Cable 5x0,75mm²
Connection
5 pol Linect / screwless terminal block

Dimensions

Height (mm) H
93
Diameter (mm) D
216
Cut-out (mm)
200
Ceiling void depth (mm)
90
Weight (kg) gross/net
1.2 / 1

Packaging

Packaging dimensions (mm)
240 x 240 x 102
