Soft Slim

Soft Slim Black 760lm 3000K Ra 98 DALI-2

Article code
903238
EAN
7021989032380
Back to articlelist

Overview

Wattage
9W
Efficacy
69 lm/W
Lumen
760lm
IP Class
IP54/IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra 98
Lifetime
100,000 L90/B10>
Mounting
Recessed, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • isosafe
  • ip20ip54
  • klasse_2
  • selv
  • ce

Tools

Downloads

Specification sheet 903238 Mounting instruction Soft Slim DALI_User Manual EPD NEPD-9184-8762_Soft-Slim-Dali

See more

Revit file - Generic Soft Slim - generic Revit file - Ceiling Based Soft Slim - ceiling based CE Declaration Soft Slim

How to specify

Text copied to clipboard

Soft Slim Black 760lm 3000K Ra 98 DALI-2, Article code: 903238, EAN: 7021989032380, IP54/IP20, Electrical: Wattage: 9W, System wattage: 11W, Voltage: 220-240V, Light technic: Type of light source: LED, Luminous flux: 760lm, Efficacy: 69 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra 98, MacAdams factor: SDCM: 3, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Reflector, Beam angle: 42°, Photobiological safety: RG 1, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class II SELV, IP Class: IP54/IP20, Energy and approvals: Contains light source of energy class: F, Materials and finish: Housing: Aluminium, Colour: Black, Optics: Tempered glass, Mounting/Connection: Mounting: Recessed, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 52, Diameter (mm) D: 90, Cut-out (mm): 83, Distance to flammable materials: 10mm, Weight (kg) gross/net: 0.43 / 0.385, Packaging: Packaging dimensions (mm): 130 x 115 x 85

Electrical

Wattage
9W
System wattage
11W
Voltage
220-240V

Light technic

Type of light source
LED
Luminous flux
760lm
Efficacy
69 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra 98
MacAdams factor
SDCM: 3
Lifetime
L90/B10>100,000

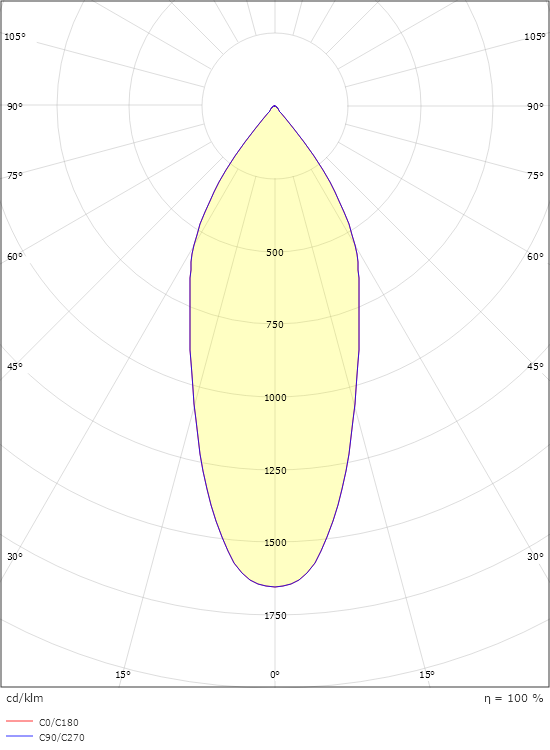

Light distribution
Direct
Optic
Reflector
Beam angle
42°
Photobiological safety
RG 1

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class II SELV
IP Class
IP54/IP20

Energy and approvals

Contains light source of energy class
F

Materials and finish

Housing
Aluminium
Colour
Black
Optics
Tempered glass

Mounting/Connection

Mounting
Recessed, Indoor / Outdoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
52
Diameter (mm) D
90
Cut-out (mm)
83
Distance to flammable materials
10mm
Weight (kg) gross/net
0.43 / 0.385

Packaging

Packaging dimensions (mm)
130 x 115 x 85
