Uniled IsoSafe DimToWarm
UniLED IsoSafe DimToWarm White 560lm 2000-2800K Ra>95 Trailing edge
- Article code
- 904211
- EAN
- 7021989042112
Overview
- Wattage
- 6W
- Efficacy
- 77 lm/W
- Lumen
- 560lm
- IP Class
- IP54/IP20
- Colour temperature
- 2000-2800K
- Colour rendering (Ra)
- Ra>95
- Lifetime
- 50,000 L90/B10>
- Mounting
- Recessed, Indoor / Outdoor
Electrical
- Wattage
- 6W
- System wattage
- 7.3W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
Light technic
- Type of light source
- LED
- Luminous flux
- 560lm
- Efficacy
- 77 lm/W
- Colour temperature
- 2000-2800K
- Colour rendering (Ra)
- Ra>95
- MacAdams factor
- SDCM: 3
- Lifetime
- L90/B10>50,000

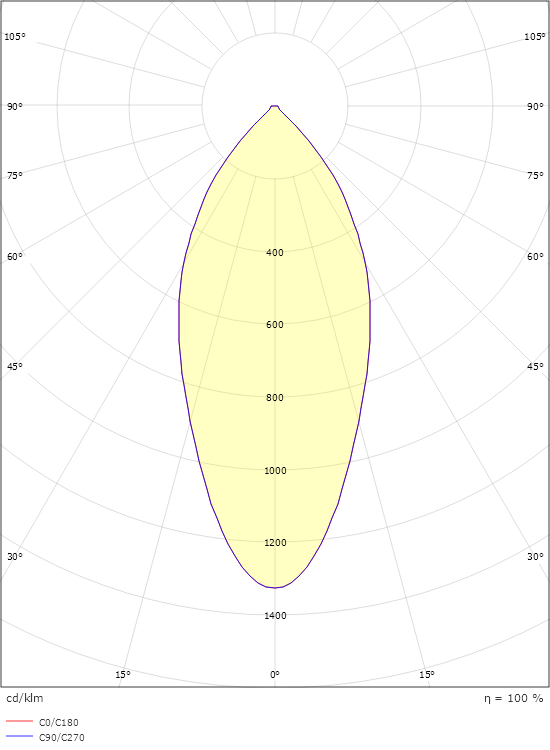

- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 42°

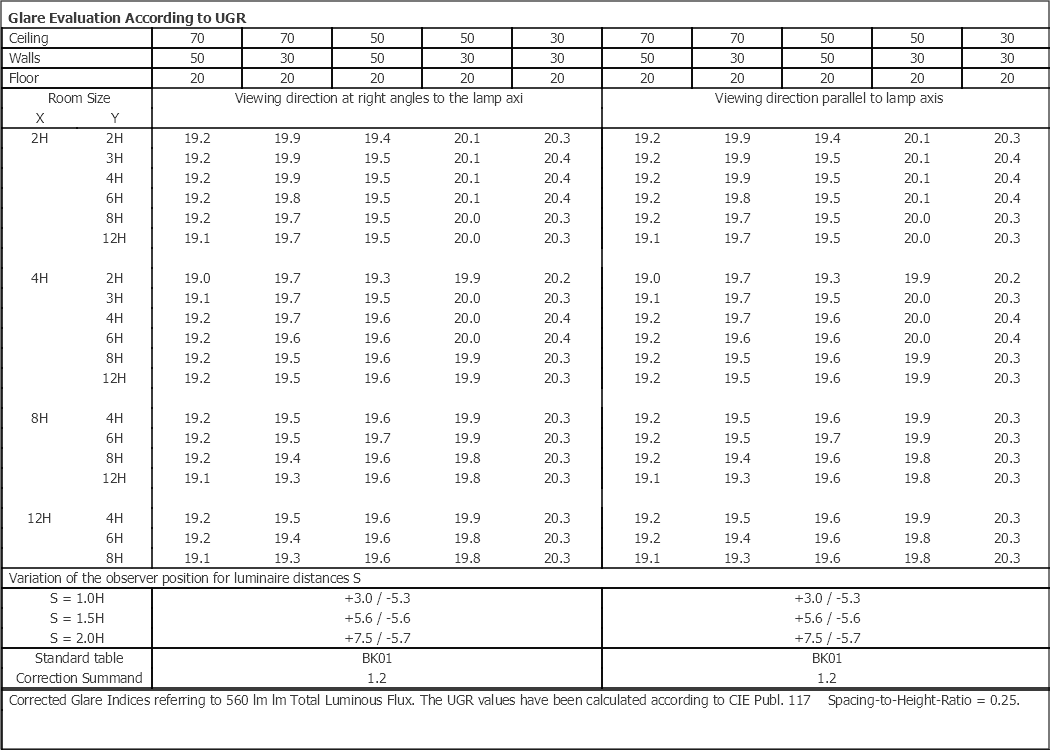

- UGR
- UGR<19
Control/Dimming
- Type
- Trailing edge
Protection
- Luminaire class
- Class II SELV
- IP Class
- IP54/IP20
Energy and approvals
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Aluminium
- Colour
- Matte white (RAL 9003)
- Optics
- Tempered glass
Mounting/Connection
- Mounting
- Recessed, Indoor / Outdoor
- Connection
- Screwless terminal block
Dimensions
- Height (mm) H
- 37
- Diameter (mm) D
- 94
- Cut-out (mm)
- 76
- Ceiling void depth (mm)
- 35
- Weight (kg) gross/net
- 0.48 / 0.4
Packaging
- Packaging dimensions (mm)
- 115 x 100 x 95
