Cube DimToWarm

Cube 2X White DimToWarm 1100lm 2000-2800K Ra>95 Trailing edge

SG code
906231
EAN
7021989062318
Back to articlelist

Overview

Efficacy
74 lm/W
Lumen
1100lm
Wattage
2x6W
IP Class
IP21
Colour temperature
2000-2800K
Colour rendering (Ra)
Ra>95
Lifetime
50,000 L90/B10>
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • dimtowarm
  • ip21
  • tilt30-1
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 906231 Mounting instruction Cube Mounting instructions EPD NEPD-16802-20881_Cube-DTW-2x CE Declaration Cube DimToWarm Relux file (rolf) 7021989062318_Cube_DimToWarm_White_DimToWarm_1100lm_2000-2800K_Ra_95_Trailing_edge_dimming Eulumdat file (ldt) 7021989062318_Cube DimToWarm White 1100lm 2000-2800K Ra95-32936 Dialux file (uld) 7021989062318_Cube DimToWarm White 1100lm 2000-2800K Ra95 Revit file - Generic Cube Lux x2 DTW - Generic Revit file - Ceiling Based Cube Lux x2 DTW - ceiling based

How to specify

Text copied to clipboard

Cube 2X White DimToWarm 1100lm 2000-2800K Ra>95 Trailing edge, Article code: 906231, EAN: 7021989062318, IP21, Electrical: Wattage: 2x6W, System wattage: 14.8W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 19, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 1100lm, Efficacy: 74 lm/W, Colour temperature: 2000-2800K, Colour rendering (Ra): Ra>95, MacAdams factor: SDCM: 3, Lifetime: L90/B10>50,000, Light distribution: Direct, Optic: Reflector, Beam angle: 42°, UGR: UGR<22, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IP Class: IP21, Energy and approvals: Contains light source of energy class: F, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium and stainless steel, Colour: Matte white (RAL 9003), Optics: Tempered glass, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Module: 2X, Connection: Screwless terminal block, Dimensions: Length (mm) L: 231, Width (mm) W: 132, Height (mm) H: 65, Distance to flammable materials: 10mm, Weight (kg) gross/net: 1.45 / 1.25, Packaging: Packaging dimensions (mm): 240 x 140 x 75

Electrical

Wattage
2x6W
System wattage
14.8W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 19, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
1100lm
Efficacy
74 lm/W
Colour temperature
2000-2800K
Colour rendering (Ra)
Ra>95
MacAdams factor
SDCM: 3
Lifetime
L90/B10>50,000

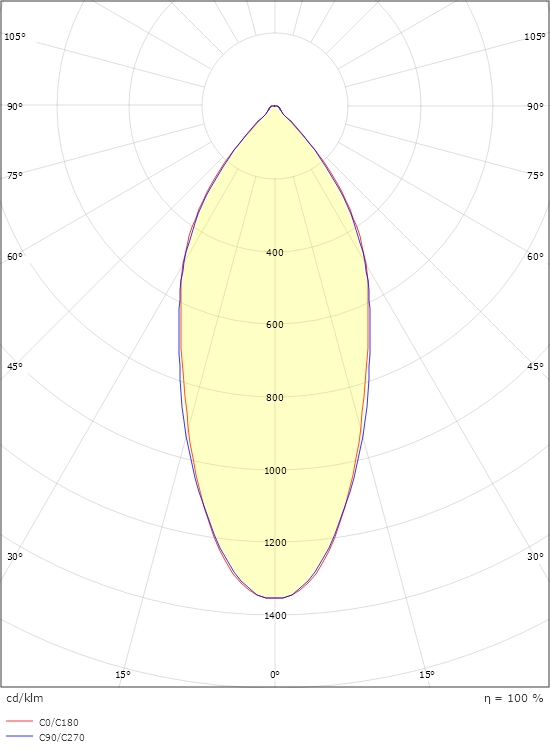

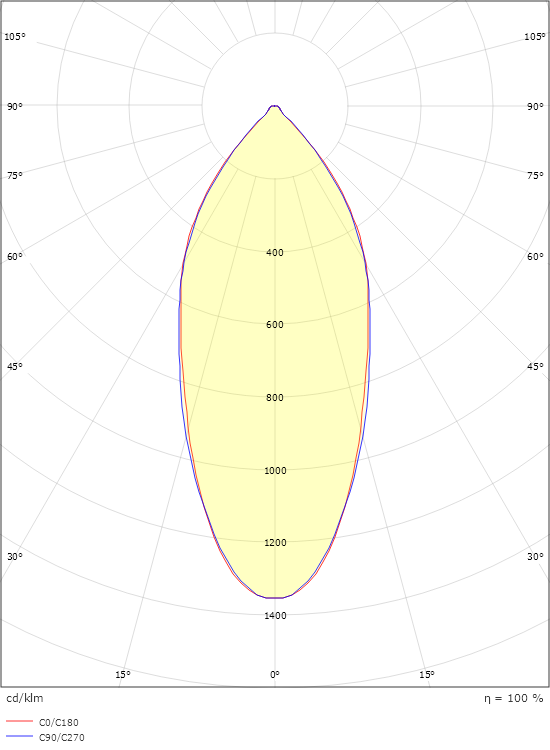

Light distribution
Direct
Optic
Reflector
Beam angle
42°
UGR
UGR<22

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IP Class
IP21

Energy and approvals

Contains light source of energy class
F
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium and stainless steel
Colour
Matte white (RAL 9003)
Optics
Tempered glass

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Module
2X
Connection
Screwless terminal block

Dimensions

Length (mm) L
231
Width (mm) W
132
Height (mm) H
65
Distance to flammable materials
10mm
Weight (kg) gross/net
1.45 / 1.25

Packaging

Packaging dimensions (mm)
240 x 140 x 75
