Rax 150 Surface

Rax Surface 150 White 2140lm 3000K Ra>80 DALI-2 / Push Dim

Article code
8246081610
EAN
5703821164047
Back to articlelist

Overview

Efficacy
113 lm/W
Lumen
2140lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L90/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • el
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246081610 Eulumdat file (ldt) 5703821164047_Rax Surface 150 White 2140lm 3000K Ra80 DALI Push Dim Dialux file (uld) 5703821164047_Rax Surface 150 White 2140lm 3000K Ra80 DALI Push Dim

See more

Relux file (rolf) 5703821164047_Rax_Surface_150_White_2140lm_3000K_Ra_80_DALI_Push_Dim EPD NEPD-12156-12169_Rax-Surface-150-19W Revit file - Generic Rax 150 surface - Generic Revit file - Ceiling Based Rax 150 surface - Ceiling Based Mounting instruction Rax Surface_User Manual CE Declaration Rax Surface 150

How to specify

Text copied to clipboard

Rax Surface 150 White 2140lm 3000K Ra>80 DALI-2 / Push Dim, Article code: 8246081610, EAN: 5703821164047, IP20, Electrical: System wattage: 19W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Leakage current (mA): 0.05, Light technic: Type of light source: LED, Luminous flux: 2140lm, Efficacy: 113 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Satin Matt Reflector, Beam angle: 74°, UGR: UGR<22, Photobiological safety: RG 1, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Spun aluminium, Colour: White, Optics: Aluminium, Mounting/Connection: Mounting: Surface, Indoor, Dimensions: Height (mm) H: 203, Diameter (mm) D: 173, Cut-out (mm): 150, Weight (kg) gross/net: 1.3 / 1.1, Packaging: Packaging dimensions (mm): 180 x 180 x 220

Electrical

System wattage
19W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85
Leakage current (mA)
0.05

Light technic

Type of light source
LED
Luminous flux
2140lm
Efficacy
113 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000

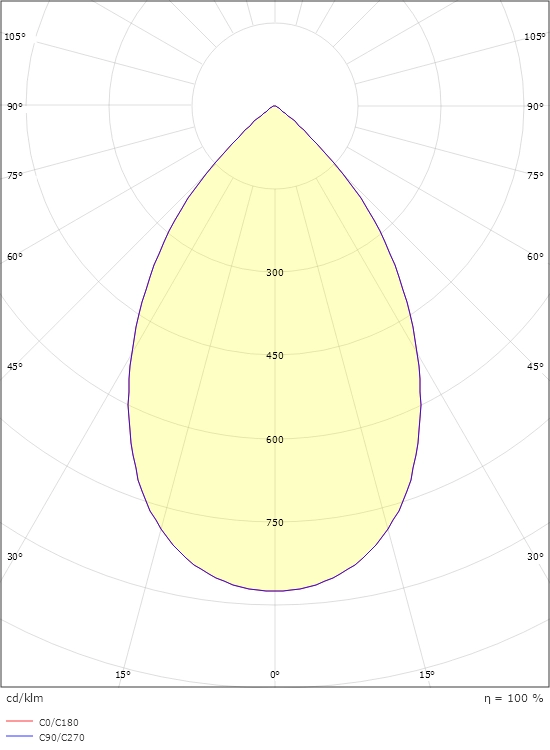

Light distribution
Direct
Optic
Satin Matt Reflector
Beam angle
74°
UGR
UGR<22
Photobiological safety
RG 1

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Spun aluminium
Colour
White
Optics
Aluminium

Mounting/Connection

Mounting
Surface, Indoor

Dimensions

Height (mm) H
203
Diameter (mm) D
173
Cut-out (mm)
150
Weight (kg) gross/net
1.3 / 1.1

Packaging

Packaging dimensions (mm)
180 x 180 x 220
