Tysnes 66

Tysnes 66 1200 Grey 5480lm 3000K Ra>80 On/Off

Article code
120064
EAN
7021981200640
Back to articlelist

Overview

Efficacy
157 lm/W
Lumen
5480lm
IP Class
IP66
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • d
  • dipswitch
  • ik10
  • ip66
  • klasse_1

Tools

Downloads

Specification sheet 120064 Eulumdat file (ldt) 7021981200640_Tysnes 66 1200 Grey 5480lm 3000K Ra80 OnOff Dialux file (uld) 7021981200640_Tysnes 66 1200 Grey 5480lm 3000K Ra80 OnOff

See more

Relux file (rolf) 7021981200640_Tysnes_66_1200_Grey_5480lm_3000K_Ra_80_On_Off EPD NEPD-9228-8810_Tysnes-66-1200 Mounting instruction Tysnes 66_User Manual HACCP 4724055-240001_Test Attestation (SG Armaturen AS - Tysnes 66) CE Declaration Tysnes 66

How to specify

Text copied to clipboard

Tysnes 66 1200 Grey 5480lm 3000K Ra>80 On/Off, Article code: 120064, EAN: 7021981200640, IP66, IK10, Electrical: System wattage: 35W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 14, B16: 23, C10: 22, C16: 36, Light technic: Type of light source: LED, Luminous flux: 5480lm, Efficacy: 157 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opal, Beam angle: 117°, Photobiological safety: RG 0, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP66, Fire protection class: 850°C - 30s, Materials and finish: Housing: UV-stabilized polycarbonate, Colour: Grey, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor, Module: 1200, Connection: 3-pole screwless terminal block with 3x2,5mm2 through wiring, Dimensions: Length (mm) L: 1200, Width (mm) W: 85, Height (mm) H: 80, Weight (kg) gross/net: 1.65 / 1.5, Packaging: Packaging dimensions (mm): 1225 x 85 x 90

Electrical

System wattage
35W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 14, B16: 23, C10: 22, C16: 36

Light technic

Type of light source
LED
Luminous flux
5480lm
Efficacy
157 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

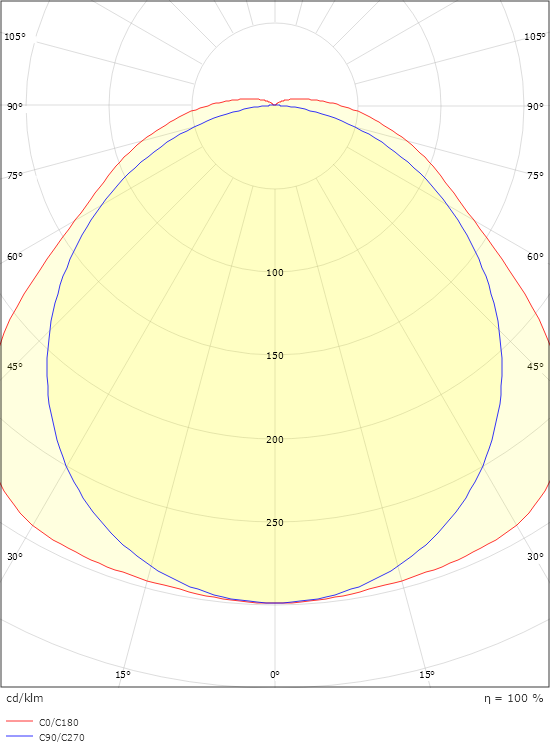

Light distribution
Direct
Optic
Opal
Beam angle
117°
Photobiological safety
RG 0

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP66
Fire protection class
850°C - 30s

Materials and finish

Housing
UV-stabilized polycarbonate
Colour
Grey
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor
Module
1200
Connection
3-pole screwless terminal block with 3x2,5mm2 through wiring

Dimensions

Length (mm) L
1200
Width (mm) W
85
Height (mm) H
80
Weight (kg) gross/net
1.65 / 1.5

Packaging

Packaging dimensions (mm)
1225 x 85 x 90
