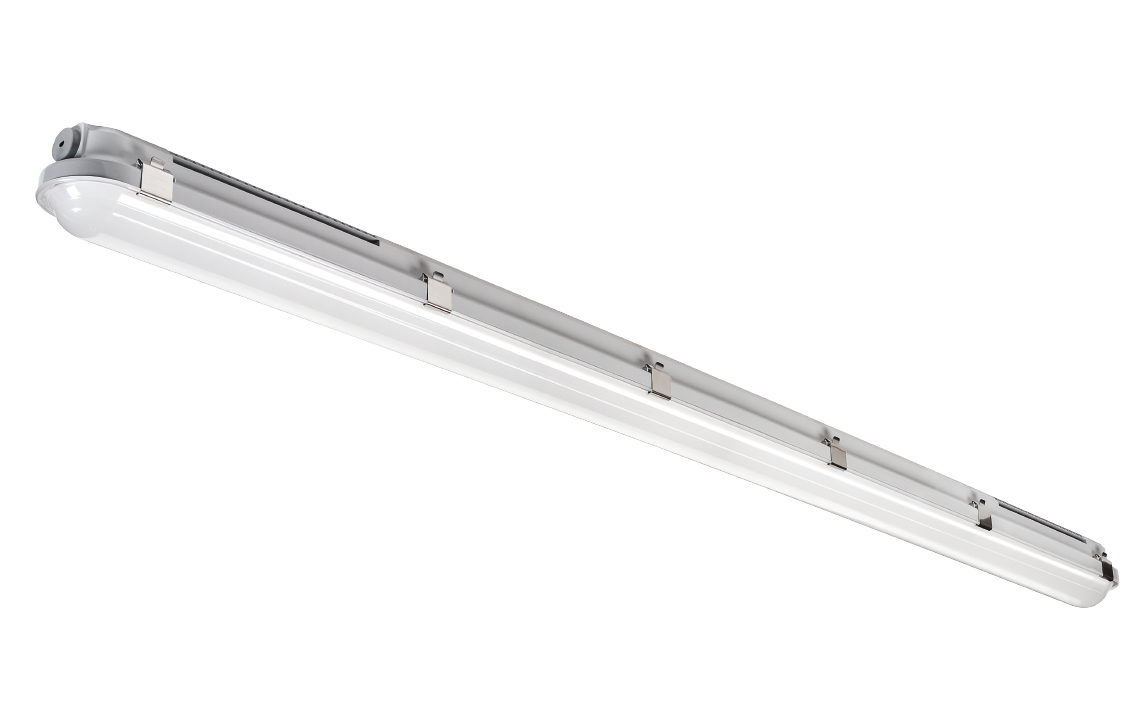

Tysnes 66

Tysnes 66 1500 Grey 6400lm 4000K Ra>80 DALI-2

Article code
120037
EAN
7021981200374
Back to articlelist

Overview

Efficacy
160 lm/W
Lumen
6400lm
IP Class
IP66
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • d
  • el
  • flickerfree
  • ik10
  • ip66
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 120037 Revit file - Generic Tysnes 66 1500 - generic Revit file - Ceiling Based Tysnes 66 1500 - ceiling based

See more

Mounting instruction Tysnes 66 Dali_User Manual Eulumdat file (ldt) 7021981200374_Tysnes 66 1500 Grey 6400lm 4000K Ra80 DALI Dialux file (uld) 7021981200374_Tysnes 66 1500 Grey 6400lm 4000K Ra80 DALI Relux file (rolf) 7021981200374_Tysnes_66_1500_Grey_6400lm_4000K_Ra_80_DALI EPD NEPD-6447-5709_Tysnes-66-1500-Dali HACCP 4724055-240001_Test Attestation (SG Armaturen AS - Tysnes 66) CE Declaration Tysnes 66

How to specify

Text copied to clipboard

Tysnes 66 1500 Grey 6400lm 4000K Ra>80 DALI-2, Article code: 120037, EAN: 7021981200374, IP66, IK10, Electrical: System wattage: 40W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 12, B16: 20, C10: 21, C16: 34, Leakage current (mA): 0.29, Light technic: Type of light source: LED, Light source included: Yes, Luminous flux: 6400lm, Efficacy: 160 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opal, Beam angle: 117°, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP66, Fire protection class: 850°C - 30s, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Food Safety approved (IFS and HACCP): Yes, Materials and finish: Housing: UV-stabilized polycarbonate, Colour: Grey, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor, Module: 1500, Connection: 5-pole screwless terminal block with 5x2,5mm2 through wiring, Dimensions: Length (mm) L: 1500, Width (mm) W: 85, Height (mm) H: 80, Weight (kg) gross/net: 1.98 / 1.78, Packaging: Packaging dimensions (mm): 1525 x 85 x 90

Electrical

System wattage
40W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 12, B16: 20, C10: 21, C16: 34
Leakage current (mA)
0.29

Light technic

Type of light source
LED
Light source included
Yes
Luminous flux
6400lm
Efficacy
160 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

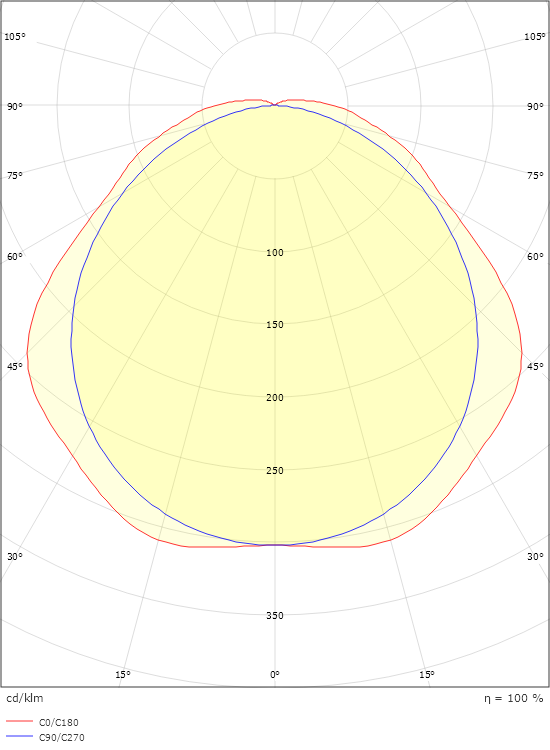

Light distribution
Direct
Optic
Opal
Beam angle
117°

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP66
Fire protection class
850°C - 30s

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting
Food Safety approved (IFS and HACCP)
Yes

Materials and finish

Housing
UV-stabilized polycarbonate
Colour
Grey
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor
Module
1500

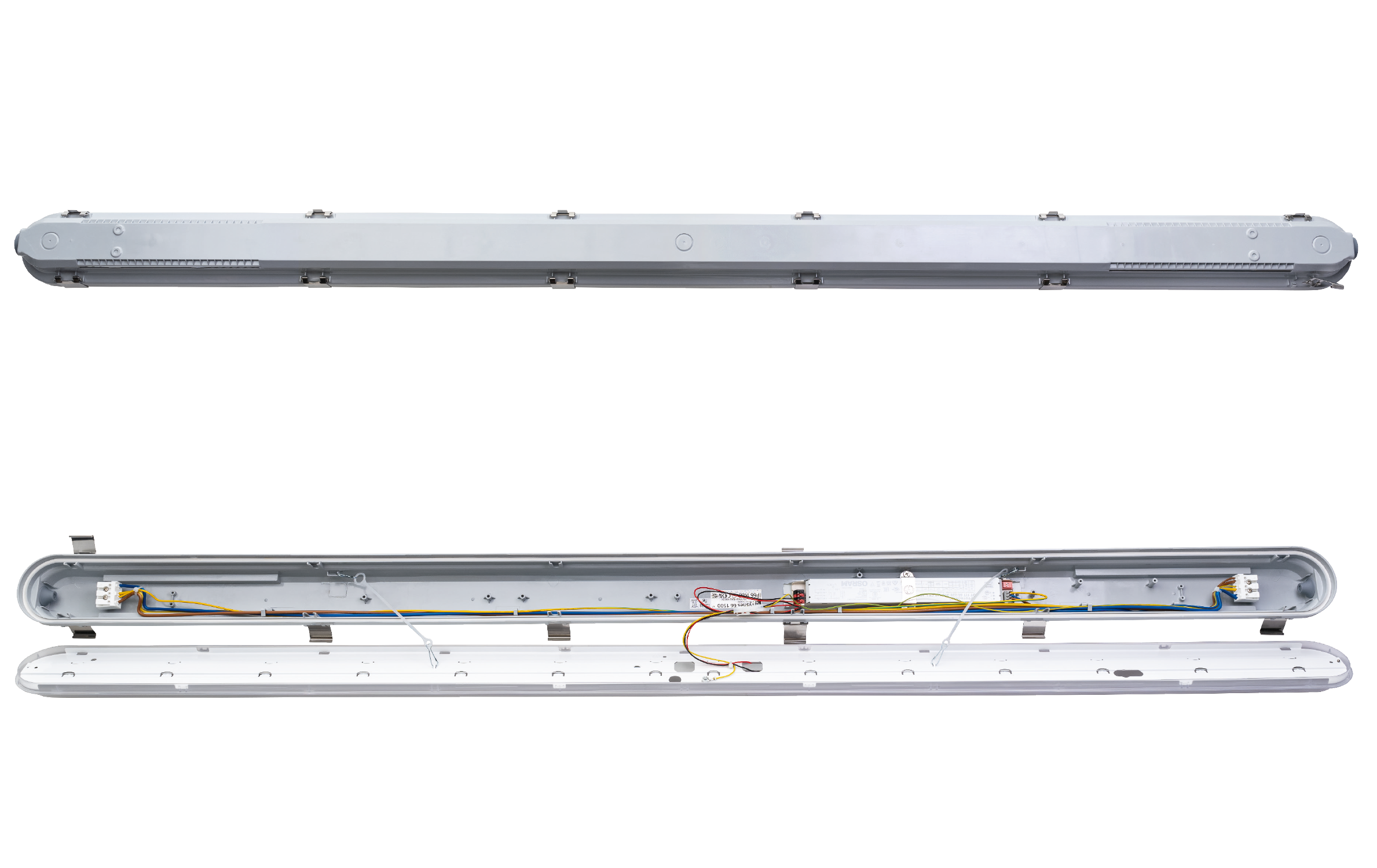

Connection
5-pole screwless terminal block with 5x2,5mm2 through wiring

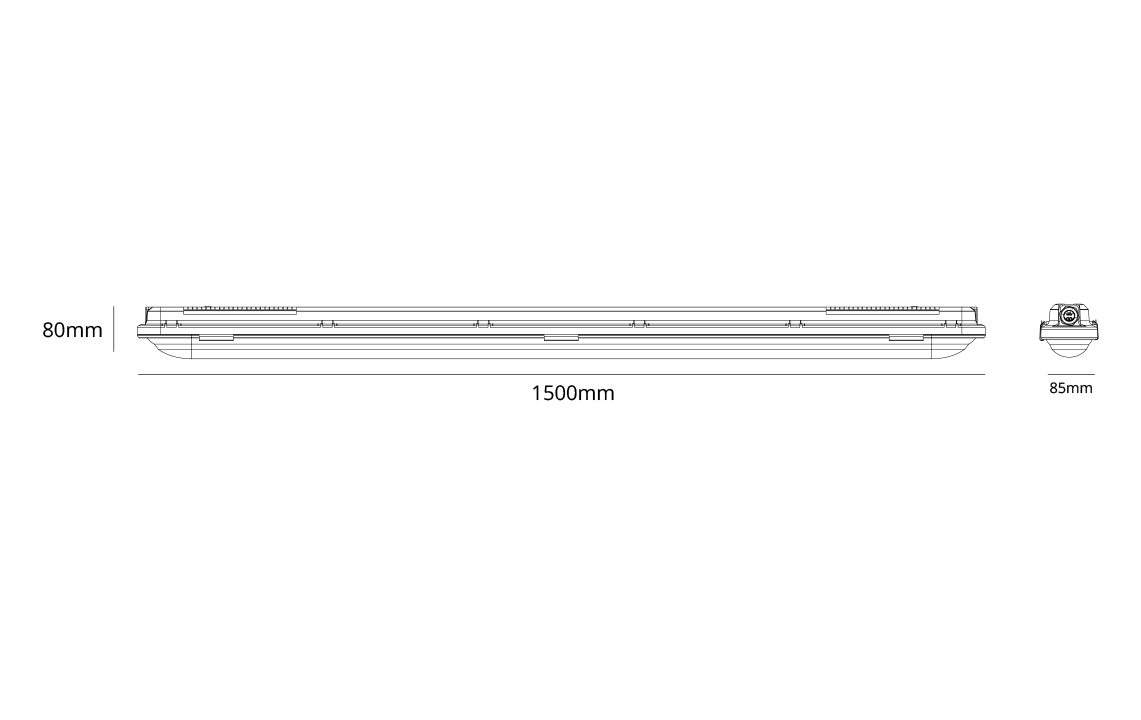

Dimensions

Length (mm) L
1500
Width (mm) W
85
Height (mm) H
80
Weight (kg) gross/net
1.98 / 1.78

Packaging

Packaging dimensions (mm)
1525 x 85 x 90
