Tysnes 66

Tysnes 66 650 Grey 2060lm 4000K Ra>80 On/Off

Article code
120030
EAN
7021981200305
Back to articlelist

Overview

Efficacy
147 lm/W
Lumen
2060lm
IP Class
IP66
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • d
  • dipswitch
  • ik10
  • ip66
  • klasse_1
  • ce
  • enec

Tools

Downloads

Specification sheet 120030 Revit file - Generic Tysnes 66 650 - generic Revit file - Ceiling Based Tysnes 66 650 - ceiling based

See more

Eulumdat file (ldt) 7021981200305_Tysnes 66 650 Grey 2060lm 4000K Ra80 OnOff Dialux file (uld) 7021981200305_Tysnes 66 650 Grey 2060lm 4000K Ra80 OnOff Relux file (rolf) 7021981200305_Tysnes_66_650_Grey_2060lm_4000K_Ra_80_On_Off EPD NEPD-9222-8819_Tysnes-66-650 Mounting instruction Tysnes 66_User Manual HACCP 4724055-240001_Test Attestation (SG Armaturen AS - Tysnes 66) CE Declaration Tysnes 66

How to specify

Text copied to clipboard

Tysnes 66 650 Grey 2060lm 4000K Ra>80 On/Off, Article code: 120030, EAN: 7021981200305, IP66, IK10, Electrical: System wattage: 14W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 40, B16: 60, C10: 40, C16: 60, Leakage current (mA): 0.21, Light technic: Type of light source: LED, Luminous flux: 2060lm, Efficacy: 147 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Minimum ambient temperature: -25°C, Light distribution: Direct, Optic: Opal, Beam angle: 121°, UGR: UGR<25, Visible flicker (PstLM): 0.19, Stroboscopic flicker (SVM): 0.02, Photobiological safety: RG 0, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP66, Fire protection class: 850°C - 30s, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Food Safety approved (IFS and HACCP): Yes, Materials and finish: Housing: UV-stabilized polycarbonate, Colour: Grey, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor, Module: 650, Connection: Screwless terminal block, Dimensions: Length (mm) L: 650, Width (mm) W: 85, Height (mm) H: 80, Weight (kg) gross/net: 0.9 / 0.8, Packaging: Packaging dimensions (mm): 680 x 85 x 90

Electrical

System wattage
14W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 40, B16: 60, C10: 40, C16: 60
Leakage current (mA)
0.21

Light technic

Type of light source
LED
Luminous flux
2060lm
Efficacy
147 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000
Minimum ambient temperature
-25°C

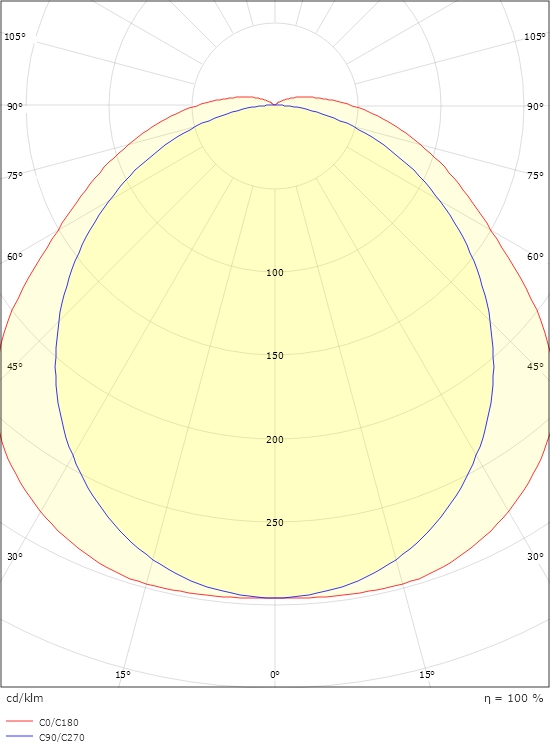

Light distribution
Direct
Optic
Opal
Beam angle
121°
UGR
UGR<25
Visible flicker (PstLM)
0.19
Stroboscopic flicker (SVM)
0.02
Photobiological safety
RG 0

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP66
Fire protection class
850°C - 30s

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting
Food Safety approved (IFS and HACCP)
Yes

Materials and finish

Housing
UV-stabilized polycarbonate
Colour
Grey
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor
Module
650
Connection
Screwless terminal block

Dimensions

Length (mm) L
650
Width (mm) W
85
Height (mm) H
80
Weight (kg) gross/net
0.9 / 0.8

Packaging

Packaging dimensions (mm)
680 x 85 x 90
