Wave

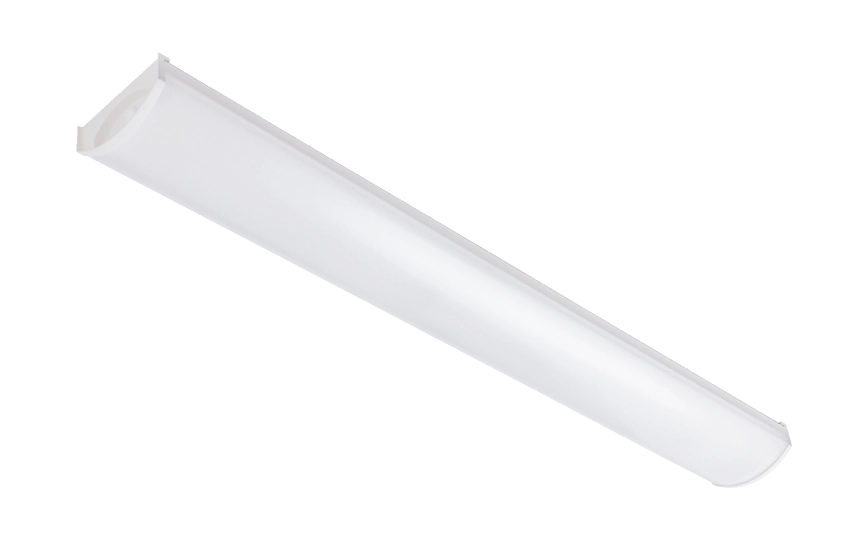

Wave 900 White 4200lm 4000K Ra>80 On/Off

Article code
111280
EAN
7021981112806
Back to articlelist

Overview

Wattage
31W
Efficacy
135 lm/W
Lumen
4200lm
IP Class
IP44
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L70/B10>
Mounting
Surface, Indoor
  • indoor
  • ik05
  • ip44
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 111280 Mounting instruction Wave 900_User Manual Eulumdat file (ldt) 7021981112806_Wave 900 White 4200lm 4000K Ra80 OnOff

See more

Dialux file (uld) 7021981112806_Wave 900 White 4200lm 4000K Ra80 OnOff Relux file (rolf) 7021981112806_Wave_900_White_4200lm_4000K_Ra_80_On_Off EPD NEPD-8575-8243_Wave-900 Revit file - Generic Wave 600 - generic Revit file - Ceiling Based Wave 600 - ceiling based CE Declaration Wave

How to specify

Text copied to clipboard

Wave 900 White 4200lm 4000K Ra>80 On/Off, Article code: 111280, EAN: 7021981112806, IP44, IK05, Electrical: Wattage: 31W, System wattage: 31W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 14, B16: 23, C10: 22, C16: 36, Leakage current (mA): 0.31, Light technic: Type of light source: LED, Light source included: Yes, Luminous flux: 4200lm, Efficacy: 135 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B10>100,000, Lifetime: L80/B10>70,000, Light distribution: Direct, Optic: Opal, Beam angle: 110°, UGR: UGR<25, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IK Class: IK05, IP Class: IP44, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Steel, Aluminium, Colour: White (RAL 9003), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Module: 900, Connection: Screwless terminal block, Dimensions: Length (mm) L: 920, Width (mm) W: 151, Height (mm) H: 54, Weight (kg) gross/net: 2.64 / 2.121, Packaging: Packaging dimensions (mm): 930 x 160 x 60

Electrical

Wattage
31W
System wattage
31W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 14, B16: 23, C10: 22, C16: 36
Leakage current (mA)
0.31

Light technic

Type of light source
LED
Light source included
Yes
Luminous flux
4200lm
Efficacy
135 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B10>100,000
Lifetime
L80/B10>70,000
Light distribution
Direct
Optic
Opal

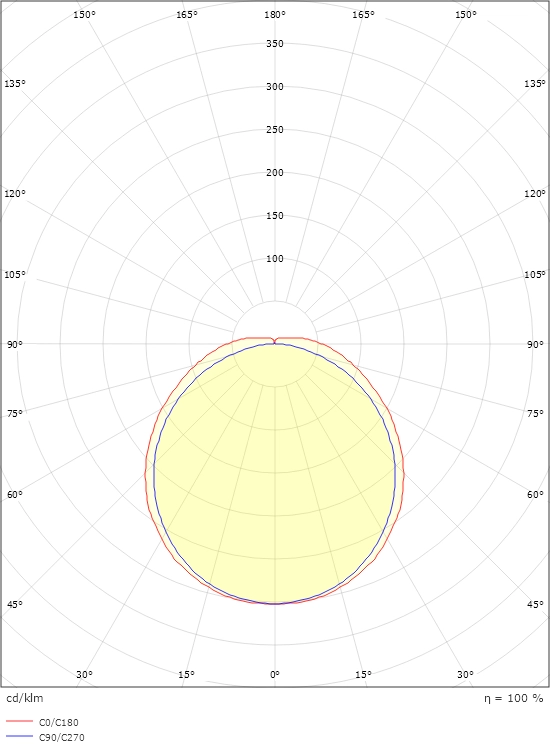

Beam angle
110°
UGR
UGR<25

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IK Class
IK05
IP Class
IP44

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Steel, Aluminium
Colour
White (RAL 9003)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Module
900
Connection
Screwless terminal block

Dimensions

Length (mm) L
920
Width (mm) W
151
Height (mm) H
54
Weight (kg) gross/net
2.64 / 2.121

Packaging

Packaging dimensions (mm)
930 x 160 x 60
