Arena Eco

Arena ECO 1200 Medium 11370lm 4000K Ra>80 On/Off

Article code
607009
EAN
7021986070095
Replaces
607000
Back to articlelist

Overview

Efficacy
150 lm/W
Lumen
11370lm
IP Class
IP23
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • el
  • dipswitch
  • ik10
  • ip23
  • klasse_1

Tools

Downloads

Specification sheet 607009 Eulumdat file (ldt) 7021986070095_Arena Eco 1200 Medium 11370lm 4000K Ra80 OnOff Dialux file (uld) 7021986070095_Arena Eco 1200 Medium 11370lm 4000K Ra80 OnOff

See more

Relux file (rolf) 7021986070095_Arena_Eco_1200_Medium_11370lm_4000K_Ra_80_On_Off EPD NEPD-11929-11887_Arena-Eco-1200-Medium Revit file - Generic Arena ECO_1200 - generic Revit file - Ceiling Based Arena Eco 1200 - ceiling based Mounting instruction Arena Eco_User Manual CE Declaration Arena Eco ENEC Certificate Arena Eco

How to specify

Text copied to clipboard

Arena ECO 1200 Medium 11370lm 4000K Ra>80 On/Off, Article code: 607009, EAN: 7021986070095, IP23, IK10, Electrical: System wattage: 76W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 18, B16: 30, C10: 31, C16: 51, Leakage current (mA): 0.22, Light technic: Type of light source: LED, Luminous flux: 11370lm, Efficacy: 150 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Beam angle: 60°, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP23, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Steel, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Module: 1200, Connection: 5-pole screwless terminal block with 5x2,5mm2 through wiring, Dimensions: Length (mm) L: 1184, Width (mm) W: 134, Height (mm) H: 72, Weight (kg) gross/net: 3.6 / 3.15, Packaging: Packaging dimensions (mm): 1192 x 76 x 143

Electrical

System wattage
76W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 18, B16: 30, C10: 31, C16: 51
Leakage current (mA)
0.22

Light technic

Type of light source
LED
Luminous flux
11370lm
Efficacy
150 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

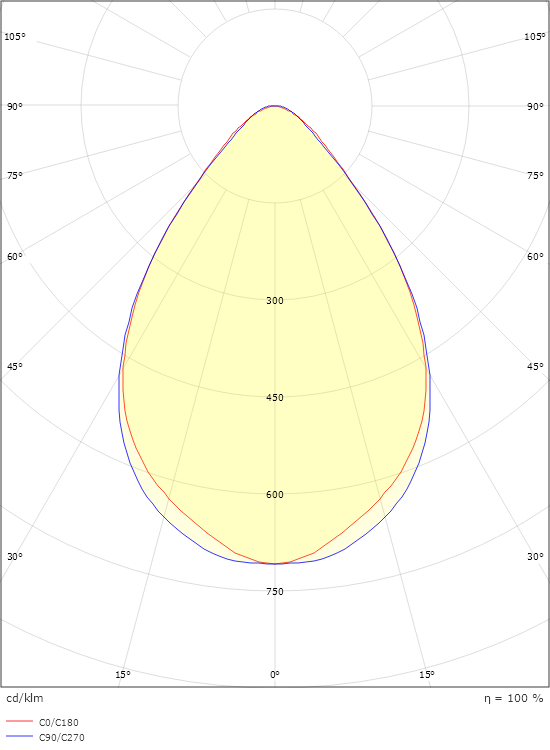

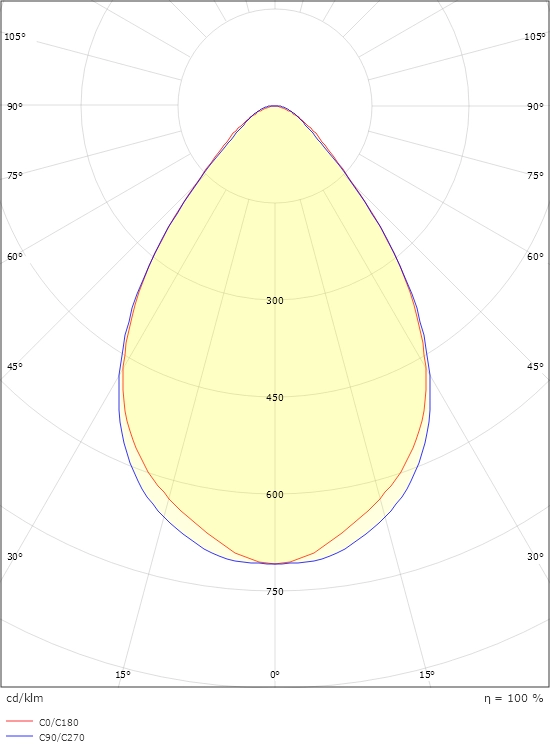

Light distribution
Direct
Beam angle
60°

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP23

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Steel
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Module
1200
Connection
5-pole screwless terminal block with 5x2,5mm2 through wiring

Dimensions

Length (mm) L
1184
Width (mm) W
134
Height (mm) H
72
Weight (kg) gross/net
3.6 / 3.15

Packaging

Packaging dimensions (mm)
1192 x 76 x 143
