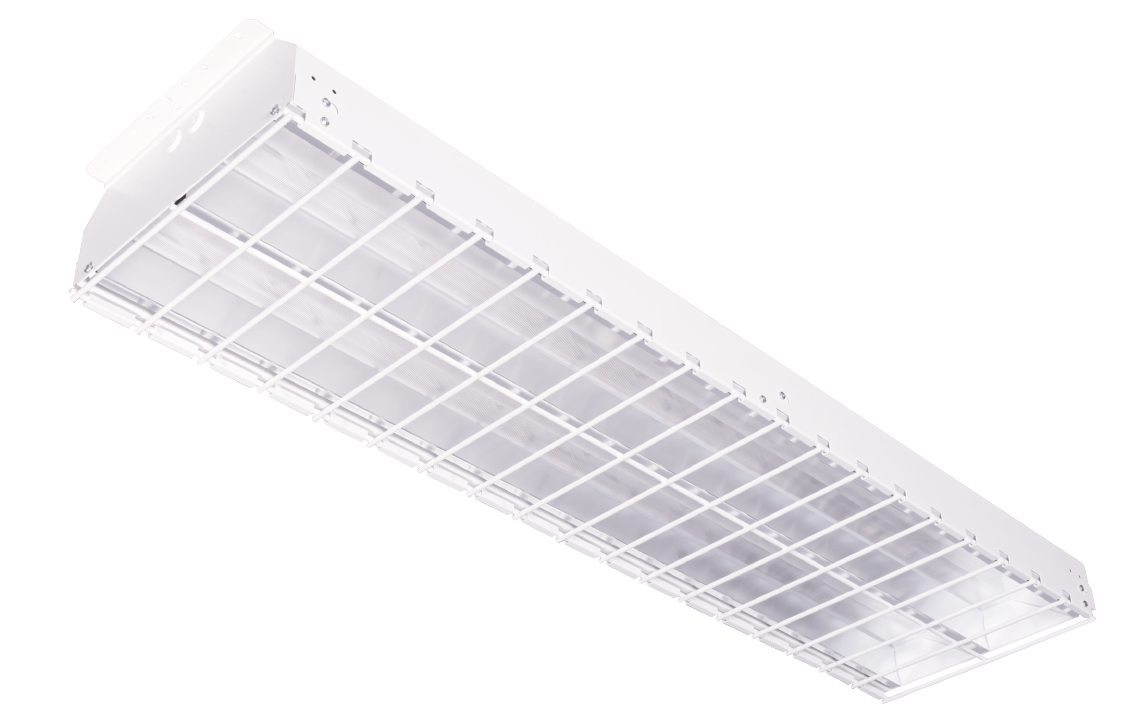

Arena Sport Asymmetric
Arena Sport Asymmetric 1200 White 20540lm 4000K Ra>80 DALI-2
- Article code
- 8246096508
- EAN
- 5703821183680
Overview
- Efficacy
- 147 lm/W
- Lumen
- 20540lm
- IP Class
- IP23
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
Electrical
- System wattage
- 140W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 9, B16: 15, C10: 16, C16: 26
- Leakage current (mA)
- 0.31
Light technic
- Type of light source
- LED
- Luminous flux
- 20540lm
- Efficacy
- 147 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L80/B20>100,000
- Lifetime
- L91>50,000

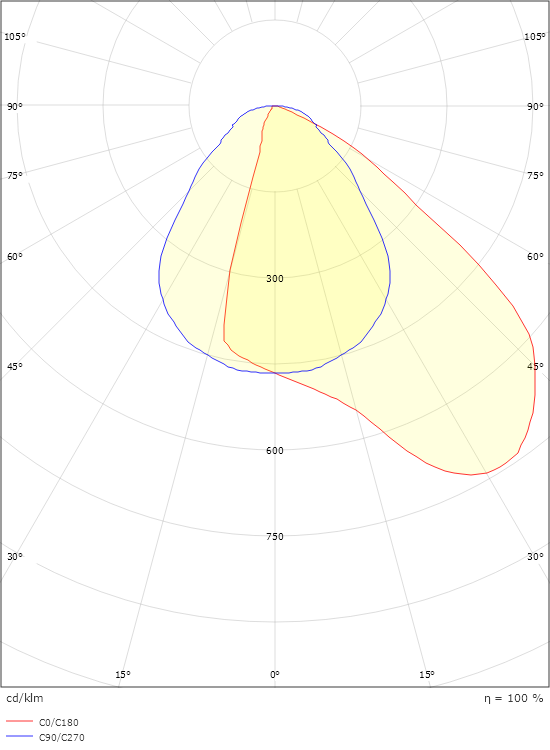

- Light distribution
- Asymmetric
- Optic
- Satin Matt Reflector
Control/Dimming
- Type
- DALI-2
Protection
- Luminaire class
- Class I
- IP Class
- IP23
- Surge protection
- 1/2 kV
Energy and approvals
- Contains light source of energy class
- B
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Sheet steel
- Optics
- Acrylic (PMMA)
Mounting/Connection
- Mounting
- Surface, Indoor
- Module
- 1200
- Connection
- 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring
Dimensions
- Length (mm) L
- 1205
- Width (mm) W
- 305
- Height (mm) H
- 114
- Weight (kg) gross/net
- 11.5 / 11
Packaging
- Packaging dimensions (mm)
- 1228 x 310 x 118
