Arena

How to specify

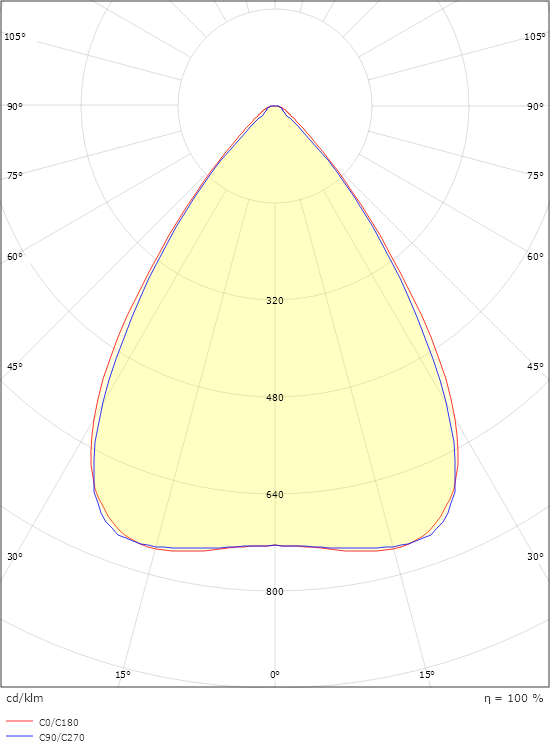

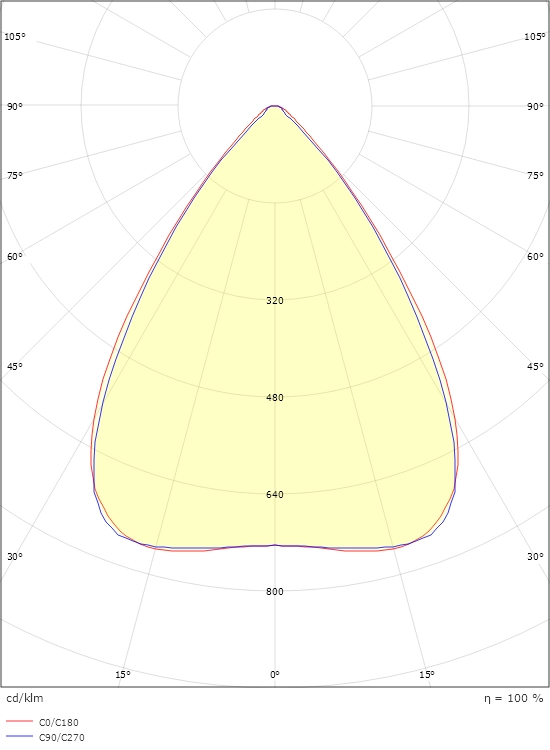

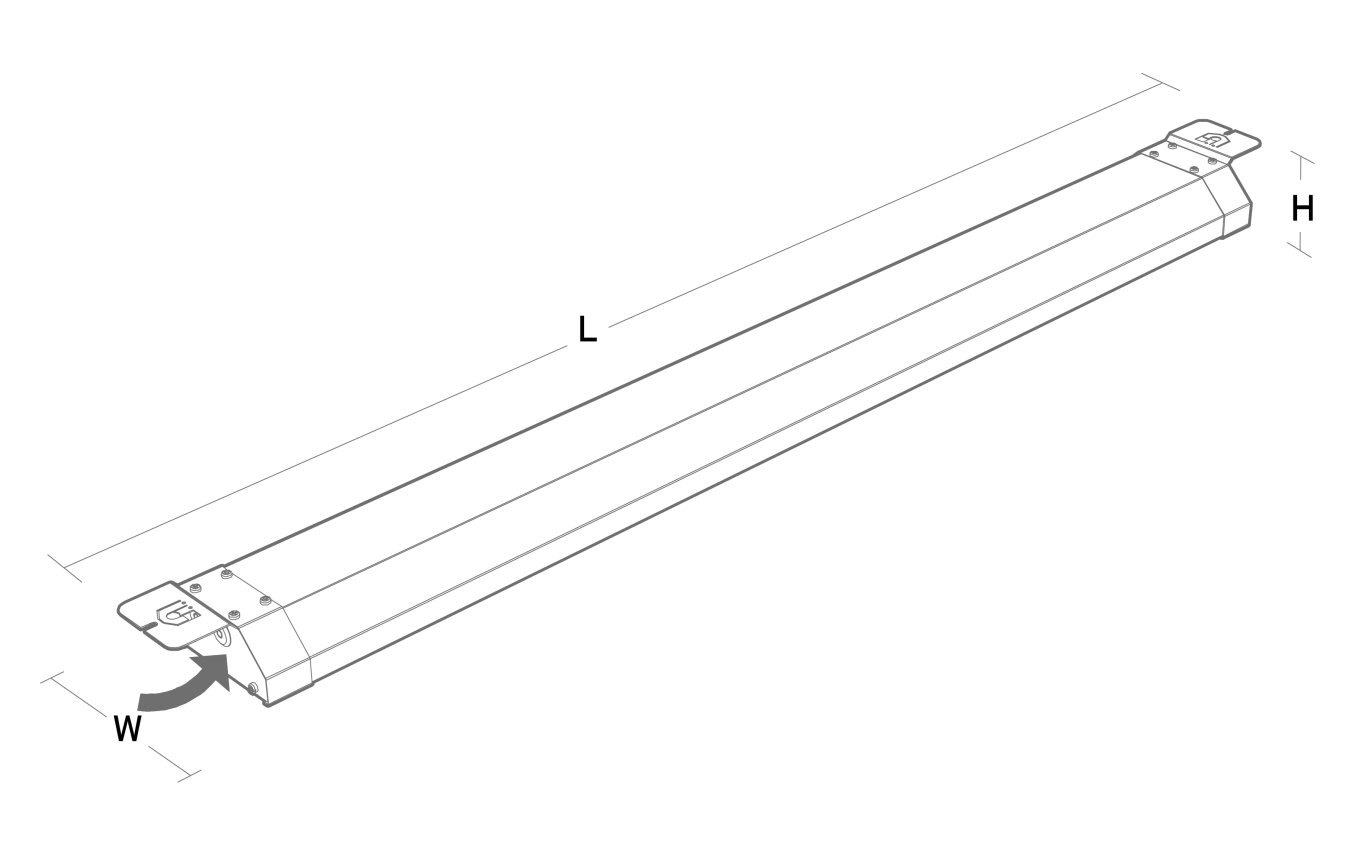

Arena 1200 White Medium 11830lm 4000K Ra>80 On/Off, Article code: 8246092476, EAN: 5703821174473, IP23, IK08, Electrical: System wattage: 79W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 10, B16: 16, C10: 17, C16: 27, Leakage current (mA): 0.31, Light technic: Type of light source: LED, Light source included: Yes, Luminous flux: 11830lm, Efficacy: 150 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L90/B10>70,000, Lifetime: L80/B20>100,000, Minimum ambient temperature: -25°C, Light distribution: Direct, Optic: Lens Medium, Beam angle: Medium, UGR: UGR<19, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IK Class: IK08, IP Class: IP23, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Colour: White (RAL 9010, 20% gloss), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Suspended or surface, Indoor, Module: 1200, Connection: 5-pole screwless terminal block with 5x2,5mm2 through wiring, Dimensions: Length (mm) L: 1194, Width (mm) W: 138, Height (mm) H: 63, Weight (kg) gross/net: 3.8 / 3.6, Packaging: Packaging dimensions (mm): 1285 x 148 x 65
