Arena

How to specify

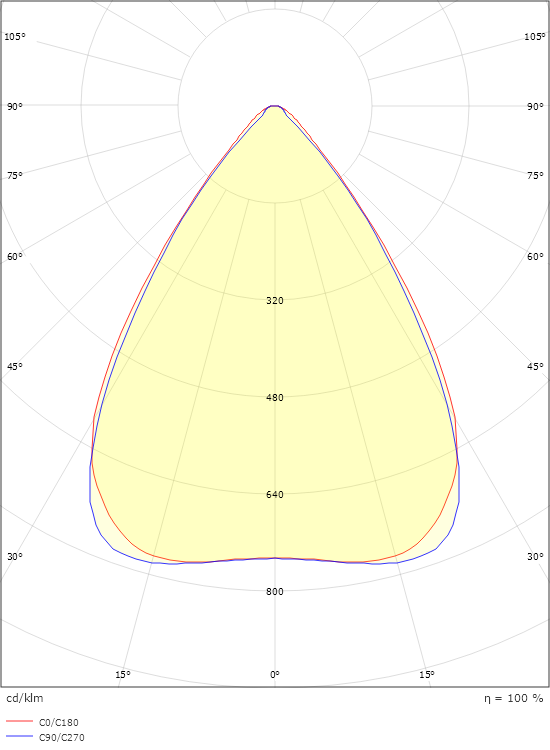

Arena 1200 White Medium 11720lm 4000K Ra>80 DALI-2, Article code: 8246092489, EAN: 5703821174480, IP23, IK08, Electrical: System wattage: 71W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 9, B16: 15, C10: 16, C16: 26, Leakage current (mA): 0,9, Light technic: Type of light source: LED, Light source included: Yes, Luminous flux: 11720lm, Efficacy: 165 lm/W, Constant lumen output option: Yes, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L90/B10>70,000, Lifetime: L80/B20>100,000, Minimum ambient temperature: -25°C, Light distribution: Direct, Optic: Lens Medium, Beam angle: Medium, Visible flicker (PstLM): 0,03, Stroboscopic flicker (SVM): 0, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class I, IK Class: IK08, IP Class: IP23, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: Sheet steel, Colour: White (RAL 9010, 20% gloss), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Suspended or surface, Indoor, Module: 1200, Connection: 7-pole screwless terminal block with 5x2,5mm² (+DALI) through wiring, Dimensions: Length (mm) L: 1194, Width (mm) W: 138, Height (mm) H: 63, Weight (kg) gross/net: 3.8 / 3.6, Packaging: Packaging dimensions (mm): 1285 x 148 x 65
