Arena

Arena 1200 White Wide 23230lm 4000K Ra>80 On/Off

Article code
8246093925
EAN
5703821176378
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Efficacy
166 lm/W
Lumen
23230lm
IP Class
IP23
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
70,000 L90/B10>
Mounting
Suspended or surface, Indoor
    5 years Warranty
  • indoor
  • el
  • ik08
  • ip23
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246093925 Revit file - Generic Arena 156W - generic Revit file - Ceiling Based Arena 156W - ceiling based

See more

Mounting instruction Arena Double Mounting instruction Eulumdat file (ldt) 5703821176378_Arena 1200 White Wide 23230lm 4000K Ra80 OnOff Dialux file (uld) 5703821176378_Arena 1200 White Wide 23230lm 4000K Ra80 OnOff Relux file (rolf) 5703821176378_Arena_1200_White_Wide_23230lm_4000K_Ra_80_On_Off EPD NEPD-8951-8606_Arena-1200-high-lumen CE Declaration Arena

How to specify

Text copied to clipboard

Arena 1200 White Wide 23230lm 4000K Ra>80 On/Off, Article code: 8246093925, EAN: 5703821176378, IP23, IK08, Electrical: System wattage: 140W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 5, B16: 8, C10: 8, C16: 13, Light technic: Type of light source: LED, Luminous flux: 23230lm, Efficacy: 166 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L90/B10>70,000, Lifetime: L80/B20>100,000, Minimum ambient temperature: -25°C, Light distribution: Direct, Optic: Lens Wide, Beam angle: Wide, UGR: UGR<25, Photobiological safety: RG 1, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IK Class: IK08, IP Class: IP23, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Colour: White (RAL 9010, 20% gloss), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Suspended or surface, Indoor, Module: 1200, Connection: 5-pole screwless terminal block with 5x2,5mm2 through wiring, Dimensions: Length (mm) L: 1256, Width (mm) W: 295, Height (mm) H: 57, Weight (kg) gross/net: 8.2 / 8, Packaging: Packaging dimensions (mm): 1285 x 300 x 65

Electrical

System wattage
140W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 5, B16: 8, C10: 8, C16: 13

Light technic

Type of light source
LED
Luminous flux
23230lm
Efficacy
166 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L90/B10>70,000
Lifetime
L80/B20>100,000
Minimum ambient temperature
-25°C

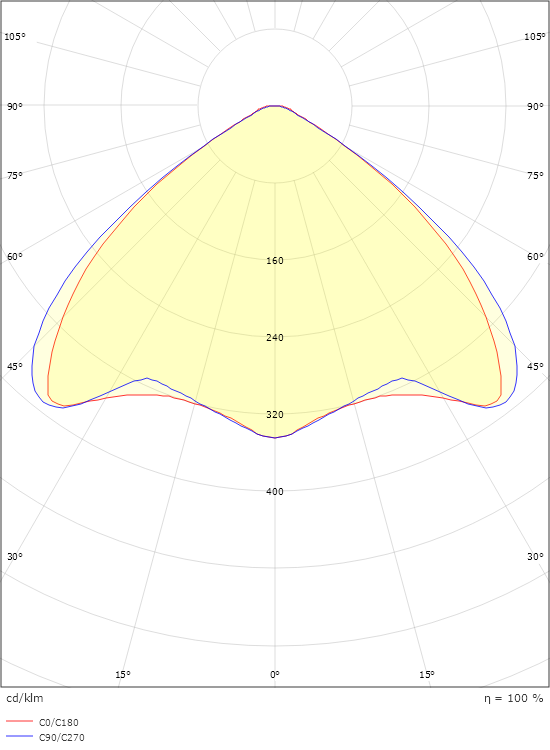

Light distribution
Direct
Optic
Lens Wide
Beam angle
Wide

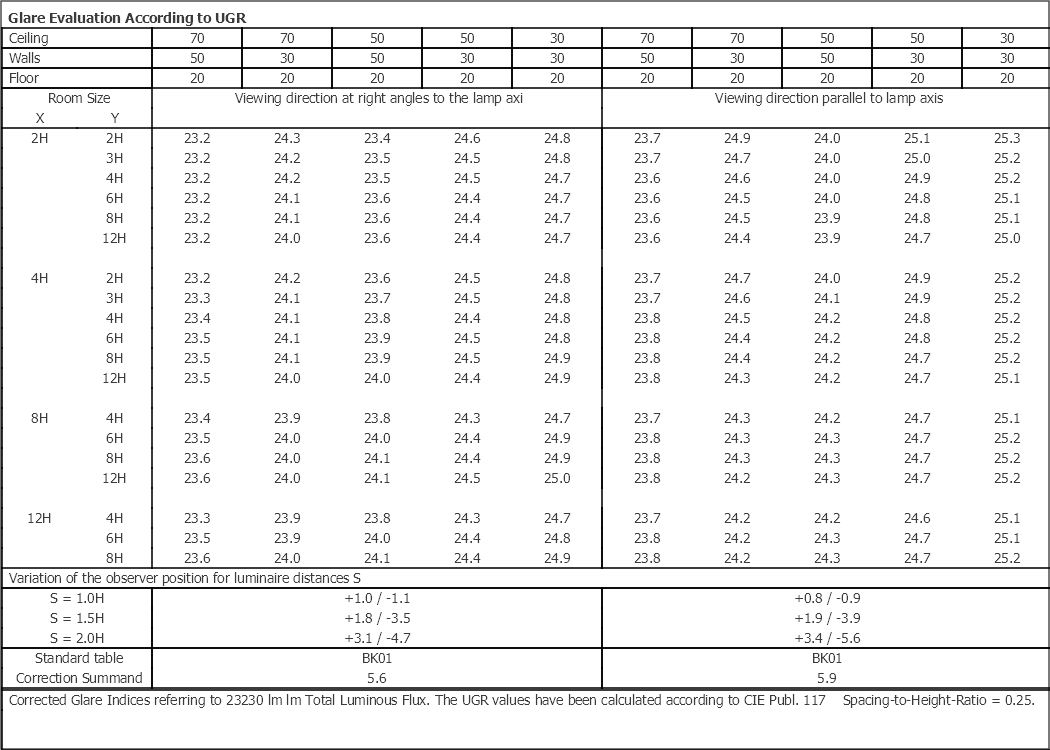

UGR
UGR<25
Photobiological safety
RG 1

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IK Class
IK08
IP Class
IP23

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel
Colour
White (RAL 9010, 20% gloss)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Suspended or surface, Indoor
Module
1200
Connection
5-pole screwless terminal block with 5x2,5mm2 through wiring

Dimensions

Length (mm) L
1256
Width (mm) W
295
Height (mm) H
57
Weight (kg) gross/net
8.2 / 8

Packaging

Packaging dimensions (mm)
1285 x 300 x 65
