Arena

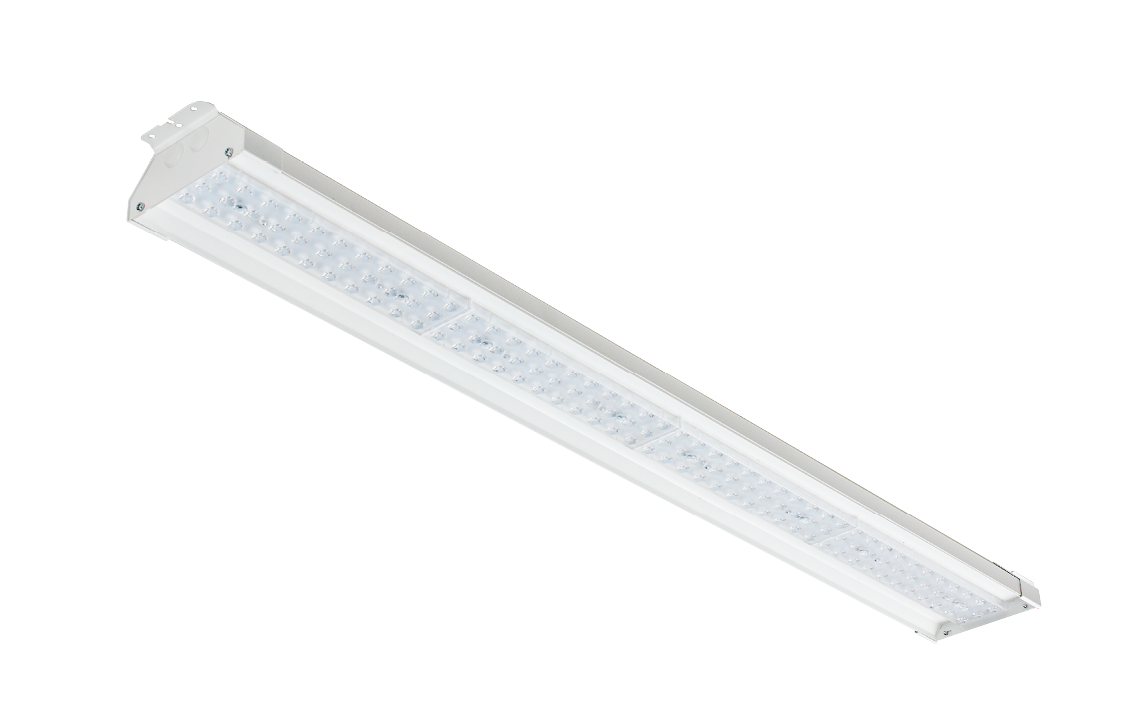

Arena 1200 White Wide 8980lm 4000K Ra>80 On/Off

Article code
8246094212
EAN
5703821177030
Back to articlelist

Overview

Efficacy
158 lm/W
Lumen
8980lm
IP Class
IP23
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
70,000 L90/B10>
Mounting
Suspended or surface, Indoor
    5 years Warranty
  • indoor
  • el
  • ik08
  • ip23
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246094212 Eulumdat file (ldt) 5703821177030_Arena 1200 White Wide 8980lm 4000K Ra80 OnOff Dialux file (uld) 5703821177030_Arena 1200 White Wide 8980lm 4000K Ra80 OnOff

See more

Relux file (rolf) 5703821177030_Arena_1200_White_Wide_8980lm_4000K_Ra_80_On_Off EPD NEPD-8953-8605_Arena-1200 Revit file - Generic Arena 1200 - generic Revit file - Ceiling Based Arena 1200 - ceiling based Mounting instruction 211124_Arena 1200 Short_User Manual CE Declaration Arena

How to specify

Text copied to clipboard

Arena 1200 White Wide 8980lm 4000K Ra>80 On/Off, Article code: 8246094212, EAN: 5703821177030, IP23, IK08, Electrical: System wattage: 57W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 16, B16: 26, C10: 27, C16: 44, Leakage current (mA): 0.54, Light technic: Type of light source: LED, Luminous flux: 8980lm, Efficacy: 158 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L90/B10>70,000, Lifetime: L80/B20>100,000, Minimum ambient temperature: -25°C, Light distribution: Direct, Optic: Lens Wide, Beam angle: Wide, UGR: UGR<25, Photobiological safety: RG 1, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IK Class: IK08, IP Class: IP23, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Colour: White (RAL 9010, 20% gloss), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Suspended or surface, Indoor, Module: 1200, Connection: 5-pole screwless terminal block with 5x2,5mm2 through wiring, Dimensions: Length (mm) L: 1194, Width (mm) W: 138, Height (mm) H: 63, Weight (kg) gross/net: 3.8 / 3.6, Packaging: Packaging dimensions (mm): 1285 x 148 x 65

Electrical

System wattage
57W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 16, B16: 26, C10: 27, C16: 44
Leakage current (mA)
0.54

Light technic

Type of light source
LED
Luminous flux
8980lm
Efficacy
158 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L90/B10>70,000
Lifetime
L80/B20>100,000
Minimum ambient temperature
-25°C
Light distribution
Direct
Optic
Lens Wide
Beam angle
Wide
UGR
UGR<25
Photobiological safety
RG 1

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IK Class
IK08
IP Class
IP23

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel
Colour
White (RAL 9010, 20% gloss)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Suspended or surface, Indoor
Module
1200
Connection
5-pole screwless terminal block with 5x2,5mm2 through wiring

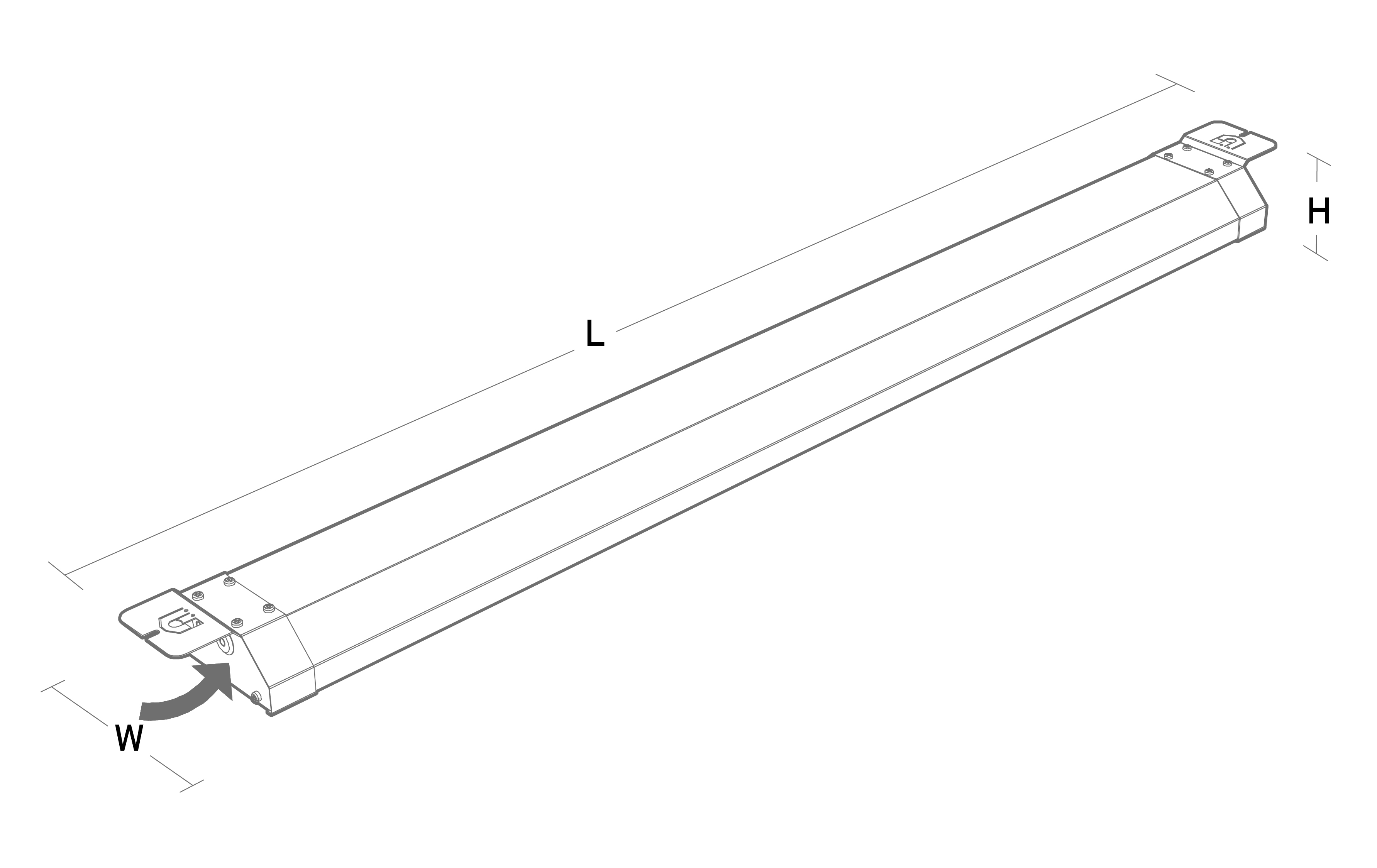

Dimensions

Length (mm) L
1194
Width (mm) W
138
Height (mm) H
63
Weight (kg) gross/net
3.8 / 3.6

Packaging

Packaging dimensions (mm)
1285 x 148 x 65
