Langfoss Maxi

Langfoss Maxi Graphite 40350lm 4000K Ra>70 On/Off

Article code
641945
EAN
7021986419450
Replaces
641923
Back to articlelist

Overview

Efficacy
151 lm/W
Lumen
40350lm
IP Class
IP66
Colour temperature
4000K
Colour rendering (Ra)
Ra>70
Lifetime
100,000 L80/B50>
Mounting
Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • ik08
  • ip66
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 641945 Revit file - Generic Langfoss Maxi - generic Revit file - Face Based Langfoss Maxi - face based

See more

Eulumdat file (ldt) 7021986419450_Langfoss Maxi Graphite 40350lm 4000K Ra70 OnOff Dialux file (uld) 7021986419450_Langfoss Maxi Graphite 40350lm 4000K Ra70 OnOff Relux file (rolf) 7021986419450_Langfoss_Maxi_Graphite_40350lm_4000K_Ra_70_On_Off EPD NEPD-5843-5124_Langfoss-Maxi-40000 Mounting instruction Langfoss Maxi_User Manual CE Declaration Langfoss Maxi

How to specify

Text copied to clipboard

Langfoss Maxi Graphite 40350lm 4000K Ra>70 On/Off, Article code: 641945, EAN: 7021986419450, IP66, IK08, Electrical: System wattage: 267W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 1, B16: 2, C10: 2, C16: 3, Light technic: Type of light source: LED, Light source included: Yes, Luminous flux: 40350lm, Efficacy: 151 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>70, MacAdams factor: SDCM: 3, Lifetime: L80/B50>100,000, Lifetime: L90/B50>50,000, Light distribution: Asymmetric, Optic: Lens, ULOR (<1%): Yes, up to 21° tilt angle, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IK Class: IK08, IP Class: IP66, Surge protection: 5/10 kV, Materials and finish: Housing: Die-cast aluminium, Colour: Graphite, Optics: Tempered glass, Mounting/Connection: Mounting: Indoor / Outdoor, Cable: Cable 3x1mm² 2m, H07RN-F, Wind projected area: 0,2098m² - Max 50 kg, Dimensions: Length (mm) L: 552, Width (mm) W: 443, Height (mm) H: 85, Weight (kg) gross/net: 16 / 13, Packaging: Packaging dimensions (mm): 508 x 475 x 120

Electrical

System wattage
267W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 1, B16: 2, C10: 2, C16: 3

Light technic

Type of light source
LED
Light source included
Yes
Luminous flux
40350lm
Efficacy
151 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>70
MacAdams factor
SDCM: 3
Lifetime
L80/B50>100,000
Lifetime
L90/B50>50,000

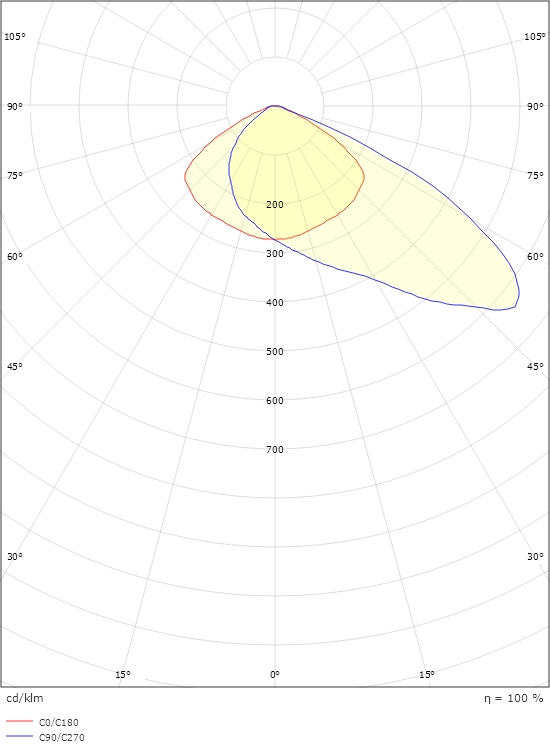

Light distribution
Asymmetric
Optic
Lens
ULOR (<1%)
Yes, up to 21° tilt angle

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IK Class
IK08
IP Class
IP66
Surge protection
5/10 kV

Materials and finish

Housing
Die-cast aluminium
Colour
Graphite
Optics
Tempered glass

Mounting/Connection

Mounting
Indoor / Outdoor
Cable
Cable 3x1mm² 2m, H07RN-F
Wind projected area
0,2098m² - Max 50 kg

Dimensions

Length (mm) L
552
Width (mm) W
443
Height (mm) H
85
Weight (kg) gross/net
16 / 13

Packaging

Packaging dimensions (mm)
508 x 475 x 120
