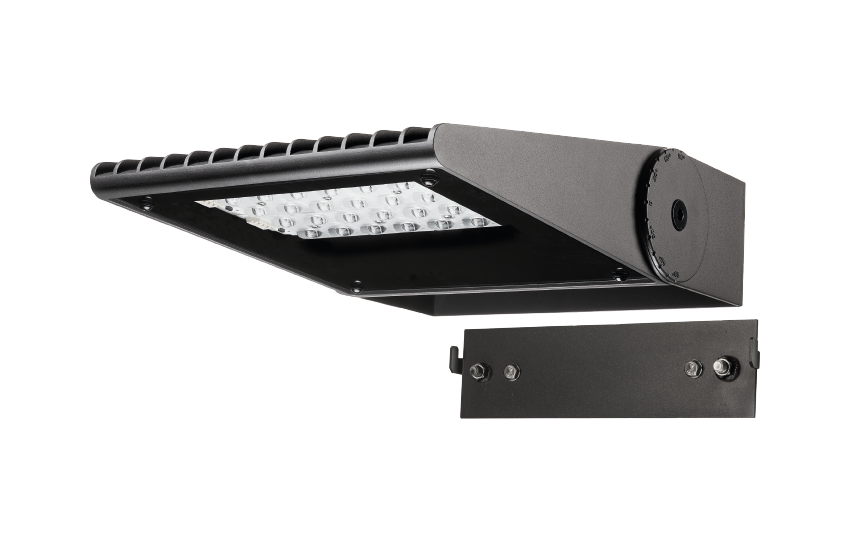

Langfoss Mini

Langfoss is a powerful floodlight luminaire suitable for lighting large spaces, transport and storage areas, playgrounds, courts and car parks. Can also be used as facade lighting. Nordic design for Nordic conditions. The sloping top allows snow to slide off, and the bracket can withstand heavy loads. Asymmetrical optics send the light where it is needed, and the mounting bracket can be angled as required.

Super simple installation with two-piece mounting bracket with hooks. Die-cast powder-coated aluminium with tempered glass front. Accessories for flexible installation: post for mounting top, post for mounting sides, corner bracket and extension cable.

Article list

Langfoss Mini

Indoor, Outdoor Asymmetric SDCM: 3 Class I IK07 IP66 Ra>70 L80/B50> 100,000

Filters

Colour temperature

System wattage

Lumen

Control gear

					Others	Tools
641931	3000K	68W	8640lm	DALI-2	127 lm/W, L362 x W265 x H85, Cable 5x1mm² 2m, H07RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
641938	3000K	35W	4850lm	On/Off	139 lm/W, L362 x W265 x H85, Cable 3x1mm² 2m, H07RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
641939	3000K	68W	8640lm	On/Off	127 lm/W, L362 x W265 x H85, Cable 3x1mm² 2m, H07RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
641933	4000K	68W	9330lm	DALI-2	137 lm/W, L362 x W265 x H85, Cable 5x1mm² 2m, H07RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
641940	4000K	35W	5240lm	On/Off	150 lm/W, L362 x W265 x H85, Cable 3x1mm² 2m, H07RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
641941	4000K	68W	9330lm	On/Off	137 lm/W, L362 x W265 x H85, Cable 3x1mm² 2m, H07RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

					Others	Tools
641931	3000K	68W	8640lm	DALI-2	127 lm/W, L362 x W265 x H85, Cable 5x1mm² 2m, H07RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
641938	3000K	35W	4850lm	On/Off	139 lm/W, L362 x W265 x H85, Cable 3x1mm² 2m, H07RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
641939	3000K	68W	8640lm	On/Off	127 lm/W, L362 x W265 x H85, Cable 3x1mm² 2m, H07RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
641933	4000K	68W	9330lm	DALI-2	137 lm/W, L362 x W265 x H85, Cable 5x1mm² 2m, H07RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
641940	4000K	35W	5240lm	On/Off	150 lm/W, L362 x W265 x H85, Cable 3x1mm² 2m, H07RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
641941	4000K	68W	9330lm	On/Off	137 lm/W, L362 x W265 x H85, Cable 3x1mm² 2m, H07RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
641916	Langfoss Mini Graphite Corner bracket	L139 x W249 x H180	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
641917	Langfoss Mini Ø60/76 Graphite Pole-top	L142 x W249 x H112	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
641918	Langfoss Mini Ø60/76 Graphite Pole bracket	L67 x W249 x H89	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
641919	Langfoss Mini Ø89/108 Graphite Pole bracket	L67 x W249 x H89	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
641949	Langfoss/Mini/Maxi Graphite Fixing Plate for elementwall	L430 x W250 x H7	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
820259	Start current limiter DIN 16A	L90 x W18 x H58	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
