Langfoss Mini

Langfoss Mini Graphite 8640lm 3000K Ra>70 DALI-2

Article code
641931
EAN
7021986419313
Back to articlelist

Overview

Efficacy
127 lm/W
Lumen
8640lm
IP Class
IP66
Colour temperature
3000K
Colour rendering (Ra)
Ra>70
Lifetime
100,000 L80/B50>
Mounting
Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • el
  • ik07
  • ip66
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 641931 Revit file - Generic Langfoss mini - generic Revit file - Face Based Langfoss Mini - face based

See more

Mounting instruction Langfoss Mini Dali_User Manual Eulumdat file (ldt) 7021986419313_Langfoss Mini Graphite 8640lm 3000K Ra70 DALI Dialux file (uld) 7021986419313_Langfoss Mini Graphite 8640lm 3000K Ra70 DALI Relux file (rolf) 7021986419313_Langfoss_Mini_Graphite_8640lm_3000K_Ra_70_DALI EPD NEPD-8079-7783_Langfoss-Mini-9000 CE Declaration Langfoss Mini

How to specify

Text copied to clipboard

Langfoss Mini Graphite 8640lm 3000K Ra>70 DALI-2, Article code: 641931, EAN: 7021986419313, IP66, IK07, Electrical: System wattage: 68W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 6, B16: 10, C10: 10, C16: 17, Light technic: Type of light source: LED, Luminous flux: 8640lm, Efficacy: 127 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>70, MacAdams factor: SDCM: 3, Lifetime: L80/B50>100,000, Lifetime: L90/B10>50,000, Minimum ambient temperature: -40°C, Light distribution: Asymmetric, Optic: Lens, ULOR (<1%): Yes, up to 22° tilt angle, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class I, IK Class: IK07, IP Class: IP66, Surge protection: Integrated (min. 4 kV), Materials and finish: Housing: Die-cast aluminium, Colour: Graphite, Optics: Tempered glass, Mounting/Connection: Mounting: Indoor / Outdoor, Cable: Cable 5x1mm² 2m, H07RN-F, Wind projected area: 0,0756m² - Max 10,2 kg, Dimensions: Length (mm) L: 362, Width (mm) W: 265, Height (mm) H: 85, Weight (kg) gross/net: 6.3 / 5.7, Packaging: Packaging dimensions (mm): 395 x 280 x 100

Electrical

System wattage
68W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 6, B16: 10, C10: 10, C16: 17

Light technic

Type of light source
LED
Luminous flux
8640lm
Efficacy
127 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>70
MacAdams factor
SDCM: 3
Lifetime
L80/B50>100,000
Lifetime
L90/B10>50,000
Minimum ambient temperature
-40°C

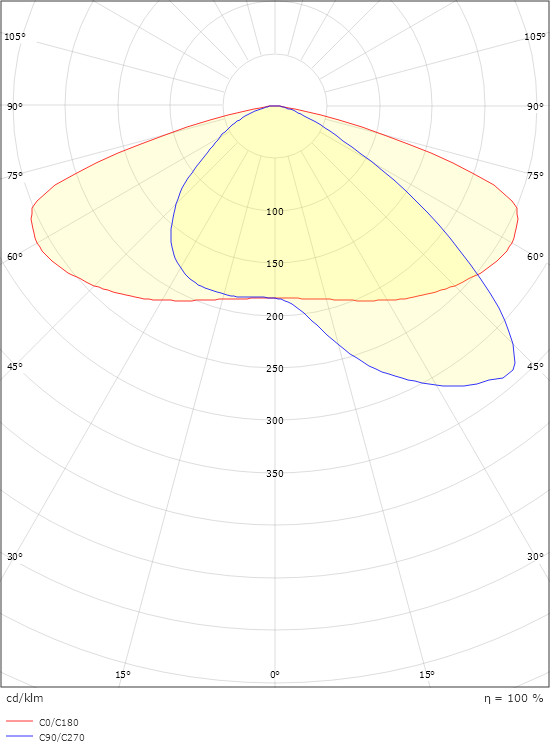

Light distribution
Asymmetric
Optic
Lens
ULOR (<1%)
Yes, up to 22° tilt angle

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class I
IK Class
IK07
IP Class
IP66
Surge protection
Integrated (min. 4 kV)

Materials and finish

Housing
Die-cast aluminium
Colour
Graphite
Optics
Tempered glass

Mounting/Connection

Mounting
Indoor / Outdoor
Cable
Cable 5x1mm² 2m, H07RN-F
Wind projected area
0,0756m² - Max 10,2 kg

Dimensions

Length (mm) L
362
Width (mm) W
265
Height (mm) H
85
Weight (kg) gross/net
6.3 / 5.7

Packaging

Packaging dimensions (mm)
395 x 280 x 100
