Skilpadde

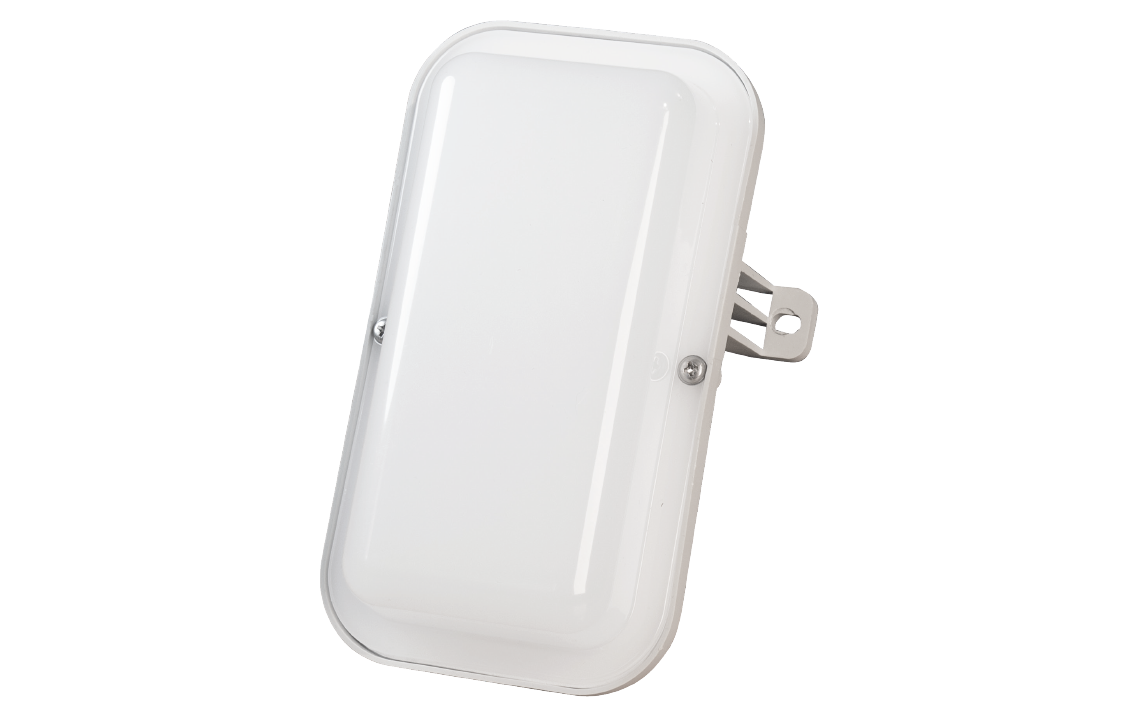

Skilpadde Grey 1010lm 4000K Ra>80 On/Off
- SG code
- 143098
- EAN
- 7021981430986
Overview
- Efficacy
- 144 lm/W
- Lumen
- 1010lm
- Wattage
- 7W
- IP Class
- IP65
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor / Outdoor
Tools
Downloads
Specification sheet
143098
pdf
(Opens in new tab)
Mounting instruction
Skilpadde LED_User Manual
pdf
(Opens in new tab)
CE Declaration
Skilpadde
pdf
(Opens in new tab)
Relux file (rolf)
7021981430986_Skilpadde_Grey_1010lm_4000K_Ra_80_On_Off
rolf
Eulumdat file (ldt)
7021981430986_Skilpadde Grey 1010lm 4000K Ra80 OnOff
ldt
Dialux file (uld)
7021981430986_Skilpadde Grey 1010lm 4000K Ra80 OnOff
uld
Revit file - Generic
Skilpadde LED - generic
rfa
Revit file - Face Based
Skilpadde - face based
rfa
Electrical
- Wattage
- 7W
- System wattage
- 7W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 72, B16: 116, C10: 72, C16: 116
Light technic
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 1010lm
- Efficacy
- 144 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L80/B20>100,000
- Lifetime
- L90>50,000

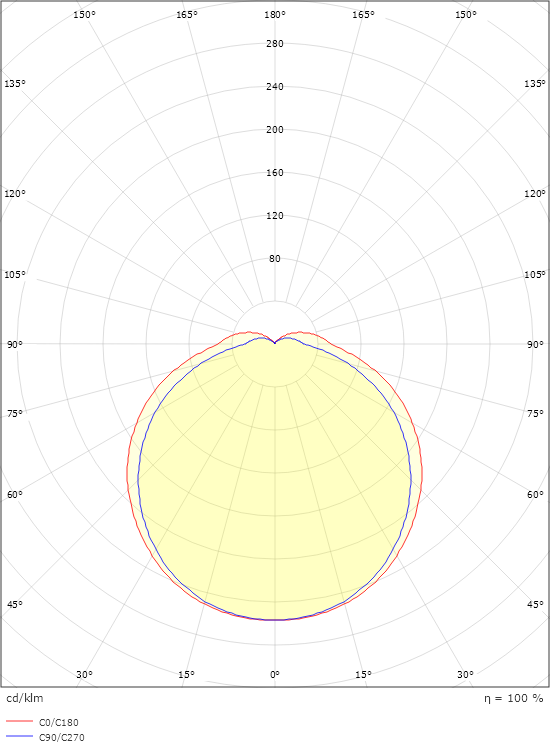

- Light distribution
- Direct
- Optic
- Plastic Opal
- Beam angle
- 131°

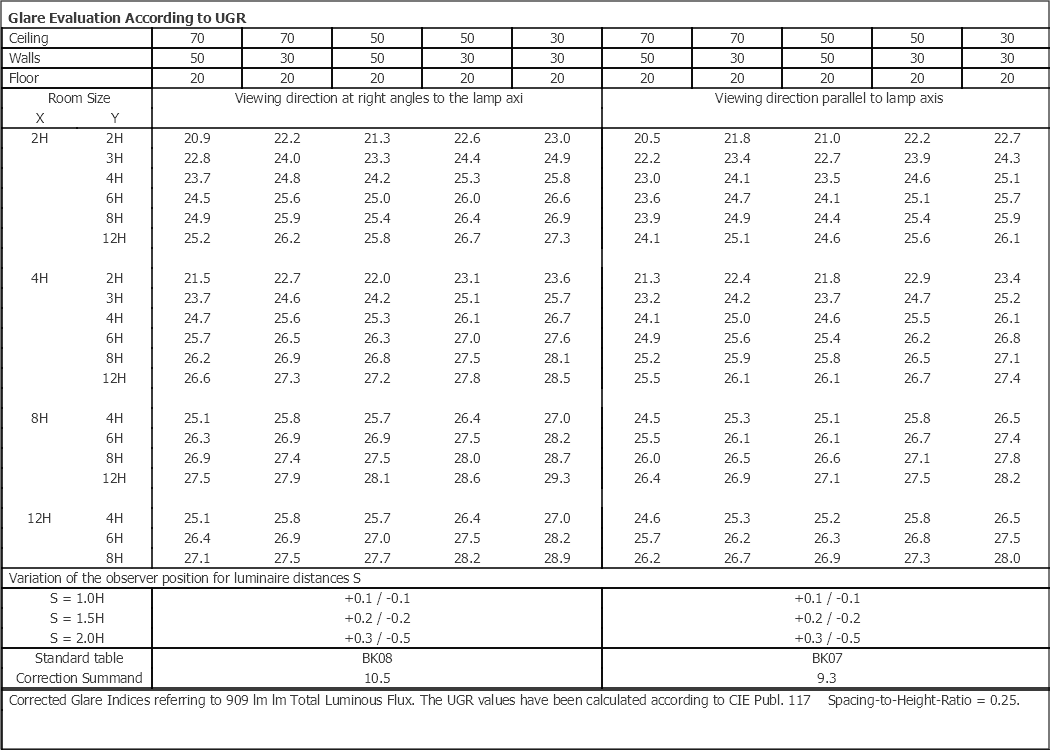

- UGR
- UGR<28
- Visible flicker (PstLM)
- 0.01
- Stroboscopic flicker (SVM)
- 0.01
Control/Dimming
- Type
- On/Off
Protection
- Luminaire class
- Class II
- IK Class
- IK07
- IP Class
- IP65
Energy and approvals
- Contains light source of energy class
- B
Materials and finish
- Housing
- Polypropylen (PP)
- Optics
- UV-stabilized polycarbonate
Mounting/Connection
- Mounting
- Surface, Indoor / Outdoor
- Connection
- Screwless terminal block
Dimensions
- Length (mm) L
- 175
- Width (mm) W
- 123
- Height (mm) H
- 68
- Weight (kg) gross/net
- 0.3
Packaging
- Number per pack
- 10
