Wave

Wave 1200 White 5530lm 4000K Ra>80 Sensor

Article code
111186
EAN
7021981111861
Back to articlelist

Overview

Efficacy
132 lm/W
Lumen
5530lm
IP Class
IP44
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L70/B10>
Mounting
Surface, Indoor
  • indoor
  • dipswitch
  • ik06
  • ip44
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 111186 Revit file - Generic Wave 1200 - generic Revit file - Ceiling Based Wave 1200 - ceiling based

See more

Mounting instruction Wave 1200 Sensor_User Manual Eulumdat file (ldt) 7021981111861_Wave 1200 White Sensor 5530lm 4000K Ra80 OnOff Dialux file (uld) 7021981111861_Wave 1200 White Sensor 5530lm 4000K Ra80 OnOff Relux file (rolf) 7021981111861_Wave_1200_White_Sensor_5530lm_4000K_Ra_80_On_Off EPD NEPD-8685-8345_Wave-1200-Sensor CE Declaration Wave

How to specify

Text copied to clipboard

Wave 1200 White 5530lm 4000K Ra>80 Sensor, Article code: 111186, EAN: 7021981111861, IP44, IK06, Electrical: System wattage: 42W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 14, B16: 23, C10: 22, C16: 36, Leakage current (mA): 0.31, Light technic: Type of light source: LED, Luminous flux: 5530lm, Efficacy: 132 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B10>100,000, Lifetime: L80/B10>70,000, Light distribution: Direct, Optic: Opal, Beam angle: 110°, UGR: UGR<25, Photobiological safety: RG 0, Control/Dimming: Type: Sensor, Protection: Luminaire class: Class I, IK Class: IK06, IP Class: IP44, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Sunda Hus: C+, Materials and finish: Housing: Steel, Aluminium, Colour: White (RAL 9003), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Module: 1200, Connection: Screwless terminal block, Dimensions: Length (mm) L: 1220, Width (mm) W: 151, Height (mm) H: 54, Weight (kg) gross/net: 3.12 / 2.5, Packaging: Packaging dimensions (mm): 1245 x 160 x 60

Electrical

System wattage
42W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 14, B16: 23, C10: 22, C16: 36
Leakage current (mA)
0.31

Light technic

Type of light source
LED
Luminous flux
5530lm
Efficacy
132 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B10>100,000
Lifetime
L80/B10>70,000

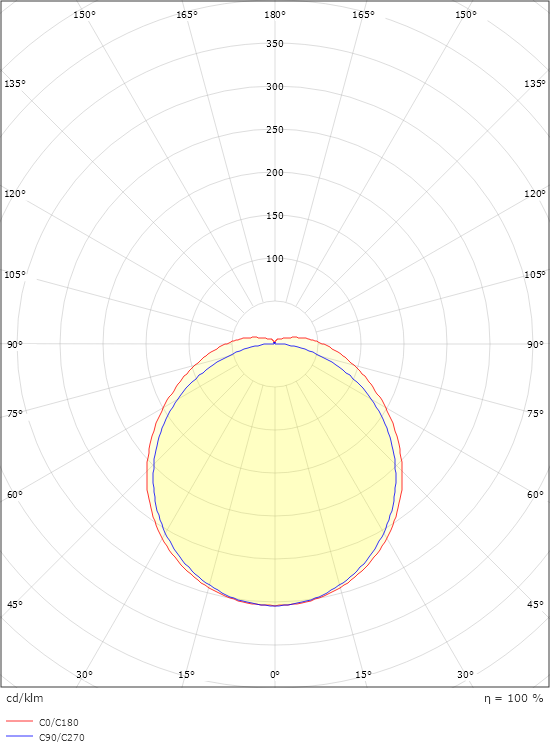

Light distribution
Direct
Optic
Opal
Beam angle
110°
UGR
UGR<25
Photobiological safety
RG 0

Control/Dimming

Type
Sensor

Protection

Luminaire class
Class I
IK Class
IK06
IP Class
IP44

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes
Sunda Hus
C+

Materials and finish

Housing
Steel, Aluminium
Colour
White (RAL 9003)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Module
1200
Connection
Screwless terminal block

Dimensions

Length (mm) L
1220
Width (mm) W
151
Height (mm) H
54
Weight (kg) gross/net
3.12 / 2.5

Packaging

Packaging dimensions (mm)
1245 x 160 x 60
