Disc 360

How to specify

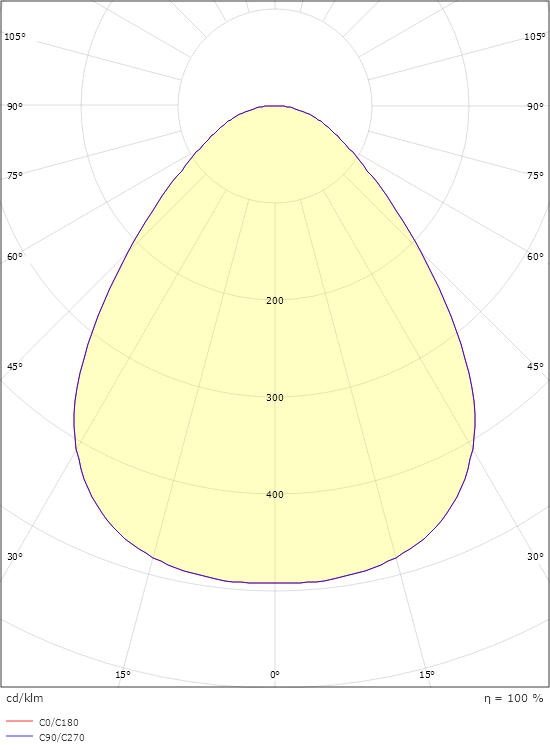

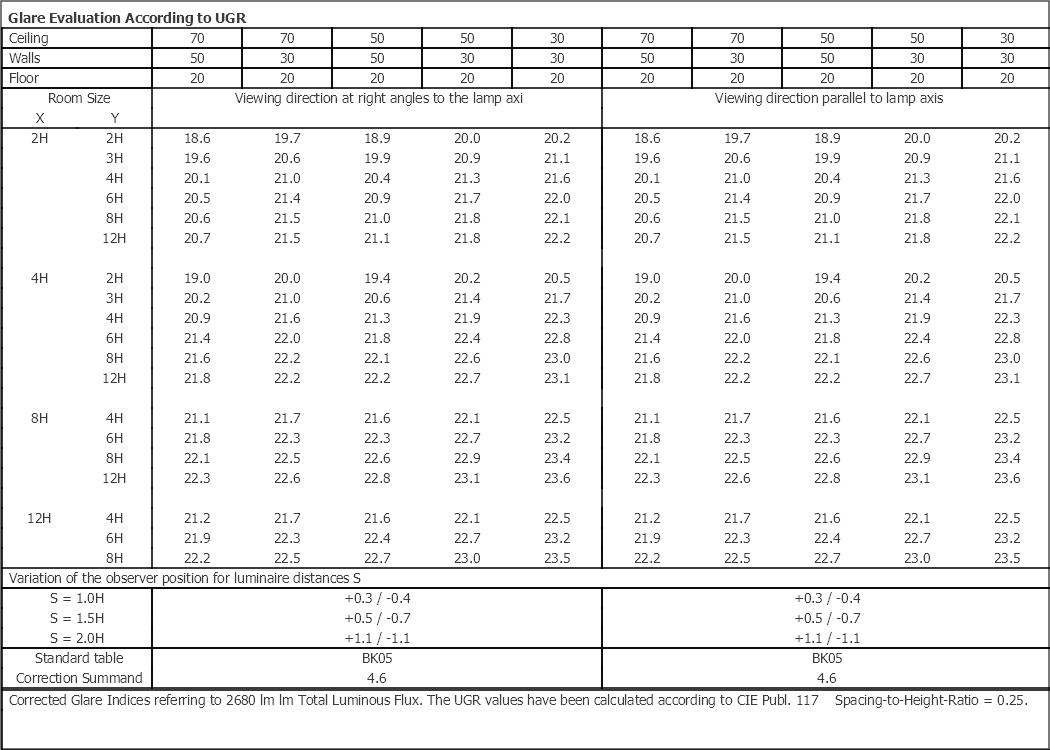

Disc 360 White 2680lm 4000K Ra>80 DALI-2, Article code: 606227, EAN: 7021986062274, IP20, IK10, Electrical: System wattage: 21W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Light source included: Yes, Luminous flux: 2680lm, Efficacy: 128 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opalprism, Beam angle: 85°, UGR: UGR<22, Visible flicker (PstLM): 0,06, Stroboscopic flicker (SVM): 0, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP20, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 57, Diameter (mm) D: 360, Weight (kg) gross/net: 2.7 / 2.5, Packaging: Packaging dimensions (mm): 375 x 380 x 60
