Econ Plus

Econ Plus White E27

Article code
171191
EAN
7021981711917

Overview

IP Class
IP44
Mounting
Surface, Indoor
  • indoor
  • ik10
  • ip44
  • klasse_2
  • ce

Tools

How to specify

Text copied to clipboard

Econ Plus White E27, Article code: 171191, EAN: 7021981711917, IP44, IK10, Electrical: Voltage: 220-240V, Light technic: Socket: E27, Light source included: No, Light distribution: Direct, Optic: Opal, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP44, Fire protection class: 850°C - 30s, Materials and finish: Housing: UV-stabilized polycarbonate, Colour: White (RAL 9003), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 92, Diameter (mm) D: 300, Weight (kg) gross/net: 1.704 / 1.245, Packaging: Packaging dimensions (mm): 305 x 305 x 95

Electrical

Voltage
220-240V

Light technic

Socket
E27
Light source included
No
Light distribution
Direct
Optic
Opal

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP44
Fire protection class
850°C - 30s

Materials and finish

Housing
UV-stabilized polycarbonate
Colour
White (RAL 9003)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

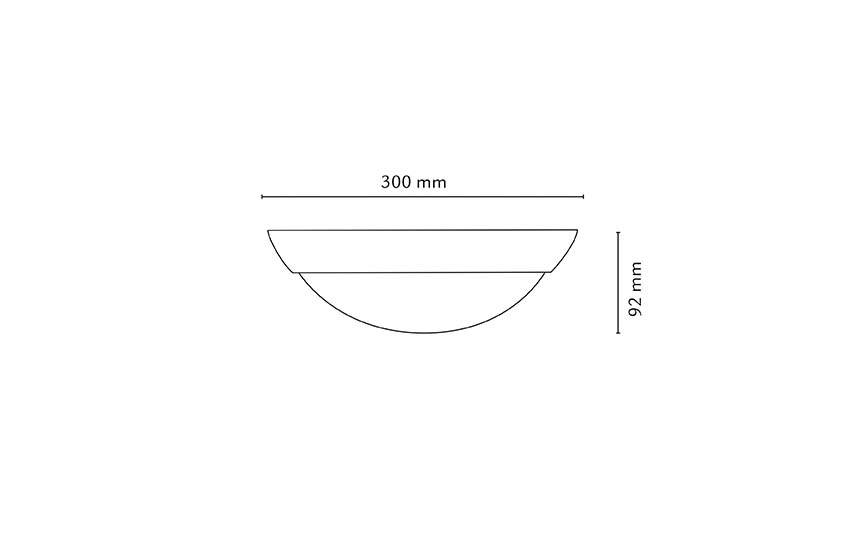

Dimensions

Height (mm) H
92
Diameter (mm) D
300
Weight (kg) gross/net
1.704 / 1.245

Packaging

Packaging dimensions (mm)
305 x 305 x 95
