Econ

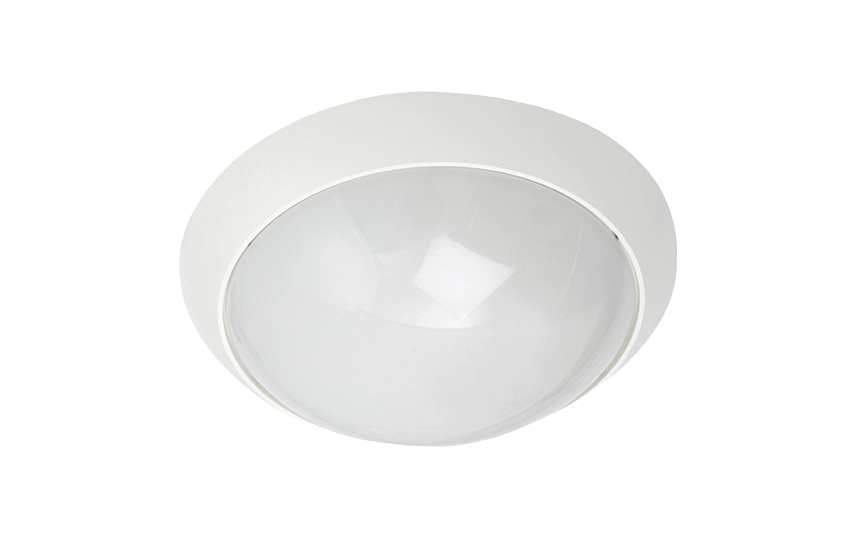

Econ Midi Alu White 2xE27 with security screw

Article code
141194
EAN
7021981411947
Back to articlelist

Overview

Wattage
Max 2x30W
IP Class
IP44
Mounting
Surface, Indoor
  • indoor
  • ik10
  • ip44
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 141194 Revit file - Generic Enok - Generic Revit file - Face Based Enok - face based

See more

Mounting instruction Econ_User Manual CE Declaration Econ E27 LED

How to specify

Text copied to clipboard

Econ Midi Alu White 2xE27 with security screw, Article code: 141194, EAN: 7021981411947, IP44, IK10, Electrical: Wattage: Max 2x30W, Voltage: 220-240V, Light technic: Socket: 2xE27, Light source included: No, Light distribution: Direct, Optic: Opal, Beam angle: 120°, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP44, Fire protection class: 850°C - 30s, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 98, Diameter (mm) D: 350, Weight (kg) gross/net: 1.747 / 1.367, Packaging: Packaging dimensions (mm): 360 x 360 x 105

Electrical

Wattage
Max 2x30W
Voltage
220-240V

Light technic

Socket
2xE27
Light source included
No
Light distribution
Direct
Optic
Opal
Beam angle
120°

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP44
Fire protection class
850°C - 30s

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

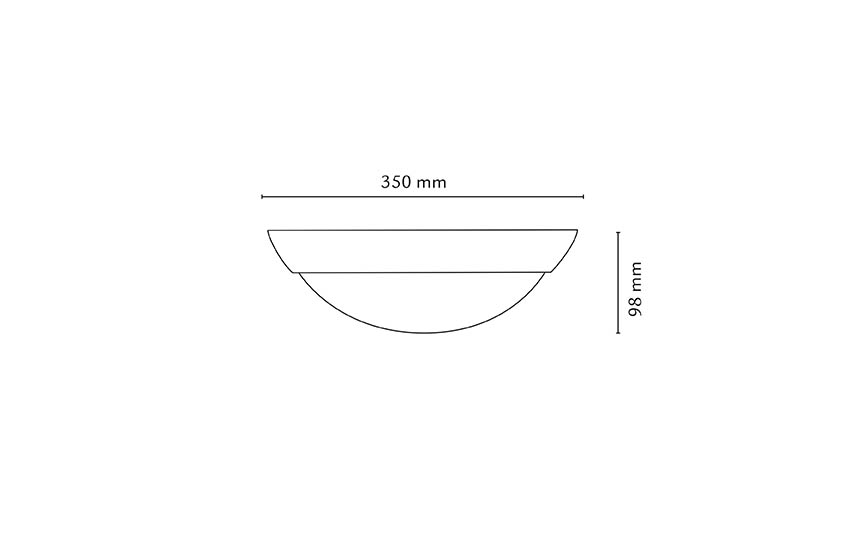

Dimensions

Height (mm) H
98
Diameter (mm) D
350
Weight (kg) gross/net
1.747 / 1.367

Packaging

Packaging dimensions (mm)
360 x 360 x 105
