Electrical
- Wattage
- Max 15W
- Voltage
- 220-240V
Light technic
- Type of light source
- LED
- Socket
- E27
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 120°
Protection
- Luminaire class
- Class I
- IK Class
- IK10
- IP Class
- IP21 ceiling / IP20 wall
- Fire protection class
- 850°C - 30s
Energy and approvals
- Breeam
- Fulfils Hea 01 for flicker free lighting
- BVB
- Yes
- Sunda Hus
- C+
Materials and finish
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- UV-stabilized polycarbonate
Mounting/Connection
- Mounting
- Surface, Indoor
- Connection
- Screwless terminal block

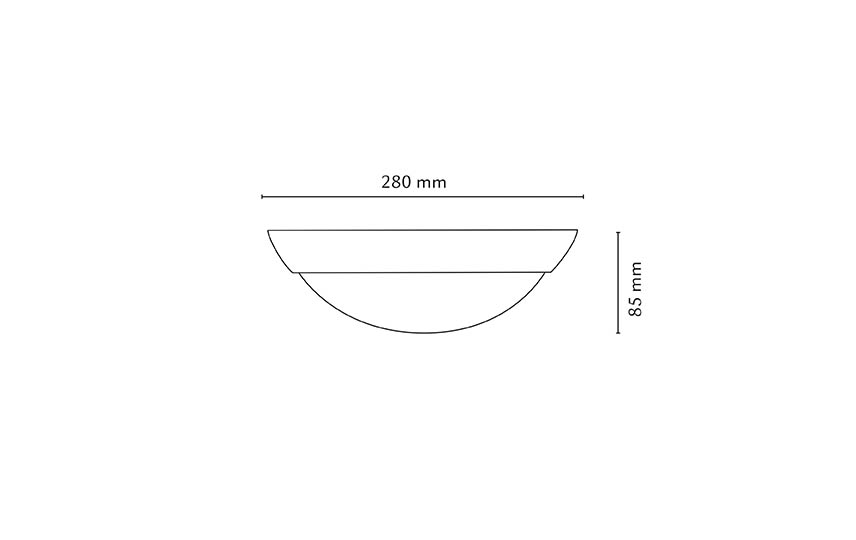

Dimensions
- Height (mm) H
- 85
- Diameter (mm) D
- 280
- Weight (kg) gross/net
- 0.924 / 0.752
Packaging
- Packaging dimensions (mm)
- 285 x 288 x 90
