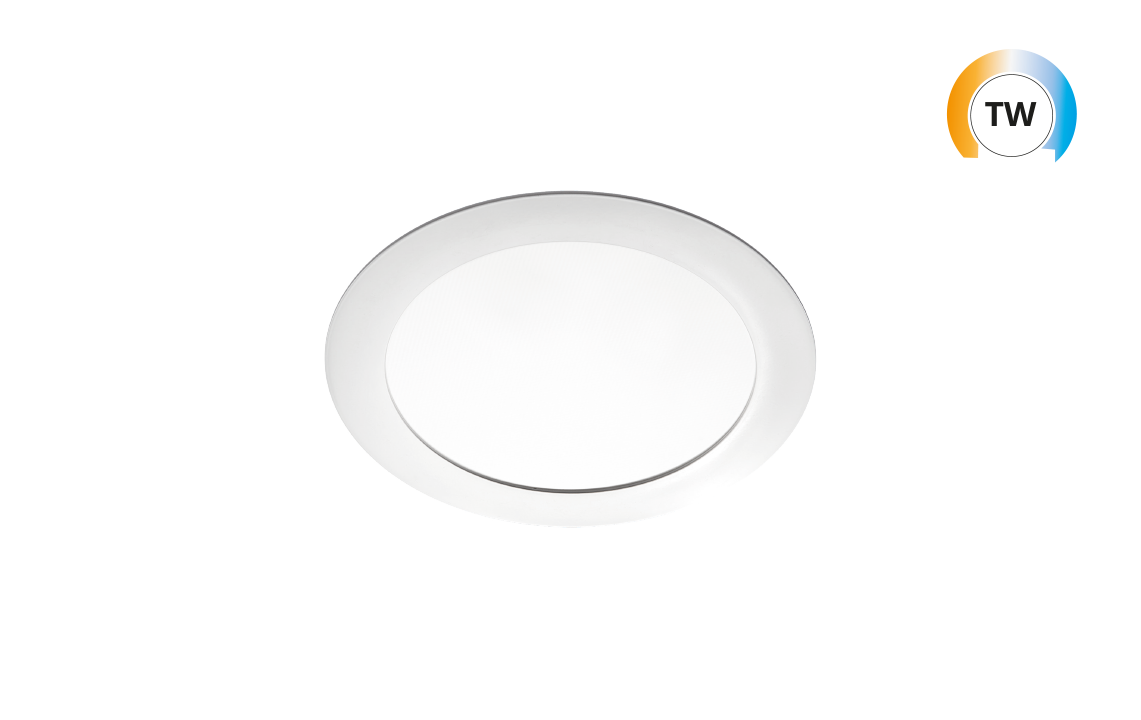

Sense Round TW

Sense TW White 255 IsoSafe 1270lm 2700-6500K Ra>80 TW DALI Type 8

Article code
212302
EAN
7021982123023
Back to articlelist

Overview

Efficacy
85 lm/W
Lumen
1270lm
IP Class
IP40/IP20
Colour temperature
2700-6500K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B20>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • el
  • ik08
  • ip20ip40
  • klasse_2
  • selv
  • tw
  • ce
  • enec

Tools

Downloads

Specification sheet 212302 Mounting instruction Sense 255 TW DT8 User manual CE Declaration Sense Round TW Relux file (rolf) 7021982123023_Sense_TW_White_255_IsoSafe_1270lm_2700-6500K_Ra_80_Tunable_White_DALI_Type_8 Eulumdat file (ldt) 7021982123023_Sense 255 TW Matt White 15W LED 2700-6500K Ra80 DALI-41487 Dialux file (uld) 7021982123023_Sense 255 TW Matt White 15W LED 2700-6500K Ra80 DALI Revit file - Generic Sense 255 - Generic Revit file - Ceiling Based Sense 255 - ceiling based ENEC Certificate Sense Round TW

How to specify

Text copied to clipboard

Sense TW White 255 IsoSafe 1270lm 2700-6500K Ra>80 TW DALI Type 8, Article code: 212302, EAN: 7021982123023, IP40/IP20, IK08, Electrical: System wattage: 15W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 10, B16: 16, C10: 16, C16: 26, Light technic: Type of light source: LED, Luminous flux: 1270lm, Efficacy: 85 lm/W, Colour temperature: 2700-6500K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>50,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opal, UGR: UGR<22, Photobiological safety: RG 0, Control/Dimming: Type: TW DALI Type 8, Protection: Luminaire class: Class II SELV, IK Class: IK08, IP Class: IP40/IP20, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White smooth (Ral 9016 gloss 30), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Recessed, Indoor, Connection: 5 pol Linect / screwless terminal block, Dimensions: Height (mm) H: 25, Diameter (mm) D: 255, Cut-out (mm): 230, Ceiling void depth (mm): 25, Weight (kg) gross/net: 1.044 / 0.839, Packaging: Packaging dimensions (mm): 260 x 260 x 65

Electrical

System wattage
15W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 10, B16: 16, C10: 16, C16: 26

Light technic

Type of light source
LED
Luminous flux
1270lm
Efficacy
85 lm/W
Colour temperature
2700-6500K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>50,000
Lifetime
L90>50,000

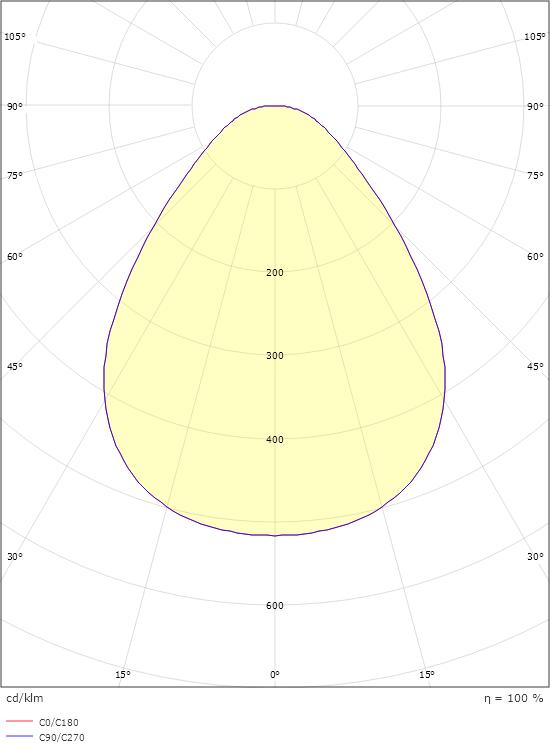

Light distribution
Direct
Optic
Opal
UGR
UGR<22
Photobiological safety
RG 0

Control/Dimming

Type
TW DALI Type 8

Protection

Luminaire class
Class II SELV
IK Class
IK08
IP Class
IP40/IP20

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White smooth (Ral 9016 gloss 30)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Recessed, Indoor
Connection
5 pol Linect / screwless terminal block

Dimensions

Height (mm) H
25
Diameter (mm) D
255
Cut-out (mm)
230
Ceiling void depth (mm)
25
Weight (kg) gross/net
1.044 / 0.839

Packaging

Packaging dimensions (mm)
260 x 260 x 65
