Tube Micro S

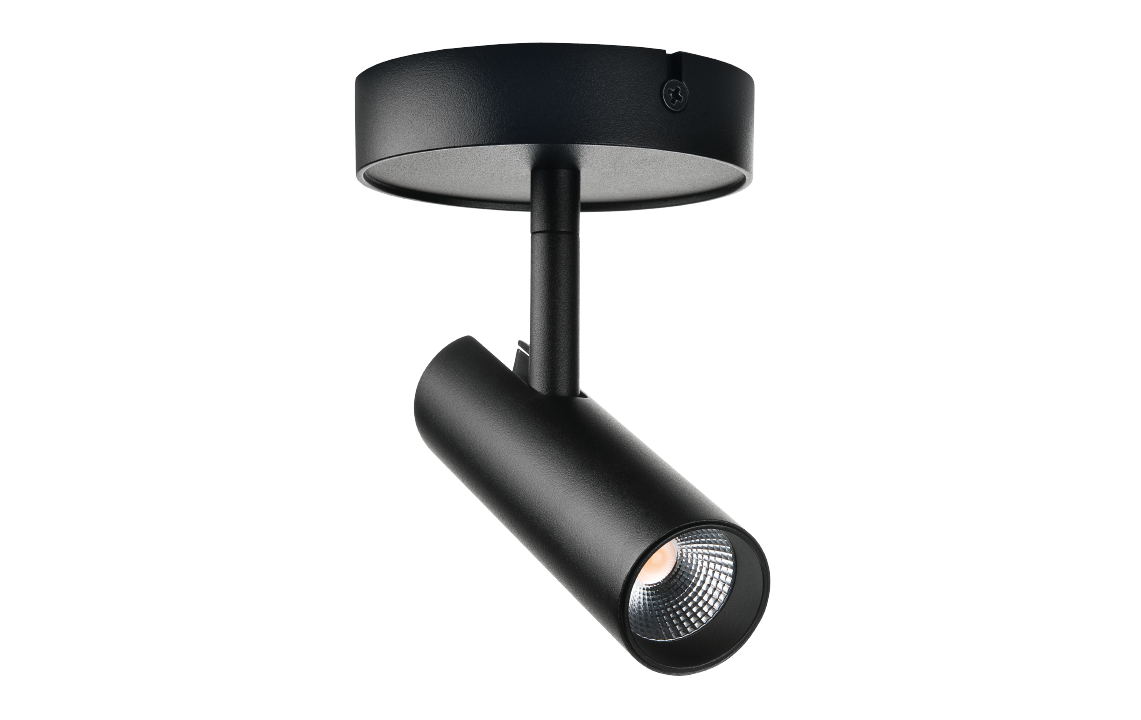

Tube Micro S Black 360lm 2700K Ra 98 Trailing edge

Article code
320809
EAN
7021983208095
Back to articlelist

Overview

Efficacy
51 lm/W
Lumen
360lm
IP Class
IP20
Colour temperature
2700K
Colour rendering (Ra)
Ra 98
Lifetime
50,000 L90/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ip20
  • klasse_2

Tools

Downloads

Specification sheet 320809 Revit file - Generic Tube Micro S - generic Revit file - Face Based Tube Micro S - face based

See more

Eulumdat file (ldt) 7021983208095_Tube Micro S Black 360lm 2700K Ra 98 Trailing edge dimming Dialux file (uld) 7021983208095_Tube Micro S Black 360lm 2700K Ra 98 Trailing edge dimming Relux file (rolf) 7021983208095_Tube_Micro_S_Black_360lm_2700K_Ra_98_Trailing_edge_dimming EPD NEPD-11148-11108_Tube-Micro-S Mounting instruction Tube Micro S_User Manual CE Declaration Tube Micro S

How to specify

Text copied to clipboard

Tube Micro S Black 360lm 2700K Ra 98 Trailing edge, Article code: 320809, EAN: 7021983208095, IP20, Electrical: System wattage: 7W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 180, B16: 290, C10: 180, C16: 290, Light technic: Type of light source: LED, Luminous flux: 360lm, Efficacy: 51 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra 98, MacAdams factor: SDCM: 2, Lifetime: L90/B10>50,000, Light distribution: Direct, Optic: Reflector, Beam angle: 36°, UGR: UGR<19, Visible flicker (PstLM): 0, Stroboscopic flicker (SVM): 0.01, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: F, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor, Dimensions: Length (mm) L: 135, Width (mm) W: 39, Height (mm) H: 25, Diameter (mm) D: 102, Weight (kg) gross/net: 0.523 / 0.428, Packaging: Packaging dimensions (mm): 185 x 106 x 106

Electrical

System wattage
7W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 180, B16: 290, C10: 180, C16: 290

Light technic

Type of light source
LED
Luminous flux
360lm
Efficacy
51 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra 98
MacAdams factor
SDCM: 2
Lifetime
L90/B10>50,000
Light distribution
Direct
Optic
Reflector
Beam angle
36°
UGR
UGR<19
Visible flicker (PstLM)
0
Stroboscopic flicker (SVM)
0.01

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
F
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor

Dimensions

Length (mm) L
135
Width (mm) W
39
Height (mm) H
25
Diameter (mm) D
102
Weight (kg) gross/net
0.523 / 0.428

Packaging

Packaging dimensions (mm)
185 x 106 x 106
