Tube Mini R

Tube Mini R Black 900lm 3000K Ra 98 Trailing edge

Article code
320699
EAN
7021983206992
Back to articlelist

Overview

Efficacy
64 lm/W
Lumen
900lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra 98
Lifetime
100,000 L90/B10>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • isosafe
  • flickerfree
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 320699 Revit file - Generic Tube Mini R - generic Revit file - Face Based Tube Mini R - face based

See more

Eulumdat file (ldt) 7021983206992_Tube Mini R Black 900lm 3000K Ra 98 Trailing edge dimming Dialux file (uld) 7021983206992_Tube Mini R Black 900lm 3000K Ra 98 Trailing edge dimming Relux file (rolf) 7021983206992_Tube_Mini_R_Black_900lm_3000K_Ra_98_Trailing_edge_dimming EPD NEPD-8543-8212_Tube-Mini-R Mounting instruction Tube Mini R _User Manual CE Declaration Tube Mini R

How to specify

Text copied to clipboard

Tube Mini R Black 900lm 3000K Ra 98 Trailing edge, Article code: 320699, EAN: 7021983206992, IP20, Electrical: System wattage: 14W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 19, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 900lm, Efficacy: 64 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra 98, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Reflector, Beam angle: 40°, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: F, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Recessed, Indoor, Dimensions: Length (mm) L: 160, Width (mm) W: 59, Height (mm) H: 160, Cut-out (mm): 83, Distance to flammable materials: 50mm, Weight (kg) gross/net: 0.74 / 0.632, Packaging: Packaging dimensions (mm): 230 x 105 x 105

Electrical

System wattage
14W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 19, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
900lm
Efficacy
64 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra 98
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000

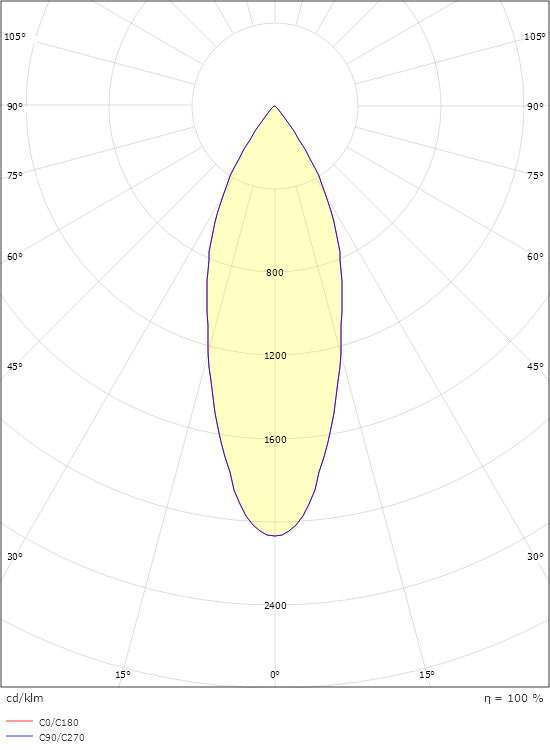

Light distribution
Direct
Optic
Reflector
Beam angle
40°

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
F
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Recessed, Indoor

Dimensions

Length (mm) L
160
Width (mm) W
59
Height (mm) H
160
Cut-out (mm)
83
Distance to flammable materials
50mm
Weight (kg) gross/net
0.74 / 0.632

Packaging

Packaging dimensions (mm)
230 x 105 x 105
