Bell

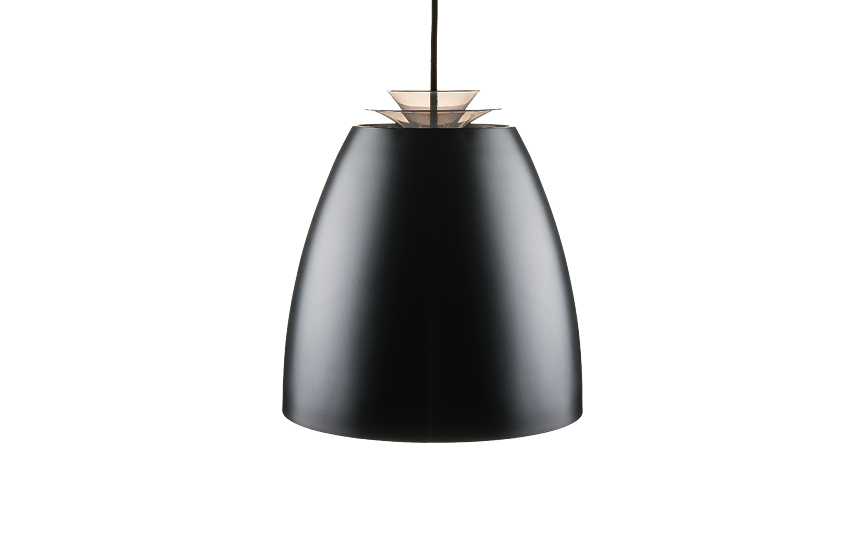

Bell Black/White Maxi 840lm 2700K Ra>90 Trailing edge

Article code
312367
EAN
7021983123671
Back to articlelist

Overview

Efficacy
56 lm/W
Lumen
840lm
IP Class
IP20
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L70/B50>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 312367 Revit file - Generic Bell Maxi - Generic Revit file - Ceiling Based Bell Maxi - ceiling based

See more

Eulumdat file (ldt) 7021983123671_Bell BlackWhite Maxi 840lm 2700K Ra90 Trailing edge dimming Dialux file (uld) 7021983123671_Bell BlackWhite Maxi 840lm 2700K Ra90 Trailing edge dimming Relux file (rolf) 7021983123671_Bell_Black_White_Maxi_840lm_2700K_Ra_90_Trailing_edge_dimming Mounting instruction Bell_User Manual CE Declaration Bell

How to specify

Text copied to clipboard

Bell Black/White Maxi 840lm 2700K Ra>90 Trailing edge, Article code: 312367, EAN: 7021983123671, IP20, Electrical: System wattage: 15W, Voltage: 220-240V, Light technic: Type of light source: LED, Socket: E27, Light source included: Yes, Luminous flux: 840lm, Efficacy: 56 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L70/B50>50,000, Light distribution: Direct/Indirect, Optic: Opal, Beam angle: 104°, UGR: UGR<19, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: G, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Colour: Black/White, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor, Module: Pendant, Cable: Cable 3m, Connection: Screwless terminal block, Dimensions: Height (mm) H: 317, Diameter (mm) D: 300, Weight (kg) gross/net: 2.47 / 1.5, Packaging: Packaging dimensions (mm): 314 x 314 x 370

Electrical

System wattage
15W
Voltage
220-240V

Light technic

Type of light source
LED
Socket
E27
Light source included
Yes
Luminous flux
840lm
Efficacy
56 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L70/B50>50,000

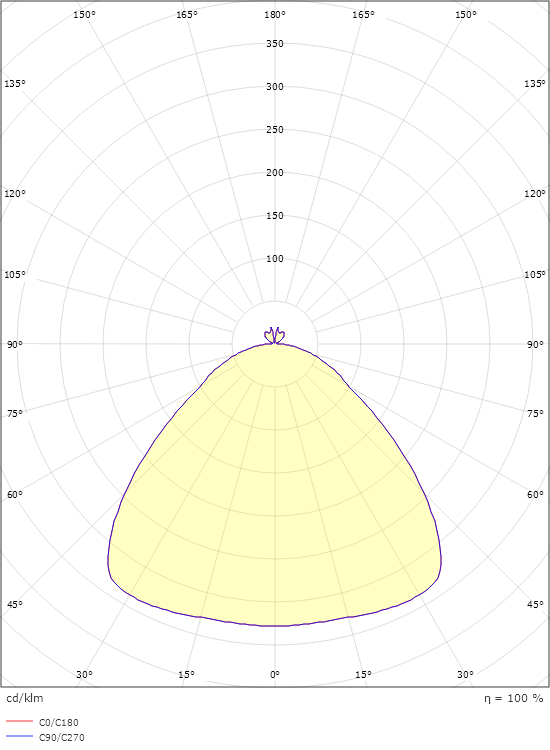

Light distribution
Direct/Indirect
Optic
Opal
Beam angle
104°
UGR
UGR<19

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
G
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel
Colour
Black/White
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor
Module
Pendant
Cable
Cable 3m
Connection
Screwless terminal block

Dimensions

Height (mm) H
317
Diameter (mm) D
300
Weight (kg) gross/net
2.47 / 1.5

Packaging

Packaging dimensions (mm)
314 x 314 x 370
