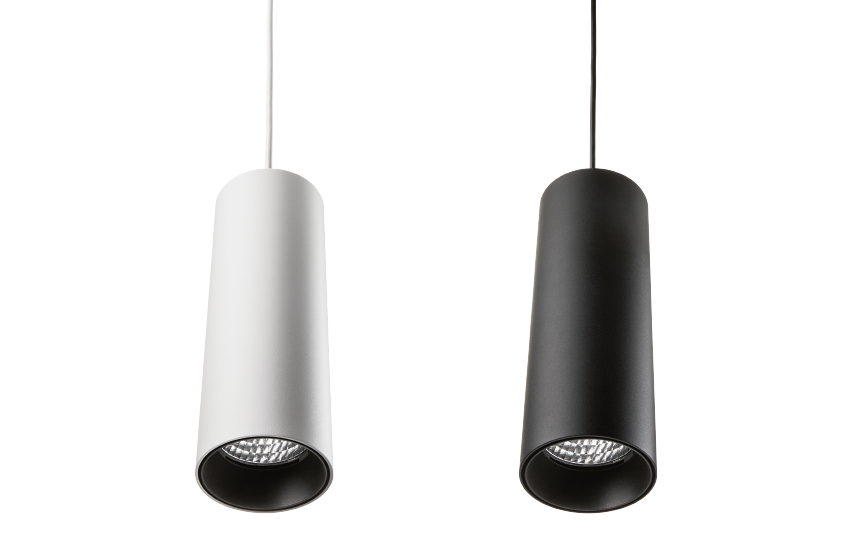

Tube Eco Pendel

Long lifespan, excellent color rendering, and high lumen output make the Tube Eco Pendant an ideal choice for shops and exhibitions. The recessed light source provides very low glare. The fixture has a minimalist and exclusive design.

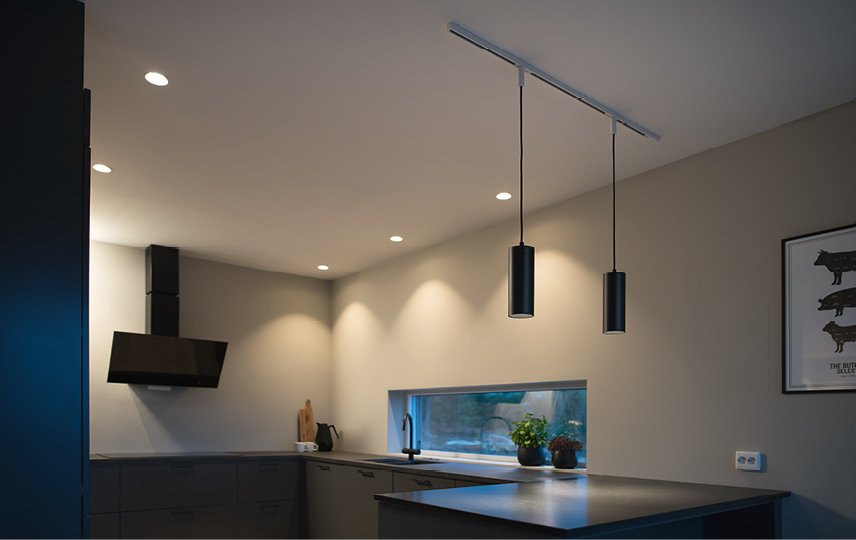

The Tube Eco Pendant can be mounted on both single-circuit and three-circuit tracks, or as a surface-mounted or recessed monopoint, depending on the chosen mounting accessory.

The Tube ECO Pendant is delivered with a 32° reflector as standard, while 50° and 17° options are available as accessories.

A honeycomb grid is included and can be attached in front of the reflector to minimize glare.

Article list

Tube Eco Pendel

Indoor Direct Surface SDCM: 2 Class II IP20 Ra>90 Beam angle: 32° L90/B10> 100,000

Filters

Color

Colour temperature

Lumen

Control gear

					Others	Tools
314490	2700K	23W	2190lm	DALI-2	95 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314486	2700K	23W	2190lm	Trailing edge	95 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314488	2700K	23W	2190lm	DALI-2	95 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314484	2700K	23W	2190lm	Trailing edge	95 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314491	3000K	23W	2350lm	DALI-2	102 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314487	3000K	23W	2350lm	Trailing edge	102 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314489	3000K	23W	2350lm	DALI-2	102 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314485	3000K	23W	2350lm	Trailing edge	102 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314495	4000K	23W	2420lm	DALI-2	105 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314494	4000K	23W	2420lm	Trailing edge	105 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314493	4000K	23W	2420lm	DALI-2	105 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314492	4000K	23W	2420lm	Trailing edge	105 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

					Others	Tools
314490	2700K	23W	2190lm	DALI-2	95 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314486	2700K	23W	2190lm	Trailing edge	95 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314488	2700K	23W	2190lm	DALI-2	95 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314484	2700K	23W	2190lm	Trailing edge	95 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314491	3000K	23W	2350lm	DALI-2	102 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314487	3000K	23W	2350lm	Trailing edge	102 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314489	3000K	23W	2350lm	DALI-2	102 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314485	3000K	23W	2350lm	Trailing edge	102 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314495	4000K	23W	2420lm	DALI-2	105 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314494	4000K	23W	2420lm	Trailing edge	105 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314493	4000K	23W	2420lm	DALI-2	105 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
314492	4000K	23W	2420lm	Trailing edge	105 lm/W, L92 x W92 x H222, Cable 3m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
3107	Zip 230V Black Adapter - Pendant	L84 x W23 x H90	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
3109	Shopline Black Pendant Adapter	L93 x W32 x H62	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
3163	Black Ceiling Box for Pendant	L135 x W114	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
312533	Shopline DALI Black Pendant Adapter	L113 x W32 x H52	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
314331	Black Round Ceiling Box for Pendant	L102 x W102 x H25	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
314334	Black Recessed Ceiling Box for Pendant	Ø94 x H51	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
3047	Zip 230V Brushed steel Adapter - Pendant	L84 x W23 x H90	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
3046	Zip 230V White Adapter - Pendant	L84 x W23 x H90	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
3108	Shopline White Pendant Adapter	L93 x W32 x H62	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
3164	White Ceiling Box for Pendant	L135 x W114	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
312532	Shopline DALI White Pendant Adapter	L113 x W32 x H52	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
314332	White Round Ceiling Box for Pendant	L102 x W102 x H25	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
314333	White Recessed Ceiling Box for Pendant	Ø94 x H51	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
