Tube Eco Pendel

Tube Eco Pendant White 2350lm 3000K Ra>90 DALI-2

Article code
314489
EAN
7021983144898
Back to articlelist

Overview

Efficacy
102 lm/W
Lumen
2350lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L90/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • el
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 314489 Mounting instruction Tube Eco Pendant Dali_User Manual Eulumdat file (ldt) 7021983144898_Tube Eco Pendant White 2350lm 3000K Ra90 DALI-2

See more

Dialux file (uld) 7021983144898_Tube Eco Pendant White 2350lm 3000K Ra90 DALI-2 Relux file (rolf) 7021983144898_Tube_Eco_Pendant_White_2350lm_3000K_Ra_90_DALI-2 EPD NEPD-9880-9869_Tube-Eco-Pendant-Dali

How to specify

Text copied to clipboard

Tube Eco Pendant White 2350lm 3000K Ra>90 DALI-2, Article code: 314489, EAN: 7021983144898, IP20, Electrical: System wattage: 23W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 31, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 2350lm, Efficacy: 102 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Reflector, Beam angle: 32°, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Optics: Aluminium / PC Polycarbonat, Mounting/Connection: Mounting: Surface, Indoor, Module: Pendant, Cable: Cable 3m, Dimensions: Length (mm) L: 92, Width (mm) W: 92, Height (mm) H: 222, Weight (kg) gross/net: 1.431 / 1.343, Packaging: Packaging dimensions (mm): 100 x 100 x 320

Electrical

System wattage
23W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 31, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
2350lm
Efficacy
102 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000

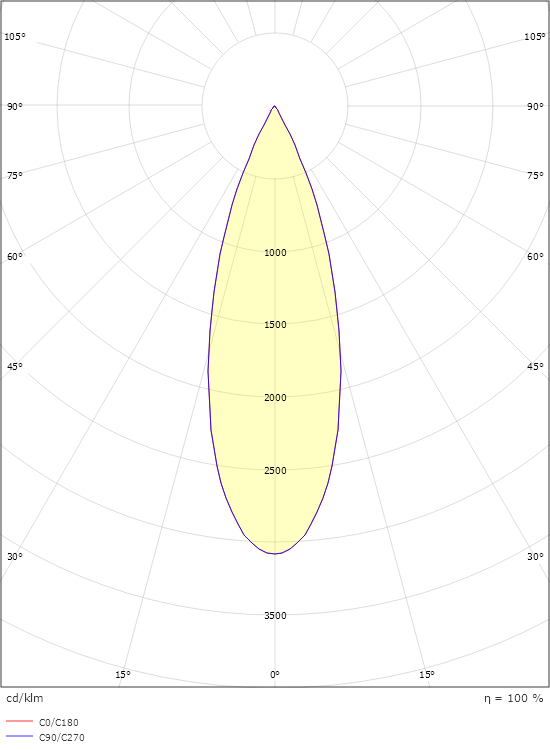

Light distribution
Direct
Optic
Reflector
Beam angle
32°

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Optics
Aluminium / PC Polycarbonat

Mounting/Connection

Mounting
Surface, Indoor
Module
Pendant
Cable
Cable 3m

Dimensions

Length (mm) L
92
Width (mm) W
92
Height (mm) H
222
Weight (kg) gross/net
1.431 / 1.343

Packaging

Packaging dimensions (mm)
100 x 100 x 320
